Icom IC-208H Service Manual

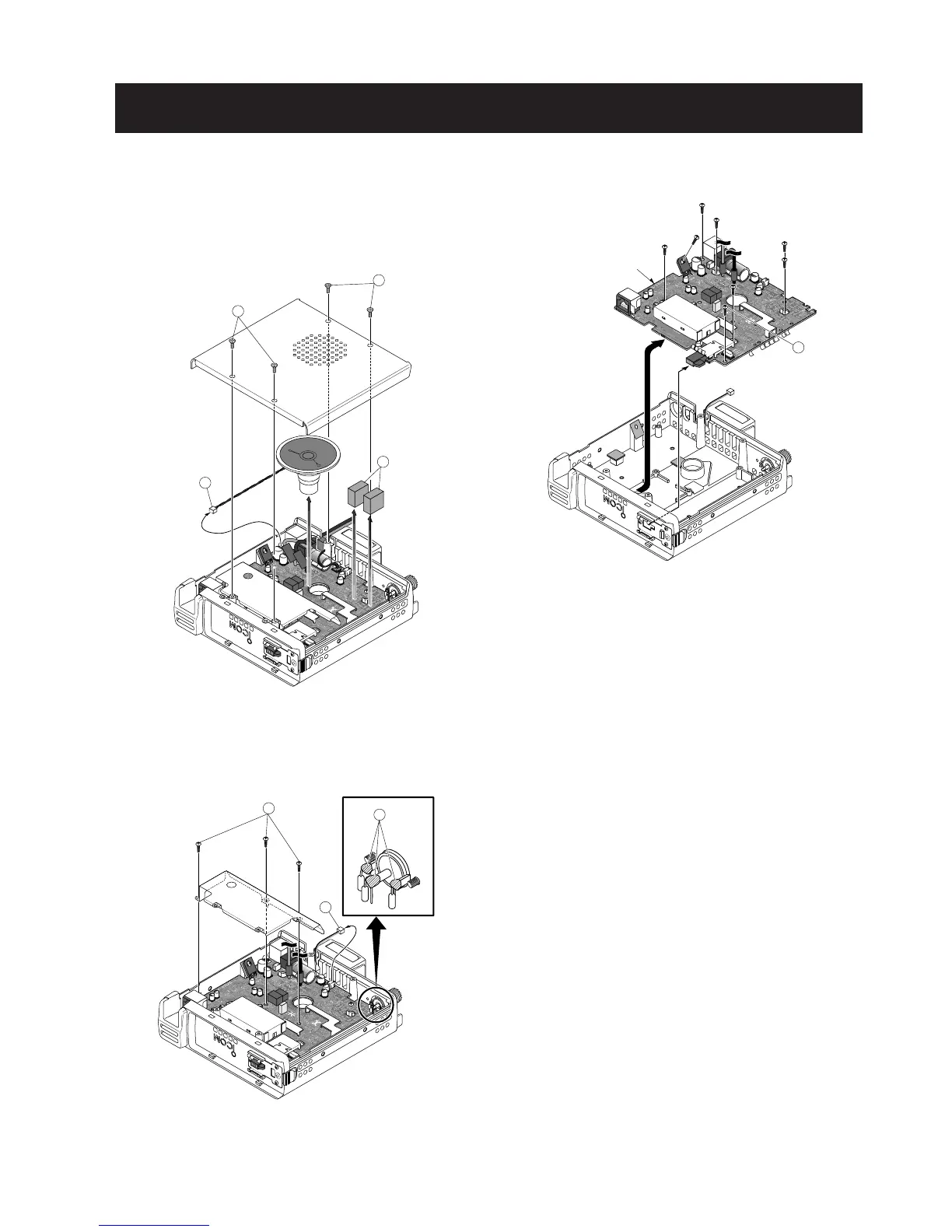

SECTION 3 DISASSEMBLY INSTRUCTIONS
• Removing the MAIN unit
➀ Unscrew 4 screws A, and remove the cover.
➁ Disconnect the cable B from J505, and remove the
speaker.
➂ Remove 2 sheets c.
➆ Unscrew 8 screws G, and remove the MAIN unit.
J505J505
B
C
A
A
➃ Unsolder 3 points D.
➄ Disconnect the cable E from J1.
➅ Unscrew 3 screws F, and remove the cover.
J1J1
F
D
E
G
MAIN UNIT
3 - 1
