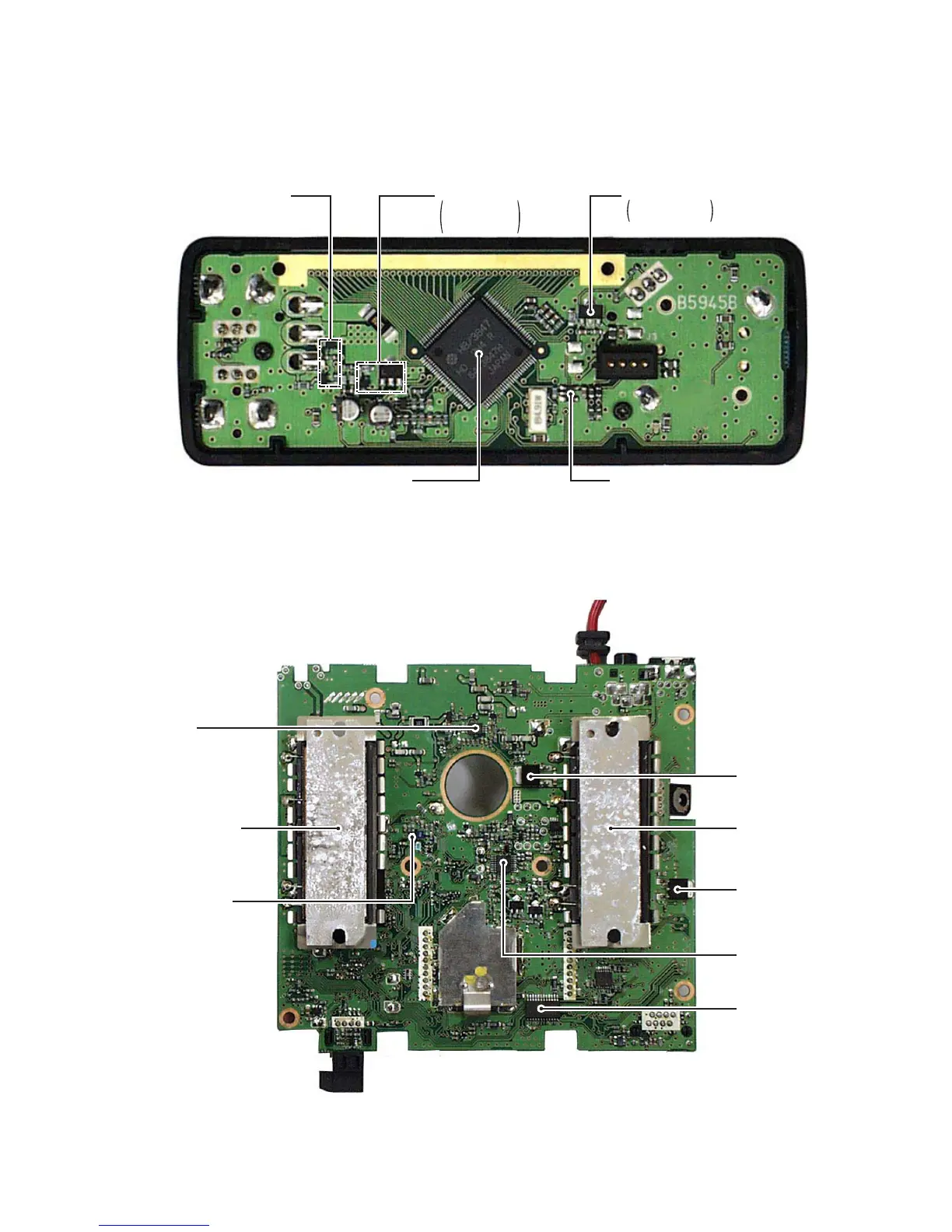

Icom IC-208H - CONTROL UNIT BOTTOM VIEW; MAIN UNIT BOTTOM VIEW

• CONTROL UNIT (BOTTOM VIEW)
Color controller
(Q6,Q7: 2SC4116)
Control unit CPU
(IC6: HD6433842RB36H)
Reset IC
(IC2: S-80945CLMC-G7F)
+5V regurator
IC5: TA78L05F
D4: MA8062
+8V regurator
Q1: 2SC4116
Q3: 2SA1734
D5: MA8068
Color controller
(Q6, Q7: 2SC4116)
Control unit CPU
(IC6: HD6433842RB36H)
Reset IC
(IC2: S-80945CLMC-G7F)
+5V regulator
IC5: TA78L05F
D4: MA8062
+8V regulator
Q1: 2SC4116
Q3: 2SA1734
D5: MA8068
• MAIN UNIT (BOTTOM VIEW)
+8V regurator
(IC504: TA7808F)
+5V regurator
(IC503: TA7805F)
D/A converter
(IC4: M62363FP-650C)
IF IC
(IC8: TA31136FN)
APC controller
(IC15: NJM3404AV)
1st mixer [UHF band]
(Q35: 3SK299)
PA module [UHF band]
(IC14: S-AU82L)
PA module [VHF band]
(IC13: S-AV32)
+8V regulator
(IC504: TA7808F)
+5V regulator
(IC503: TA7805F)
D/A converter
(IC4: M62363FP-650C)
FM IF IC
(IC8: TA31136FN)
APC controller
(IC15: NJM3404AV)
1st mixer [UHF band]
(Q35: 3SK299)
PA module [UHF band]
(IC14: S-AU82L)
PA module [VHF band]
(IC13: S-AV32)
2 - 2
