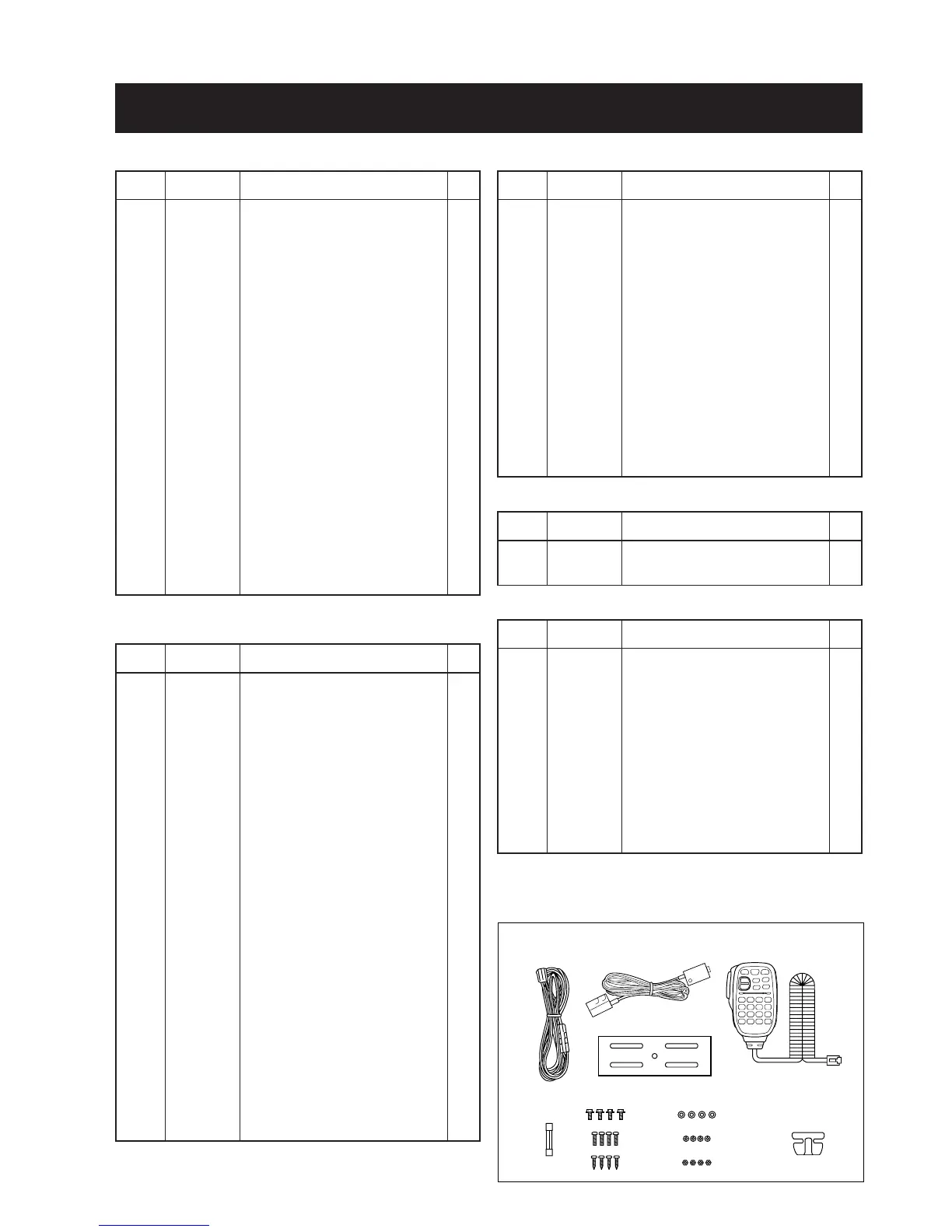

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
J1 6510004880 Connector MR-DS-E 01 1
SP1 2510001160 Speaker 057P0802 1
MF1 2710000760 Fan FD1240107B-1N 1
MP1 8010019240 2633 chassis 1
MP2 8930059790 2633 SP rubber 1
MP3 8930041552 1893 OPC plate-2 1
MP4 8930041560 1893 release button 1
MP5 8810008660 Screw PH BT M3 × 8 NI-ZU 1
MP6 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP7 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP8 8810008660 Screw PH BT M3 × 8 NI-ZU 6
MP9 8810009610 Screw FH M2.6 × 6 ZK 4
MP10 8110005751 1729 fan cover-1 1
MP11 8810009110 Screw PH M2.6 × 16 ZK 4
MP12 8810009560 Screw PH BT M2 × 6 ZK 3
MP13 8110007950 2633 cover 1
MP14 8930003170 60 saran net 1
MP17 8930041870 Spring (AC) 1
MP19 8930039610 Thermally sheet (C) 1
MP20 8930039610 Thermally sheet (C) 1
MP21 8930043010 1893 sheet 1
MP24 8510015370 2633 shield cover 1
MP26 8930060350 Thermally sheet (AK) 1
MP27 8930060350 Thermally sheet (AK) 1
WS1 8600036880 SP cable 1
[CHASSIS PART]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
R1 7210002920 Variable resistor EVU-F2AF20B55 1
R5 7210002920 Variable resistor EVU-F2AF20B55 1
S1 2240000150 Switch JRS0000-1401 1
DS1 5030002580 LCD L2-0736TAY 1
DS22 5040002920 LED CV1074 1
EP18 8930060040 LCD contact SRCN-2633-SP-N-W 1
MP1 8210019850 2633 front panel (B) 1
MP2 8210019540 2633 rear panel 1
MP3 8610011290 Knob N297 1
MP4 8610011300 Knob N298 1
MP5 8610011280 Knob N299 1
MP6 8310057030 2633 key-top 1
MP7 8210019550 2633 D-reflector 1
MP8 8930059740 2633 power button 1
MP9 8930059730 2633 2-key 1
MP10 8610011310 Knob K299 1
MP11 8610011350 Knob K299 (A) 1
MP12 8610011340 Knob K299 (B) 1
MP13 8610011330 Knob K299 (C) 1
MP14 8610011320 Knob K299 (D) 1
MP15 8310057020 2633 window plate 1
MP16 8930060050 2633 window sheet 1
MP17 8930060060 2633 D-filter 1
MP18 8930060070 2633 jog sheet 1
MP19 8930060080 2633 A-sheet 1
MP20 8930060090 2633 key sponge 1
MP21 8930059780 2633 LCD plate 1
MP22 8930006440 Spring (F) 1
MP25 8810009220 Screw PH B0 M2 × 8 ZK 2
MP26 8810008990 Screw PH BT M2 × 10 ZK 2
[CONTROL UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
J502 6510023110 Connector 3008L-8P8C 1
J503 6510019321 1729 rear connector-1 1
J504 6510023160 Connector DN-508B-6 1
J506 6510023590 Connector HSJ2000-01-010 1
W501 8900004880 Cable OPC-465 1
EP10 6910000660 Bead FS0H082RL 1
EP11 6910000660 Bead FS0H082RL 1
MP1 8930059770 2633 M-holder 2
MP2 8510011290 1893 A-CPU plate 1
MP3 8510011300 1893 moduler plate 1
MP4 8930059750 2633 H.V. plate 1
MP5 8930060270 2633 M-sheet 1
MP6 8510015470
2633 C-shield plate [USA]
1
8510015410
2633 A-shield plate except [USA]
1
MP7 8930060260 2633 spring 1
MP8 8510015460 2633 B-shield plate 1
MP9 8510015440
2633 connector plate [USA] only
1
MP10 8930060260 2633 spring 1
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MP1 8510015420 2633 shield case assembly 1
MP2 8510015270 2633 VCO case 1
MP3 8510015280 2633 VCO cover 1
[VCO BOARD]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
F1 5210000080 Fuse FGB 20A 1
MC1 0880000980 Microphone HM-133 1
W1 8900010990 Cable OPC-1132 1
W2 8900012250 Cable OPC-600R [USA] 1
8900007490 Cable OPC-600 except [USA] 1
MP1 8010019260 2633 mobile bracket 1
MP3 8820000530 Flange bolt M4 × 8 NI 4
MP4 8810000470 Screw PH M5 × 12 (+
-
)4
MP5 8810000950 Screw A M5 × 16 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Spring washer M5 4
MP8 8830000120 Nut M5 4
MP9 8930007300 Mic hanger 1
[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations BT,B0: Self-tapping
PH: Pan head FH: Flat head
ZK: Black BS: Brass
NI: Nickel NI-ZU: Nickel-Zinc
