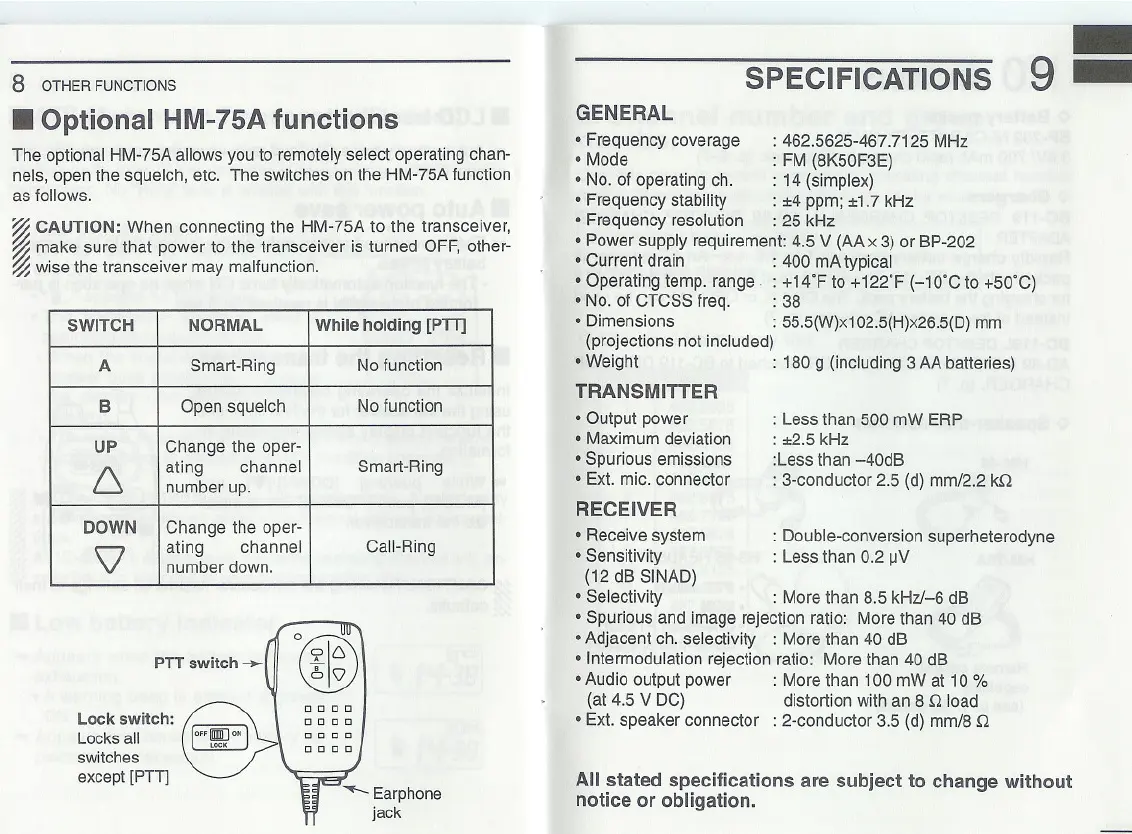

8 OTHER FUNCTIONS
. Optional HM-75A functions
The optional HM-75A allows you to remotely select operating chan-
nels, open the squelch, etc. The switches on the HM-75A function
as follows.
~CAUTION: When connecting the HM-75A to the transceiver,
~ make sure that power to the transceiver is turned OFF, other-
~ wise the transceiver may malfunction.
PTTswitch ~
O@
Lock switch:
Locks all
switches
except [PH]
911SPECI FICATIONS
GENERAL
. Frequencycoverage: 462.5625-467.7125 MHz
. Mode : FM(8K50F3E)
. No.of operatingch. : 14(simplex)
.Frequencystability: :1:4ppm;:1:1.7kHz
. Frequencyresolution: 25 kHz
. Powersupply requirement:4.5 V (AAx 3) or BP-202
. Currentdrain : 400mAtypical
. Operatingtemp.range: +14'F to +122'F (-10'C to +50'C)
. No.of CTCSSfreq. : 38
. Dimensions : 55.5(W)x102.5(H)x26.5(D)mm
(projections not included)
. Weight : 180g (including3AAbatteries)
TRANSMITTER
.Outputpower
. Maximum deviation
. Spurious emissions
. Ext. mic. connector
: Less than 500 mW ERP
: :1:2.5kHz
:Less than -40dB
: 3-conductor 2.5 (d) mm/2.2 kQ
RECEIVER
. Receive system
. Sensitivity
(12 dB SINAD)
.Selectivity : More than 8.5 kHz/-6 dB
.Spurious and image rejection ratio: More than 40 dB
.Adjacent ch. selectivity: More than 40 dB
. Intermodulation rejection ratio: More than 40 dB
.Audio output power : More than 100 mW at 10 %
(at 4.5 V DC) distortion with an 8 Q load
.Ext. speaker connector: 2-conductor 3.5 (d) mm/8 Q
: Double-conversion superheterodyne
: Less than 0.2 ~V
All stated specifications are subject to change without
notice or obligation,
SWITCH NORMAL
While holding [PTT]
A
Smart-Ring
Nofunction
B
Opensquelch
Nofunction
UP
Change the oper-
6
ating
channel
Smart-Ring
numberup.
DOWN
Change the oper-
\l
ating
channel
Call-Ring
number down.
