Icom IC-7100 Service Manual

4-9

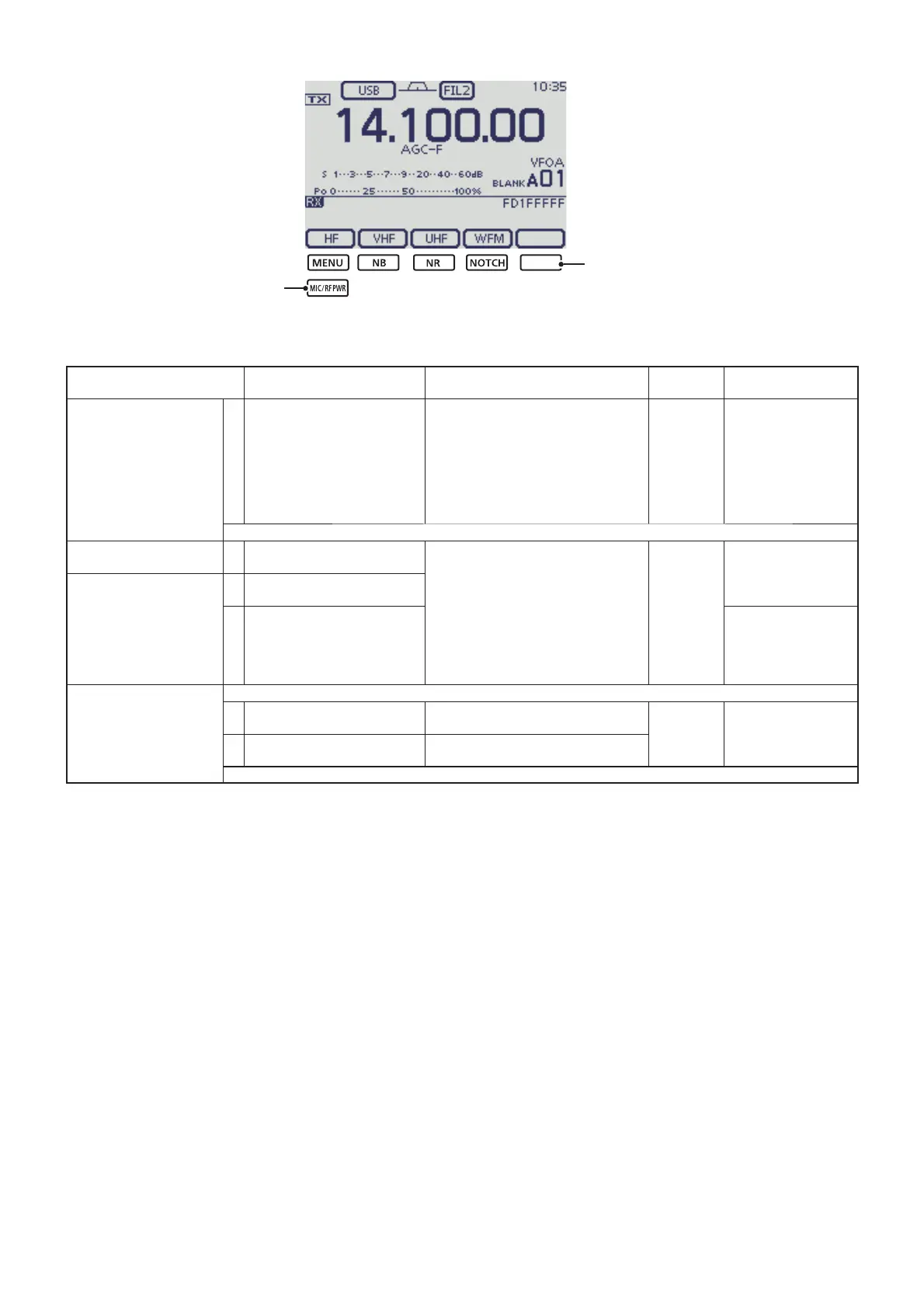

ADJUSTMENT ITEM TRANSCEIVER'S CONDITION OPERATION
ADJUST
POINT
VALUE
PREPARATION 1 • Frequency: 14.1515 MHz
• Receive
1) Connect the SSG to [ANT1], and
then set it as;
Frequency : 14.1515 MHz
Level :
+34 dBµ (–73 dBm)
Modulation: None
2) Connect the millivoltmeter and a
speaker to [EXT-SP].
3) Push [MENU].
–
Push [NOTCH].
(To enter to the receive
adjustment menu.)
Push [MENU] to enter the Receive adjustment menu.
RX-IFT 2 • Display: "RX-IFT"
• Receive
––
Push [SET].
(A beep sounds, and
then another beeps
sound 5 sec. later)
RX TOTAL GAIN 3 • Display: "Total Gain HF POFF"
• Receive
4 • Display: "Total Gain HF PON"
• Receive
Push [SET].
(A beep sounds, and
then another beeps
sound 20 to 30 sec.
later)
S-METER NOTE: DO NOT change the SSG output level until the beep sounds.
5 • Display: "S9 Level HF"
• Receive
–
–
Push [SET].
(A beep sounds, and
then another beep
sounds 1 sec. later)
6 • Display: "S9+60 Level HF"
• Receive
• Set the SSG as;
Level :
+90 dB µ (–17 dBm)
Automatically returns to the receive adjustment menu.
SET
Reterns to the adjustment screen.
Stores the value and move to the next item.
4-9 RECEIVE ADJUSTMENTS (HF BAND)
1) Set or modify the adjustment value as specifi ed by rotating [MAIN DIAL].
2) Push [SET] to store the value.

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
