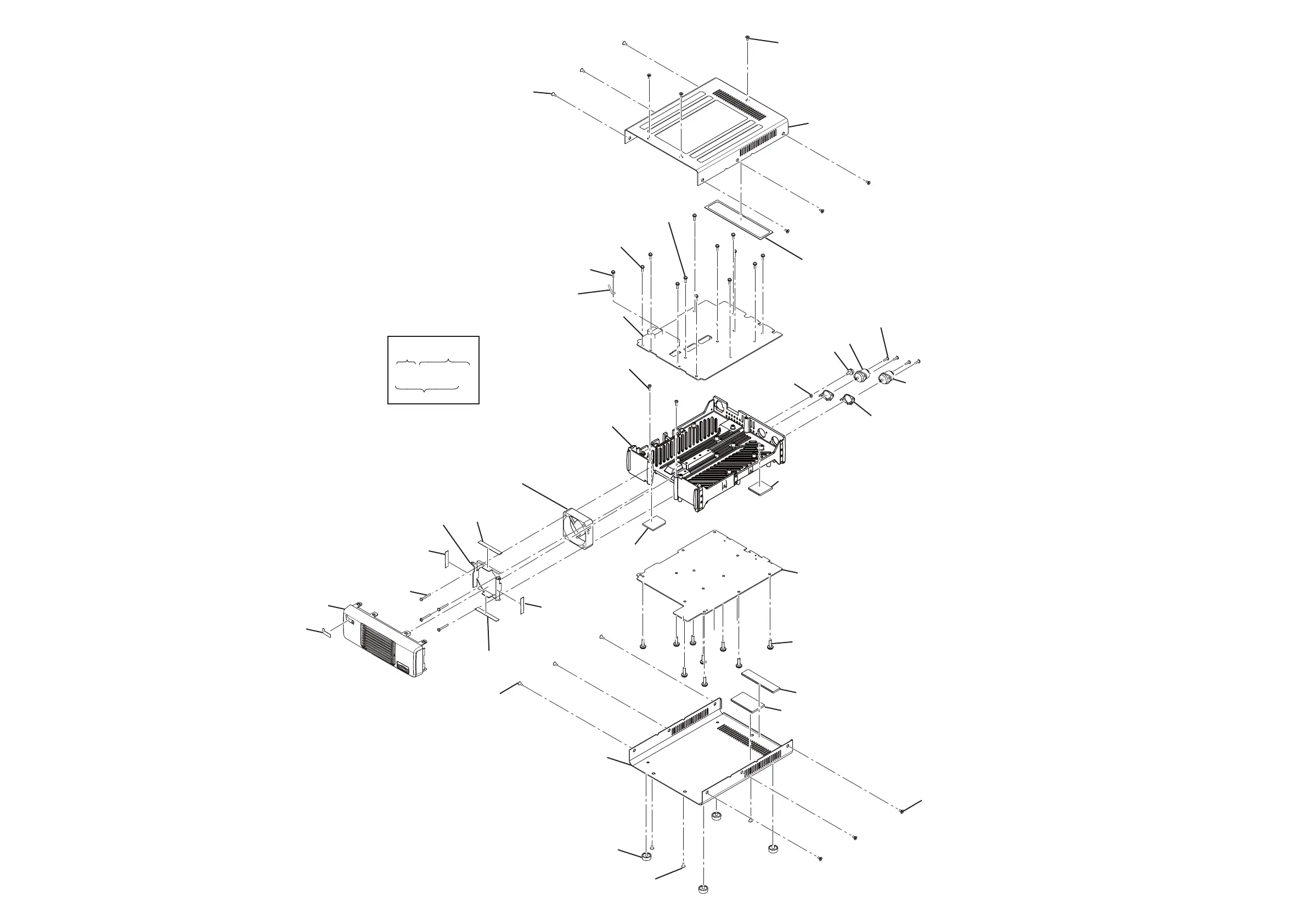

Icom IC-7100 Service Manual

6-4
MP38(CHASSIS)
(8930088330)
MP41(CHASSIS)
(8930064840)
MF1(CHASSIS)
(2710000790)
MP45(CHASSIS)
(8930057790)
MP46(CHASSIS)
(8930057790)
MP5(CHASSIS)
(8930086820)
MP42(CHASSIS)
(8930064840)
MP1(CHASSIS)
(8010022550)
PA UNIT
MAIN UNIT
MP14×11(CHASSIS)
(8810008661)
MP35(CHASSIS)
(6910008240)
MP24(CHASSIS)
(8810003171)
MP11×2(CHASSIS)
(8930087840)
MP22×2(CHASSIS)
(8810008661)
MP23×4(CHASSIS)
(8810010780)
MP13×4(CHASSIS)
(8930079690)
MP18×3(CHASSIS)
(8810009061)
MP3(CHASSIS)
(8110010370)
MP4(CHASSIS)
(8210028270)
MP6(CHASSIS)
(8310081740)
MP28(CHASSIS)
(8930068370)
MP43(CHASSIS)
(8930048971)
MP15×12(CHASSIS)
(8810008661)
MP16×4(CHASSIS)
J2(CHASSIS)
(6510028410)
J1(CHASSIS)
(6510028410)
MP20(CHASSIS)
(8850000140)
MP19(CHASSIS)
(8820000530)
MP40(CHASSIS)
(8930063000)
MP26×2(CHASSIS)
(8810003381)
MP17×3(CHASSIS)
(8810009061)
MP18×3(CHASSIS)
(8810009061)
MP12(CHASSIS)
(8930066431)
MP2(CHASSIS)
(8110010360)
MP17×3(CHASSIS)
(8810009061)
MP18×3(CHASSIS)
(8810009061)
MP1 (CHASSIS)
(1234567890)
Ref. No.
Legend:
Unit Name
Parts No.
• CHASSIS

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
