Icom IC-7100 Service Manual

4-3
ADJUSTMENT ITEM TRANSCEIVER'S CONDITION OPERATION
ADJUST
POINT
VALUE
ID REFERENCE
VOLTAGE LOAD
1 • Display: "13.8 SET"
• Power supply voltage: 13.8 V
– – Push [SET].
(A beep sounds,
and then another
beeps sound 0.5 sec.
later. Then the next
adjustment item is
selected.)
ID REFERENCE SET 2 • Display: "ID HF+1.0A" Push [SET].
(The next adjustment
item is selected.)
3 • Display: "ID V/UHF+1.0A"
4 • Display: "DID +0.7A"

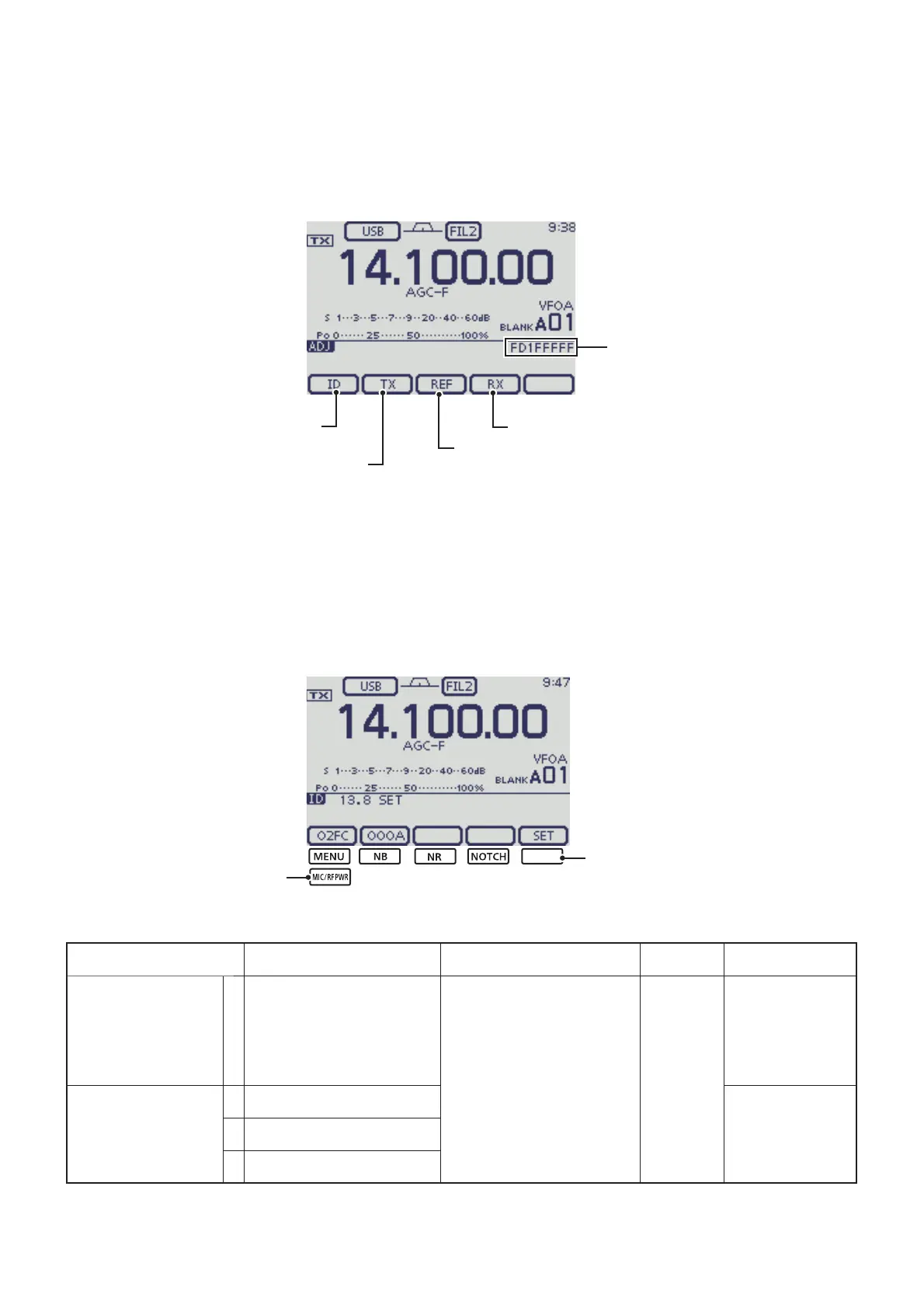

4-3 ADJUSTMENTS IN THE ADJUSTMENT MODE
4-4 ID ADJUSTMENTS
1) Connect the short plug (Page 4-1) to [REMOTE], and while holding down [MIC/RF PWR] and [SPEED/PITCH], turn ON the
power to enter the Adjustment mode.
2) The main adjustment menu appears.
1) Remove the short plug from [REMOTE], and then turn OFF the power.
2) Turn ON the power again.
Select the ID adjustment
(Page 4-3 and 4-4)
Select the transmit adjustment (Page 4-5)
Select the reference frequency (Page 4-7)
Select the receive adjustment (Page 4-8)
Adjustment value
SET
Reterns to the adjustment screen.
Stores the value and move to the next item.
M MAIN ADJUSTMENT MENU SCREEN
M ENTERING THE ADJUSTMENT MODE
M QUITING THE ADJUSTMENT MODE
1) Set or modify the adjustment value as specifi ed by rotating [MAIN DIAL].
2) Push [SET] to store the value.

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
