ADVANCED OPERATIONS
Operating CW

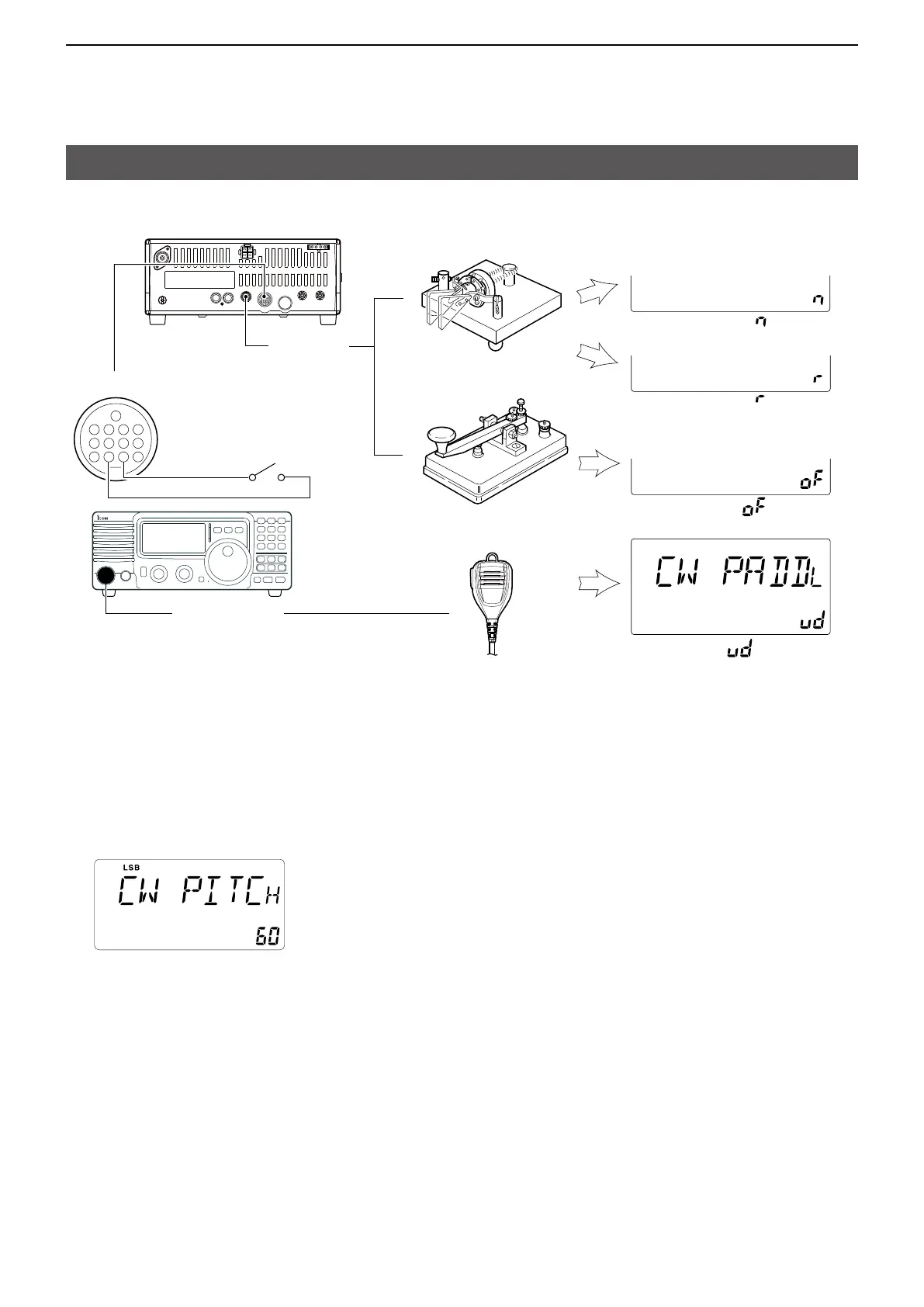

D Connection for CW
4
8
12
1 2 3
765
9
10 11
13
[ELEC KEY]
[Microphone]
Microphone
Straight key
Paddle
[ACC] (Rear panel view)
LYou can switch TX/RX with an
external switch through pins No� 2
and 3 of the [ACC] connector�
LSee the next page for details�
Key Type settings
(See the next page�)
(Default)
D Setting the CW pitch control
You can set the received CW audio pitch and the CW
side tone to suit your preference, without changing the
operating frequency�
1� Hold down [SET] for 1 second to enter the Quick
Set mode�
2�
3� Rotate [MAIN DIAL] to set the pitch to between 30
(300 Hz) and 90 (900 Hz)�
4� Push [SET] to exit the Quick Set mode�
