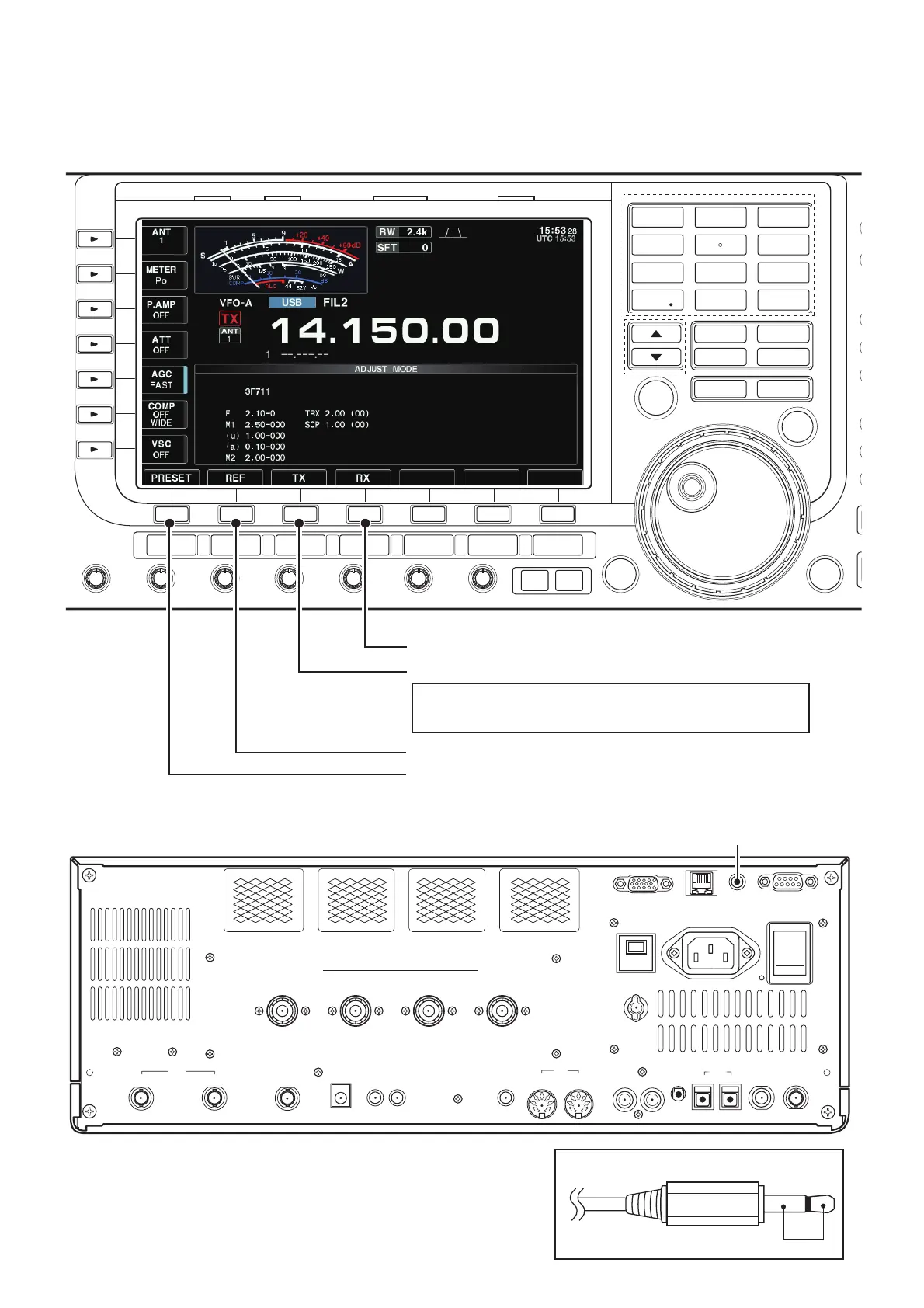

<Main menu>
<Rear view>
CAUTION: When a TX adjustment item is selected,
the transceiver transmits automatically.
Reference frequency adjustment (page 4-17)
Transmitter adjustment (page 4-13)
Receiver adjustment (page 4-15)
Other adjustment (page 4-17)
Short plug
(Short)
• Short plug
3.5 mm (1/8’’ ) monoral plug
4-7 AUTOMATIC ADJUSTMENTS
¤ ENTERING AUTOMATIC ADJUSTMENT MODE
1) Connect the short plug to the [REMOTE] terminal (see the illust bellow).
2) Push and hold [SSB]+[CW] keys and turn the power ON, then the adjustment main menu appears.
3) When the automatic adjustments are fi nished, turn the power OFF to quit the adjustment mode.
4 - 12
• CONNECTION
To Next Page
