Icom IC-7700

6 - 7
MP7(PA)
MP11(CH)
MP10(CH)
EP1(REG)
MP151(CH)
MP23(CH)
MF1(REG)
MP6(CH)
MP403(DCD)
MP201(DCD)
MP401(DCD)
MP601(DCD)
MP801(DCD)
MP603(DCD)
MP203(DCD)
MP10(PA)
MP6(PA)
J51(ANT)
J61(ANT)
J71(ANT)
J81(ANT)
MP8(PA)
MP6(TUN)
CTRL BOARD
FILTER UNIT
ANT-SW BOARD
PA200W BOARD
LOGIC UNIT
DC-DC UNIT
MP19(CH)
MF3(TUN)
MF1(TUN)
MP3(TUN)x4
MP2(TUN)x2
MP1(TUN)x2
MF2(TUN)
MF5(TUN)
MP4(TUN)
MP1(CH)
MP4(CH)
MP9(PA)
MF1(PA)
MF2(PA)
SP1(CH)
MP5(CH)
MP187(CH)x4
MP149(CH)x3
MP2001(LG)x2
MP193(CH)x2
MP193(CH)x2
UNIT ABBREVIATIONS:
FR: FRONT UNIT
CH: CHASSIS
MAN: MAIN UNIT
LG: LOGIC UNIT
DIS: DISPLAY BOARD
JCK: JACK BOARD
LED: BOARD
MIC: MIC BOARD
PBT: PBT BOARD
PIT: PITCH BOARD
TUN: TUNER UNIT
ANT: ANT-SW BOARD
CTL: CTRL BOARD
DCD: DC-DC UNIT
DGL: DIGISEL UNIT
FIL: FILTER UNIT
NET: NETWORK BOARD
PA: PA UNIT
PA2: PA200W BOARD
PLL: PLL UNIT
REG: REG UNIT
RF: RF UNIT
SCP: SCOPE UNIT

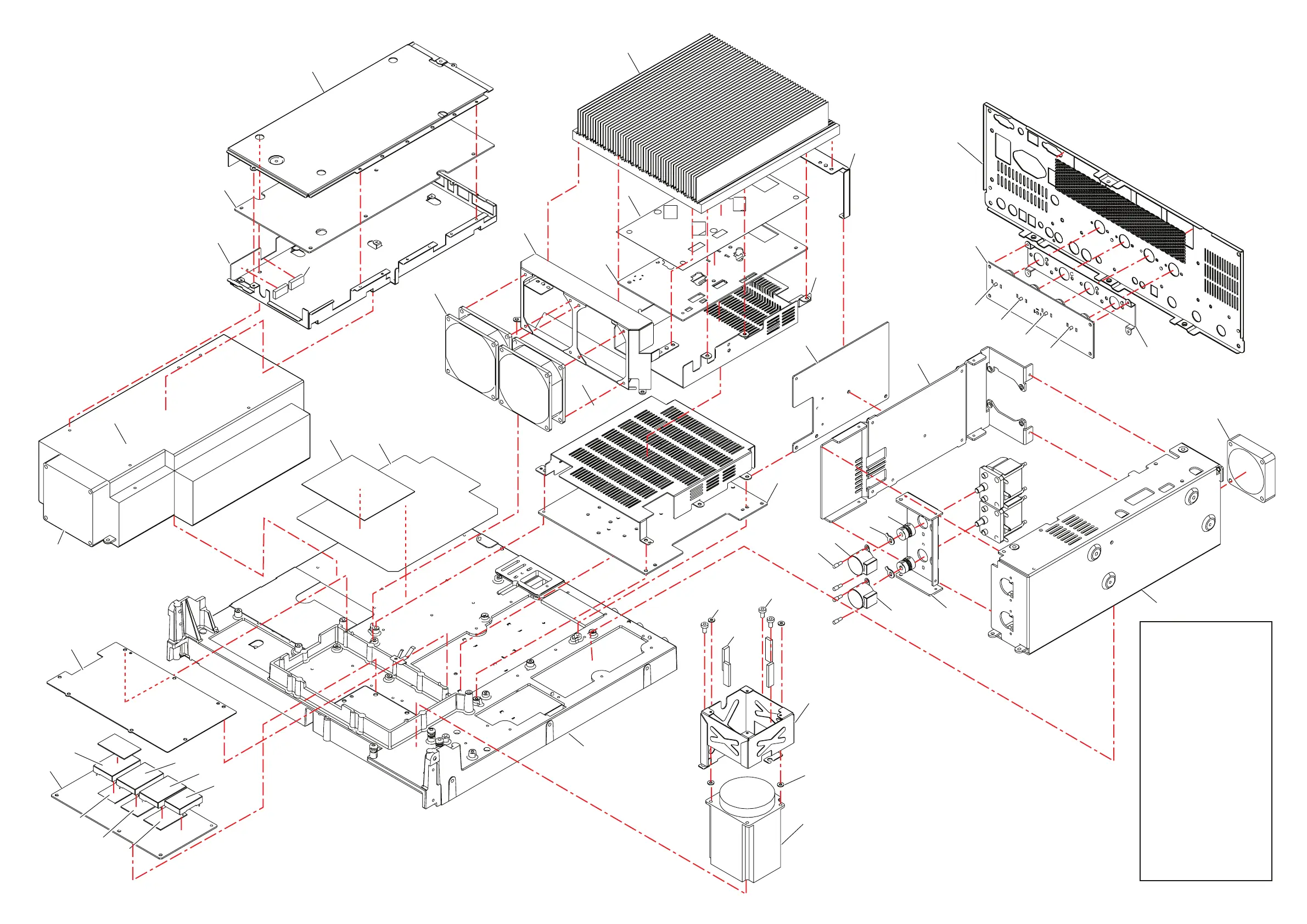

• CHASSIS (TOP SIDE)
