1 - 1
TX POWER AMPLIFIER
(Q100)
VCO UNIT

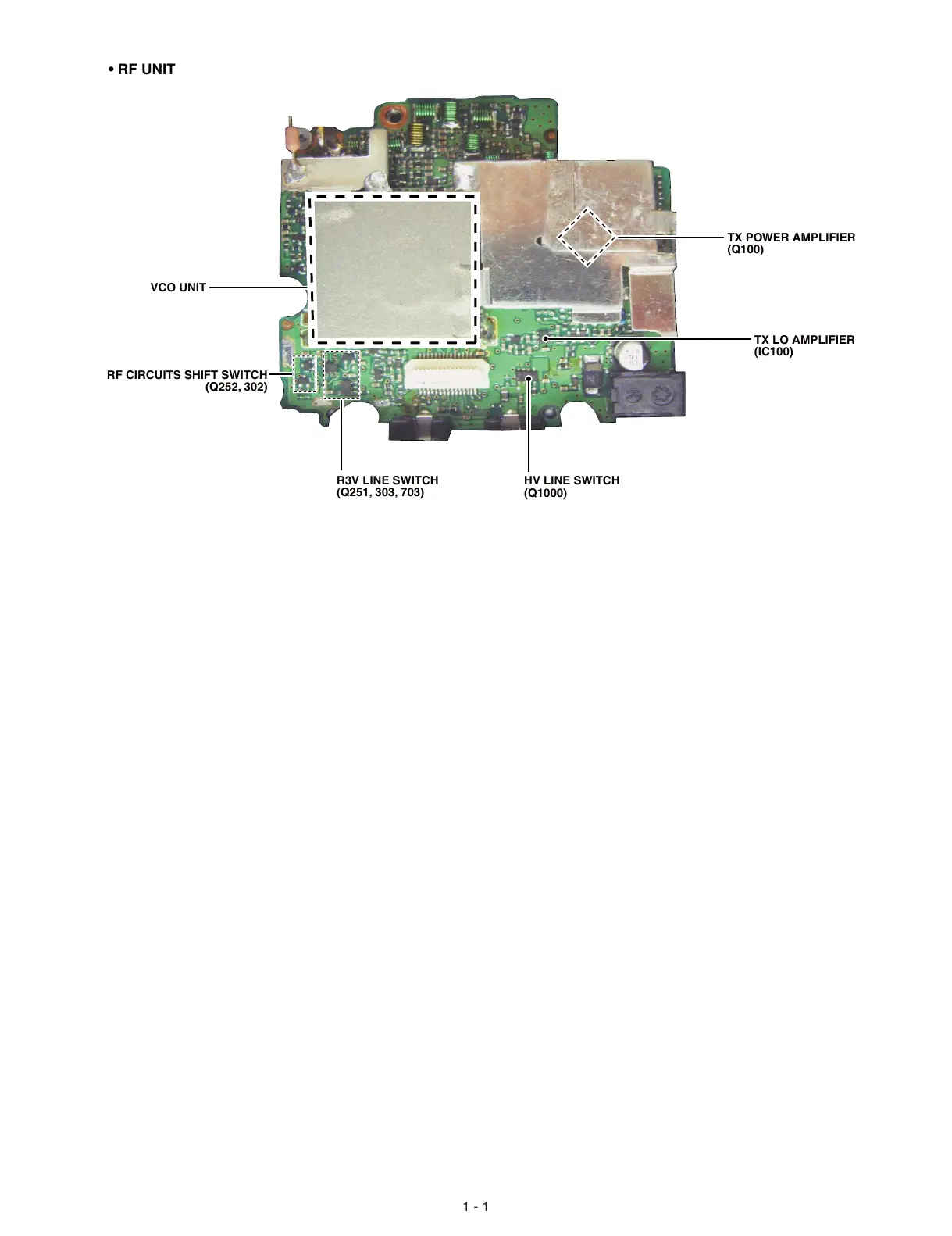

• RF UNIT
R3V LINE SWITCH
(Q251, 303, 703)
HV LINE SWITCH
(Q1000)
RF CIRCUITS SHIFT SWITCH
(Q252, 302)
TX LO AMPLIFIER
(IC100)
