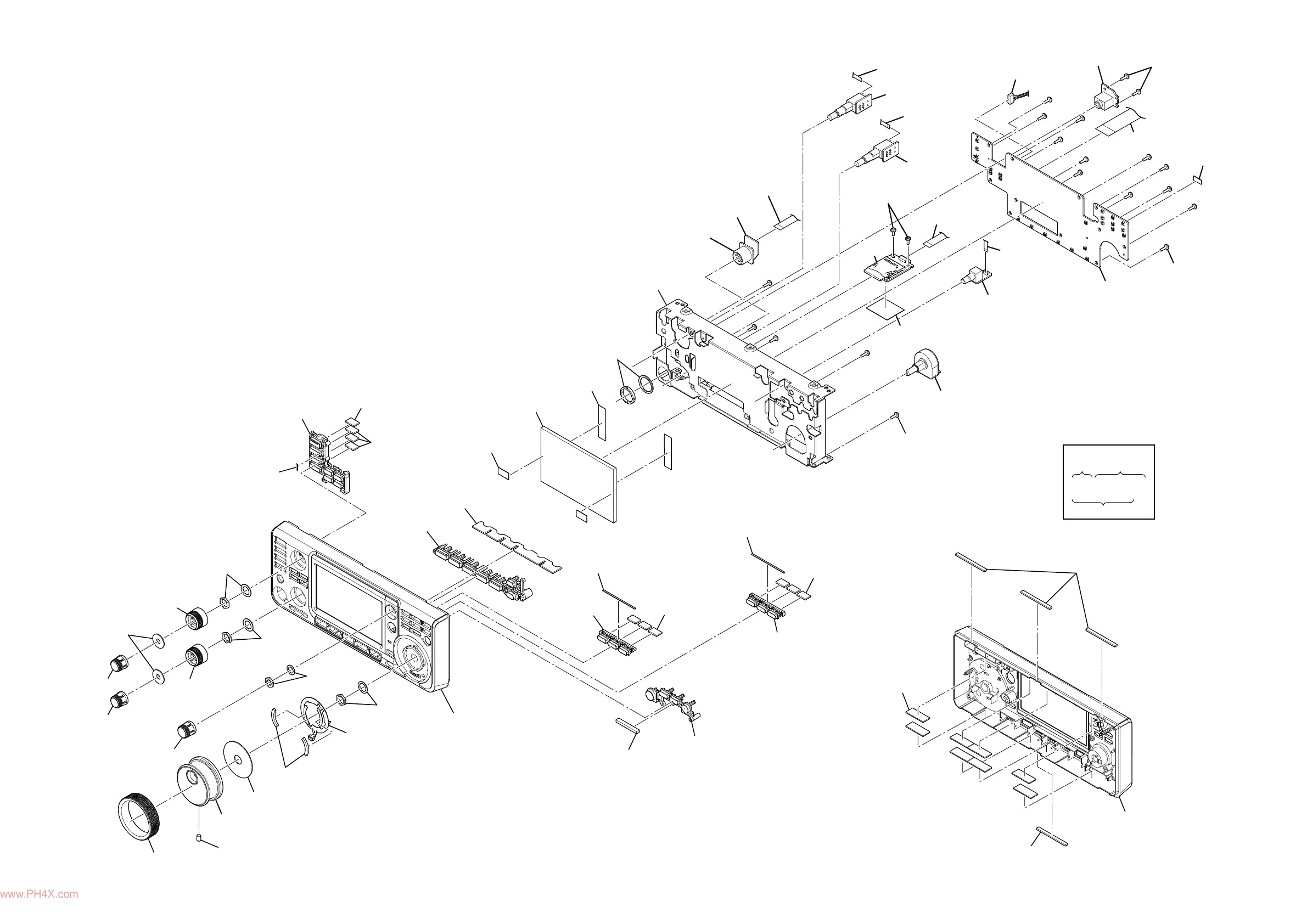

6-6
W31 (CHASSIS)
(8600037700)
W204 (CHASSIS)
(8910000220)
W205 (CHASSIS)
(8900016100)
MP1 (FRONT)
(Refere to the parts list.)
MP3 (FRONT)
(8610016490)
MP35 (FRONT)
(8610015830)
DS1 (FRONT)
(5030004051)
W1 (FRONT)
(8910000070)
W2 (FRONT)
(8910000070)
W3 (FRONT)
(8910000070)
W4 (FRONT)
(8900018000)
EP1 (FRONT)
(0880001360)
MP5 (FRONT)
(8610015710)
MP6 (FRONT)
(8610016470)
MP7 (FRONT)
(8610016480)
MP8 (FRONT)
(8610015740)
MP11 (FRONT)
(8010023630)
MP21 (FRONT)×5
(8810008661)
MP22 (FRONT)×12
(8810008661)
MP23 (FRONT)
(8810008661)
MP24 (FRONT)
(8810008631)
MP32 (FRONT)
(8930093280)
MP33 (FRONT)
(8930077360)
MP34 (FRONT)
(8930094550)
MP36 (FRONT)
(8610015760)
MP37 (FRONT)
(8610013870)
MP38 (FRONT)
(8610013290)
MP39 (FRONT)
(8610013870)
MP40 (FRONT)
(8610013290)
MP41 (FRONT)
(8610015780)
MP43 (FRONT)
(8810003560)
MP47 (FRONT)×2
(8930057950)
MP48 (FRONT)×8
(8930094510)
MP49 (FRONT)
(8930094520)
MP50 (FRONT)
(8930094530)
MP51 (FRONT)
(8930094530)
MP52 (FRONT)
(8930094500)
MP53 (FRONT)
(8930094540)
MP54 (FRONT)
(8930083180)
MP54 (FRONT)
(8930083180)
MP55 (FRONT)×2
(8930032130)
MP56 (FRONT)
(8930100360)
MP57 (FRONT)
(8930037760)
MP58 (FRONT)
(8930094650)
MP61 (FRONT)
(8930088580)
MP62 (FRONT)
(8930097950)
MP63 (FRONT)×3
(8930094520)
MP64 (FRONT)×3
(8930094520)
J1 (MIC)
(6510000191)
J1 (MIC)
(6510000191)
EP1 (FRONT)
(0880001360)
S1 (RIT)
(2250001010)
R1 (VR-A)
(7210003880)
R1 (VR-B)
(7210003880)
MP1 (FRONT)
(Refere to the parts list.)
MIC UNIT
VR-B UNIT
DISPLAY UNIT
VR-A UNIT
SD UNIT
RIT UNIT
PHONE UNIT
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
