Icom IC-9700 Reference Guide

D Preparing
The Icom Communications Interface V (CI-V) is used for remote control.
To control the transceiver, rst set its address, data communication speed, and transceive function.
These settings are set in the Set mode (Refer to the IC-9700 instruction manual).
D About the data format
The CI-V system can be written using the following data formats. Data formats differ according to command
numbers. A data area or sub command is added for some commands.
Controller to IC-9700
IC-9700 to controller

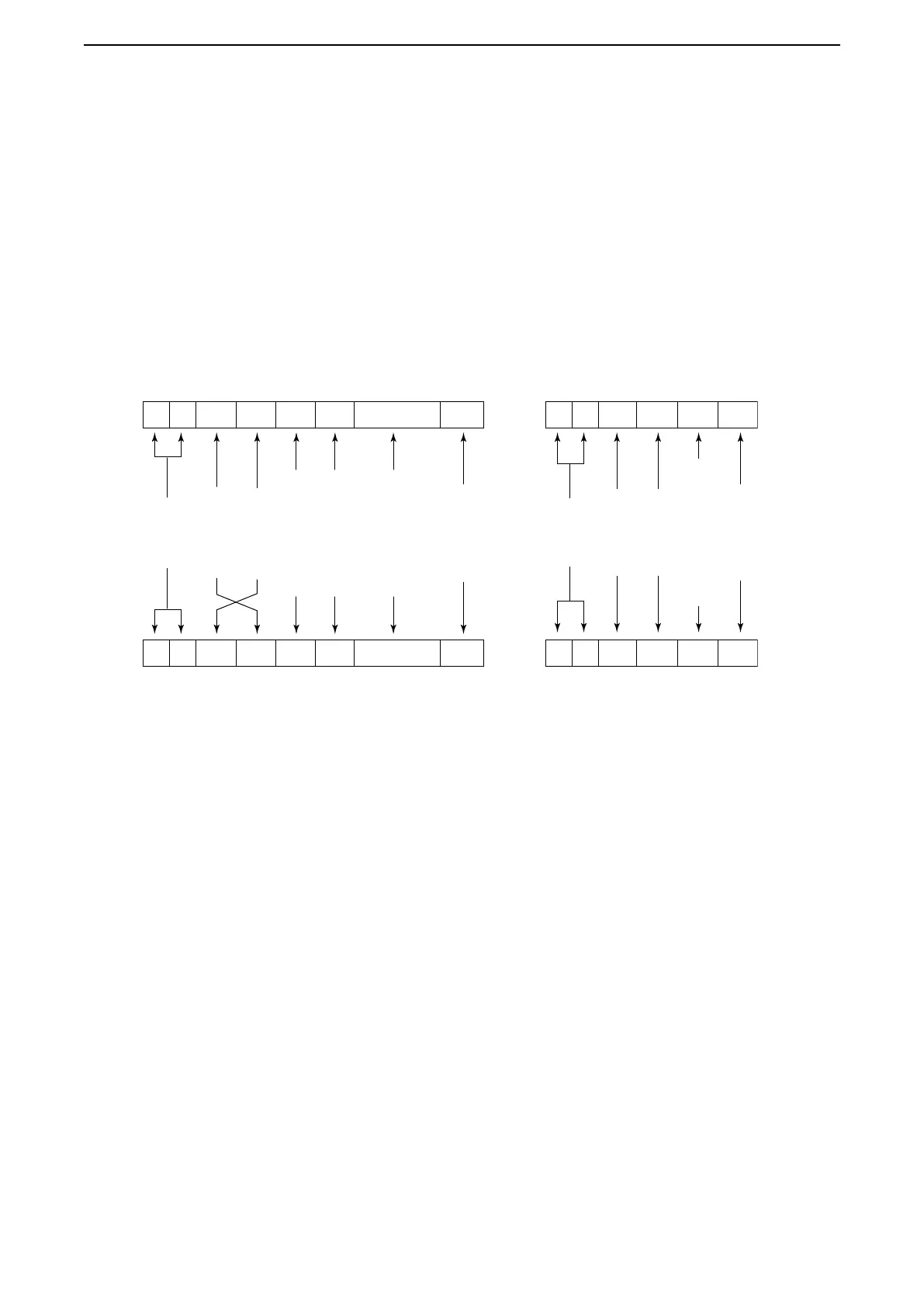

FE FE A2 E0 Cn Sc Data area FD
Preamble
code (fixed)
Transceiver’s
default address
Controller’s
default address
Command number
(see the command table)
Sub command number
(see the command table)
BCD code data for
frequency or memory
number entry
End of message
code
(fixed)
FE FE E0 A2 FB FD
FE FE E0 A2 FA FD
Preamble
code (fixed)
Controller’s
default address
Transceiver’s
default address
OK code
(fixed)
End of message
code (fixed)
NG code (fixed)
q w e r t y u
FE FE E0 A2 Cn Sc Data area FD
q w e r t y u
OK message to controller
NG message to controller
■ Remote control (CI-V) information(Continued)
Remote control
3

Icom IC-9700 Specifications

General

Receiver Type	Triple conversion superheterodyne
Display	4.3 inch color TFT touch screen
Type	VHF/UHF/1.2GHz All Mode Transceiver
Receiver System	Triple conversion superheterodyne
D-STAR	Yes
Antenna Impedance	50 ohms
Power Supply	13.8V DC ±15%
Frequency Range	144-146 MHz, 430-440 MHz, 1240-1300 MHz
Mode	FM, SSB, CW, AM
Antenna Connector	2m/70cm: SO-239, 23cm: Type-N
Dimensions	240 x 94 x 238 mm
Weight	Approx. 4.7 kg
RF Power Output	2m/70cm: 100W, 23cm: 10W
GPS	Yes (Internal)
Sensitivity	0.18 μV (FM)
