BATTERY CHARGING

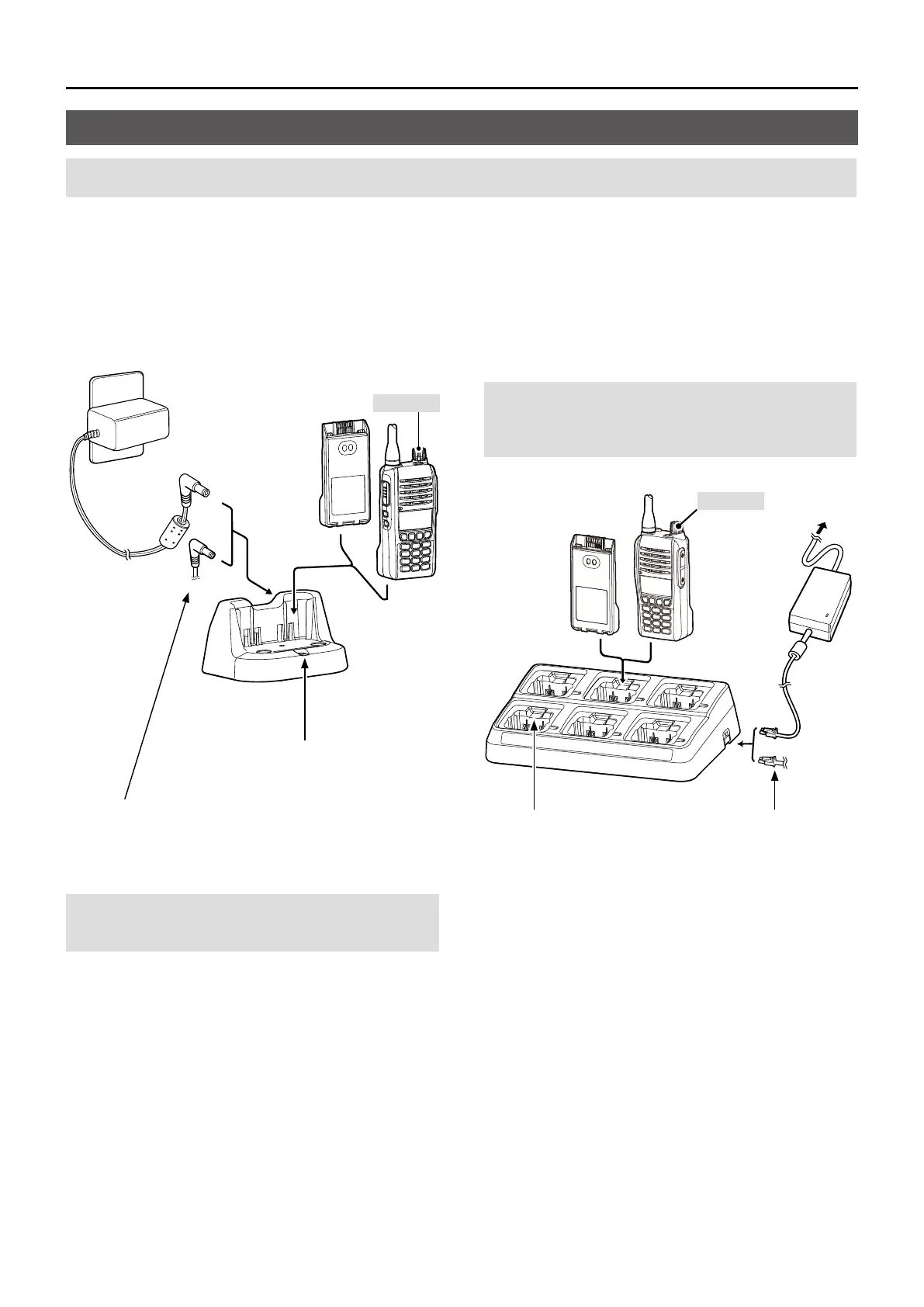

Battery charger
NOTE: Before attaching or detaching a battery pack, BE SURE to turn OFF the transceiver by rotating [VOL] fully
counter clockwise until it makes a “click” sound. Otherwise, a transceiver malfunction could occur.
D Supplied battery charger
Charging time:
Approximately 3.5 hours for the BP-280
The CP-23L (for a 12 V cigarette lighter socket) can
be used instead of the power adapter.
* May not be supplied, or the shape may be different,
depending on the transceiver version.
NOTE: If the charging indicator alternately blinks
green and orange, remove the battery pack or the
transceiver from the charger, then reinsert it.
Power adapter*
Battery
pack
Battery
charger
Charging indicator
Lights orange: Charging
Lights green: Charged
Turn OFF
D Optional BC-214 MULTI CHARGER
Charging time:
Approximately 2 to 3 hours for the BP-280
Additionally needed item (purchase separately):
The BC-157S AC ADAPTER or
the OPC-656 DC POWER CABLE
CAUTION: DO NOT reverse the polarity when
connecting the OPC-656 to a power source. This will
ruin the battery charger.
Red: +, Black: _
Turn OFF
Power
adapter*
Battery
pack
Charger adapter*
2
OPC-656
Connect to a DC power supply:
12 to 16 V, at least 7 A
Red: +, Black: _
*
1
A different type, or no power adapter is supplied,
depending on the charger version.
*
2
Charger adapter’s shape may differ, depending on
the charger version.
To an
AC outlet
