Icom IC-A16 User Manual

2-3

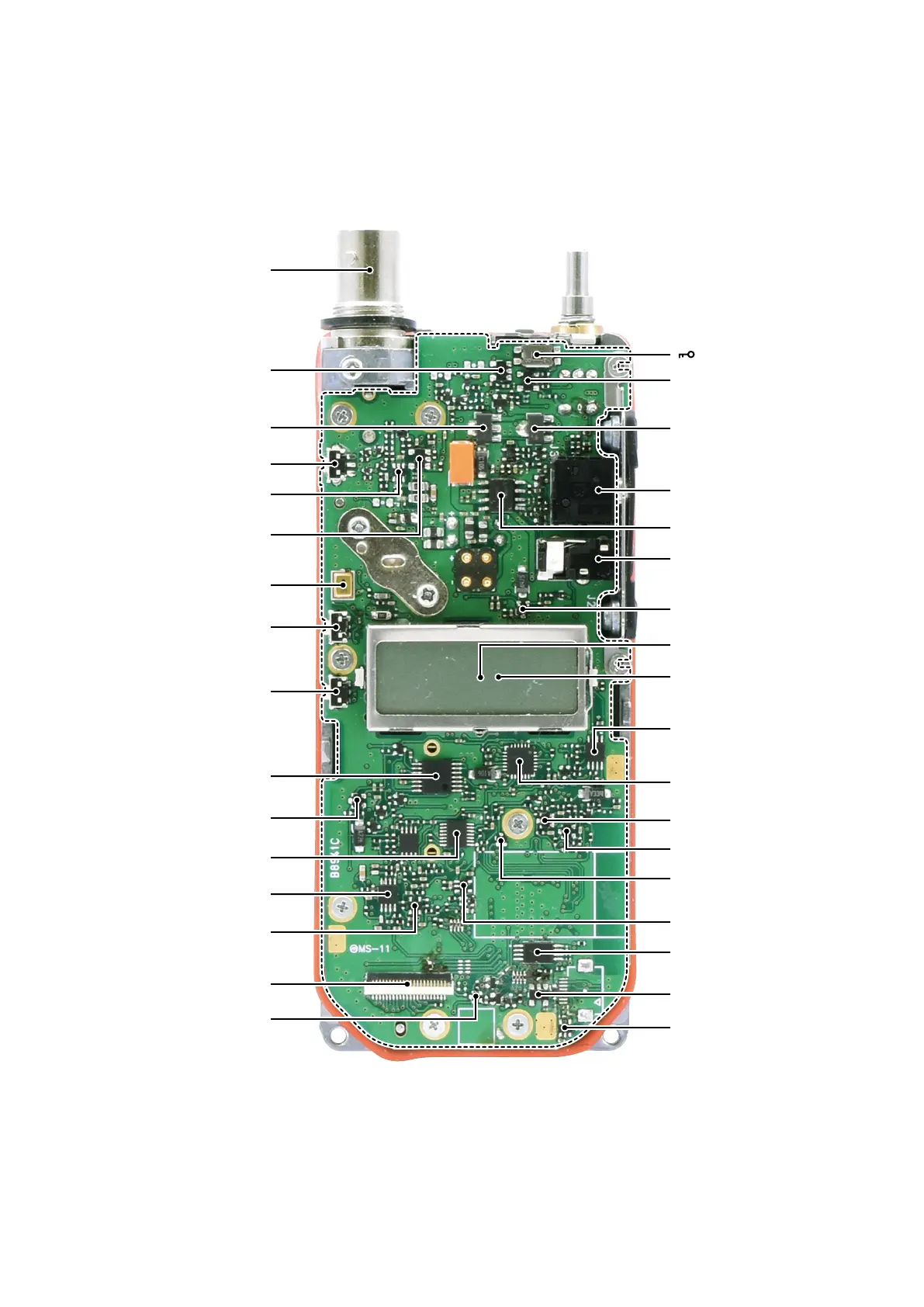

• MAIN UNIT (TOP VIEW)
[PTT] (S500)
+3.3 V REGULATOR
(IC16)
AUTOMATIC POWER CONTROL
(IC18)
TXV REGULATOR
(IC510)
AUTOMATIC LEVEL CONTROL
(IC6)
RIPPLE FILTER
(Q7)
[SQL
▲ ] (S502)
[SQL
▼ ] (S503)
[MIC] (J3)
+5 V REGULATOR
(IC17)
AF POWER AMPLIFIER
(IC3)
EXTERNAL PTT DETECT
(Q16)
AF AMPLIFIER REGULATOR
(Q522)
[SP] (J2)
LCD DRIVER
(IC503)
Below the LCD
LCD
(DS503)
AUTOMATIC GAIN CONTROL
(IC14)
D/A CONVERTER
(IC15)
AM DETECTOR
(Q36)
IF AMPLIFIER
(Q35)
MICROPHONE MUTE SWITCH
(IC12)
AUTOMATIC NOISE LIMITER
SWITCH
(Q22)
VOX DETECTOR
(IC10)
EEPROM
(IC501)
CPU3 REGULATOR
(IC505)
AF AMPLIFIER REGULATOR
(Q2)
LPF
(IC19)
RESET IC
(IC512)
BUFFER AMPLIFIER
(IC1)
J500
BACKLIGHT CONTROLLER
(Q503)
[ ] (S504)
ANTENNA CONNECTOR
(J1: CHASSIS UNIT)
MICROPHONE
(MC1)

Icom IC-A16 Specifications

General

Channel Spacing	8.33 kHz/25 kHz
Number of Memory Channels	200 channels
Antenna Impedance	50 Ω
Waterproof	IP67
Display	LCD
Frequency Range	118.000–136.9916 MHz
Output Power	6 W (PEP), 1.8 W (carrier)
Weight	Approx. 300 g (with standard battery)
Power Supply Requirement	7.2 V DC
Current Drain (Transmit)	1.5 A
Mode	AM
Channels	200
Voltage	7.2V
