Icom IC-A16 User Manual

2-4

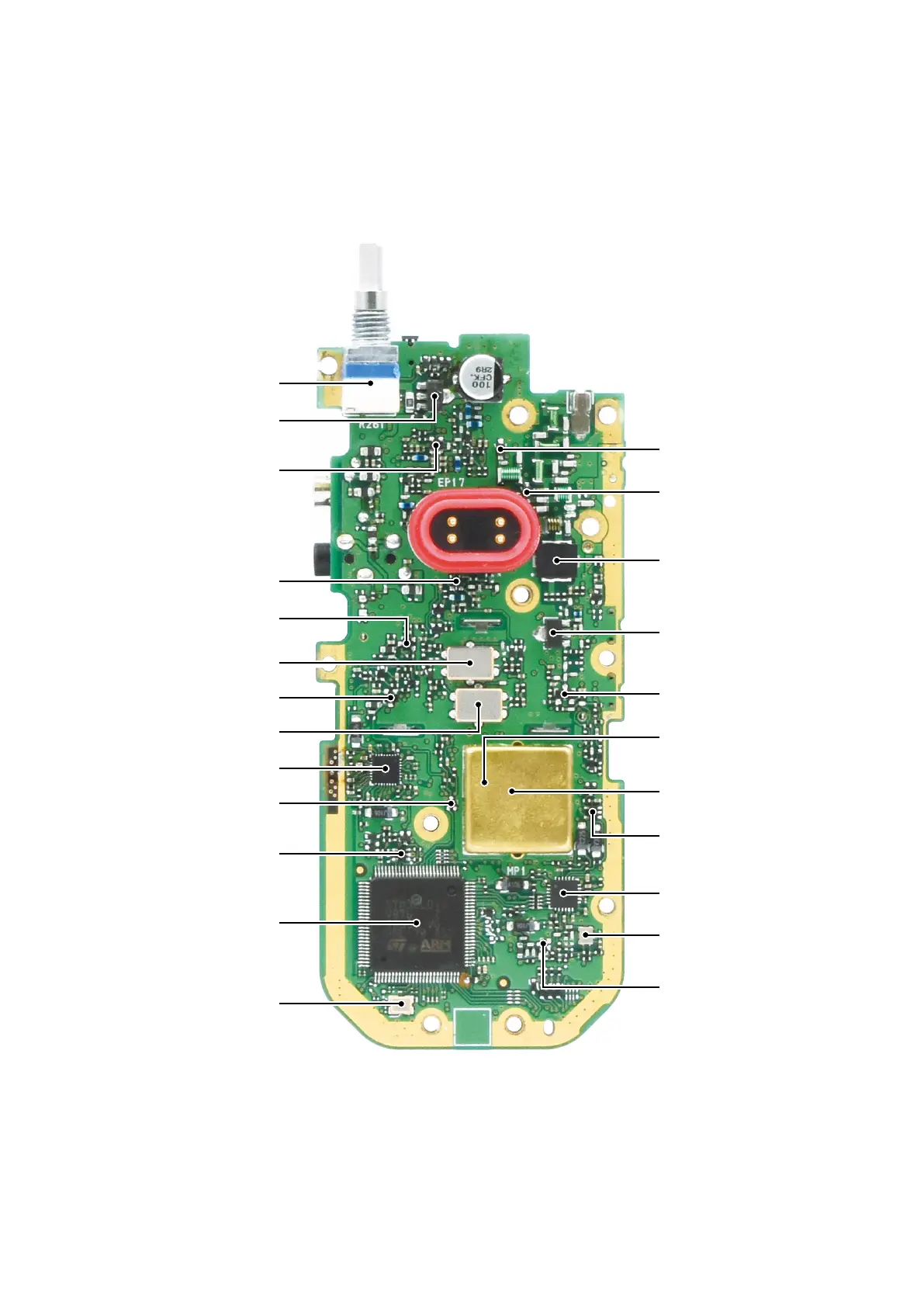

• MAIN UNIT (BOTTOM VIEW)
15.3 MHz
REFERENCE OSCILLATOR
(X1)
ANTENNA SWITCH
(D40)
ANTENNA SWITCH
(D38)
POWER AMPLIFIER
(Q33)
DRIVER
(Q30)
PRE DRIVER
(Q28)
LOOP FILTER
(IC7)
RX VCO
(Q13)
Inside the shielded case.
TX VCO
(Q14)
Inside the shielded case.
[VOL] (R261)
1st MIXER
(Q29)
IF AMPLIFIER
(Q37)
IF IC
(IC511)
MICROPHONE MUTE SWITCH
(Q513)
CLONE I/O SWITCH
(IC504)
CPU
(IC500)
EXTERNAL MICROPHONE
REGULATOR
(Q21)
RF AMPLIFIER
(Q34)
IF AMPLIFIER
(Q27)
Narrow 1st IF FILTER
(FI4)
Wide 1st IF FILTER
(FI3)
19.6608 MHz
CPU CLOCK OSCILLATOR
(X501)
PLL IC
(IC5)
FREQUENCY TRIPLER
(Q38)

Icom IC-A16 Specifications

General

Channel Spacing	8.33 kHz/25 kHz
Number of Memory Channels	200 channels
Antenna Impedance	50 Ω
Waterproof	IP67
Display	LCD
Frequency Range	118.000–136.9916 MHz
Output Power	6 W (PEP), 1.8 W (carrier)
Weight	Approx. 300 g (with standard battery)
Power Supply Requirement	7.2 V DC
Current Drain (Transmit)	1.5 A
Mode	AM
Channels	200
Voltage	7.2V
