Icom IC-A16E User Manual

6-2

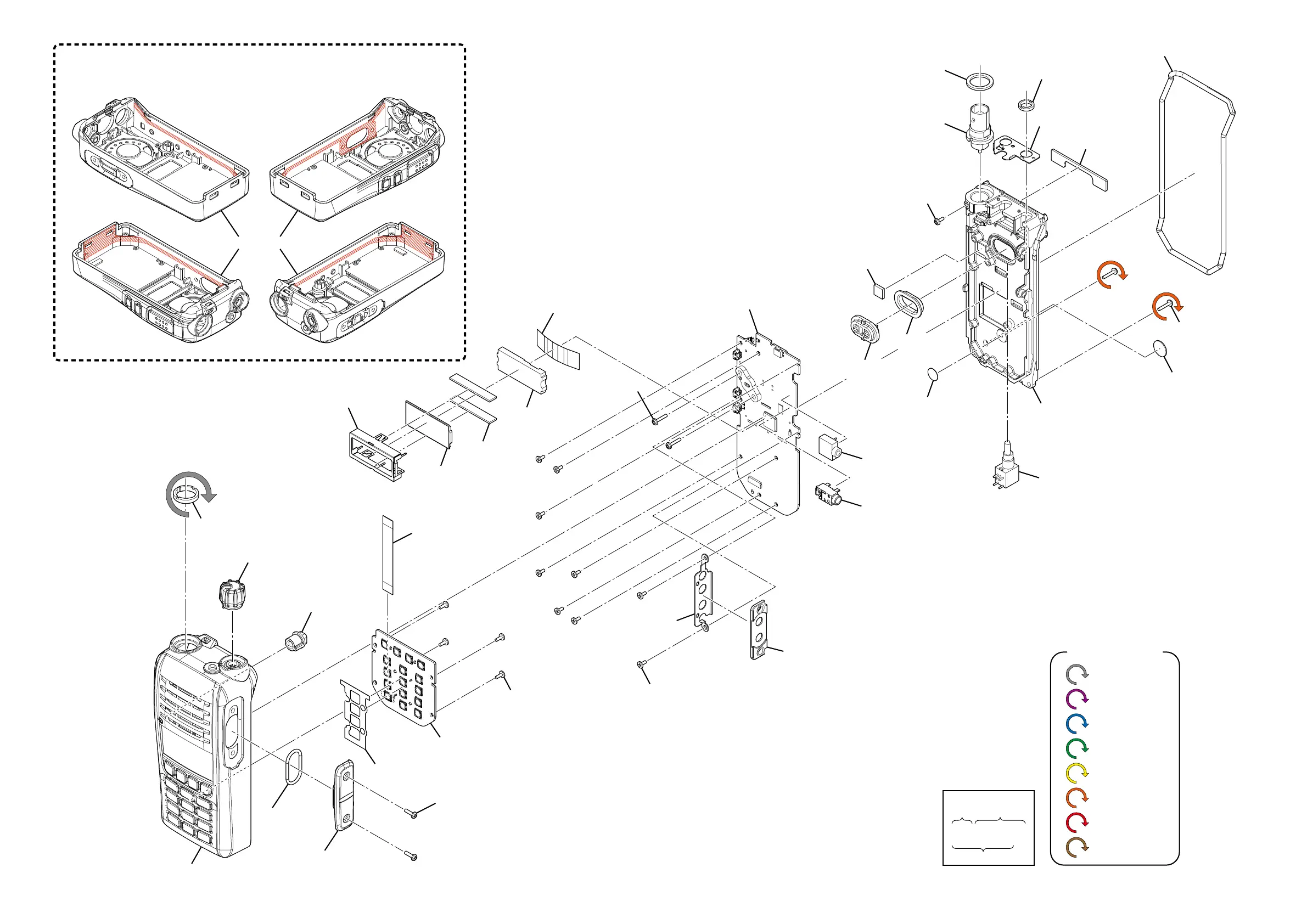

Apply the grease to the following area of the front panel
Used grease: G501 (80G) SHINETSU (8950002750)
MP2 (CHASSIS)
FRONT UNIT
MP12 (CHASSIS)
(8930100760)
MP19 (CHASSIS)
(8830004260)
MP25 (CHASSIS)
(8610014720)
MP39 (CHASSIS)
(8930085330)
MP43 (CHASSIS)×2
(8810007391)
MP49 (CHASSIS)
(8210029630)
MP56 (CHASSIS)×4
(8810008641)
W1 (FRONT)
(8910000610)
MP4 (FRONT)
(8930101480)
MP2 (CHASSIS)
(Refere to the parts list.)
J1 (CHASSIS)
(6510027690)
MP1 (CHASSIS)
(8010023043)
MP6 (CHASSIS)
(8930089290)
MP7 (CHASSIS)
(8930089240)
MP11 (CHASSIS)
(8930100750)
MP15 (CHASSIS)
(8930068980)
MP16 (CHASSIS)
(8930084870)
MP22 (CHASSIS)
(8930091601)
MP26 (CHASSIS)
(8930089270)
MP30 (CHASSIS)
(8930090130)
MP34 (CHASSIS)
(8830001701)
MP35 (CHASSIS)
(8850003421)
MP40 (CHASSIS)×2
(8810010850)
MP41 (CHASSIS)×9
(8810008971)
MP44 (CHASSIS)
(8810009511)
MP45 (CHASSIS)×2
(8810008761)
MP51 (CHASSIS)
(8930090110)
J2 (MAIN)
(6450002530)
J3 (MAIN)
(6450000131)
DS503 (MAIN)
(5030004520)
EP17 (MAIN)
(6910024510)
EP19 (MAIN)×2
(8930063020)
MP6 (MAIN)
(8930070080)
MP7 (MAIN)
(8210020571)
MP8 (MAIN)
(8930069481)
R261 (MAIN)
(7210003770)
MAIN UNIT
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
: <0.8 (N•m)>
: <0.7 (N•m)>
: <0.6 (N•m)>
: <0.5 (N•m)>
: <0.4 (N•m)>
: <0.3 (N•m)>
: <0.2 (N•m)>
: <0.1 (N•m)>
Tightening torque
