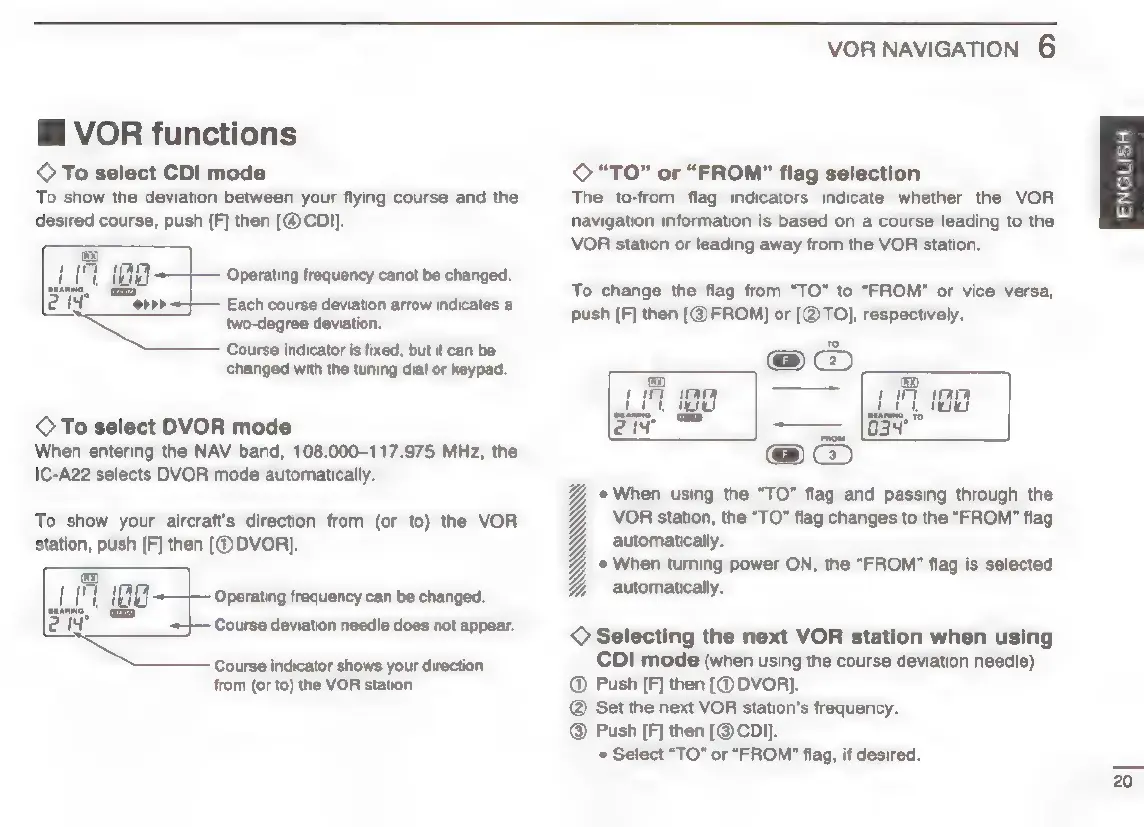

i VOR functions
© To select CDI mode
To show the deviation between your flying course and the
desired course, push (F] then [@CDI).
Operating frequency canot be changed.
Each course deviation arrow indicates a
two-degree deviation.
Course indicator is fixed, but it can be
changed with the tuning dial or keypad.
© To select DVOR mode
When entering the NAV band, 108.000-117.975 MHz, the
IC-A22 selects DVOR mode automatically.
To show your aircraft's direction from (or to) the VOR
station, push [F] then [© DVOR].
;— Operating frequency can be changed.
|— Course deviation needle does not appear.
Course indicator shows your direction
from (or to) the VOR station.
VOR NAVIGATION 6
© “TO” or “FROM” flag selection
The to-from flag indicators indicate whether the VOR
navigation information is based on a course leading to the
VOR station or leading away from the VOR station.
To change the flag from “TO” to “FROM” or vice versa,
push [F] then [@ FROM] or [@TO}, respectively.
«When using the “TO” flag and passing through the
VOR station, the “TO” flag changes to the “FROM” flag
automatically.
When turning power ON, the “FROM” flag is selected
automatically.
IK. DCK?’DWDWAXS
© Selecting the next VOR station when using
CDI mode (when using the course deviation needle)
@ Push [F] then [® DVOR].
@ Set the next VOR station's frequency.
@ Push [F] then [@CDI].
* Select “TO” or “FROM” flag, if desired.
ENGLISH
