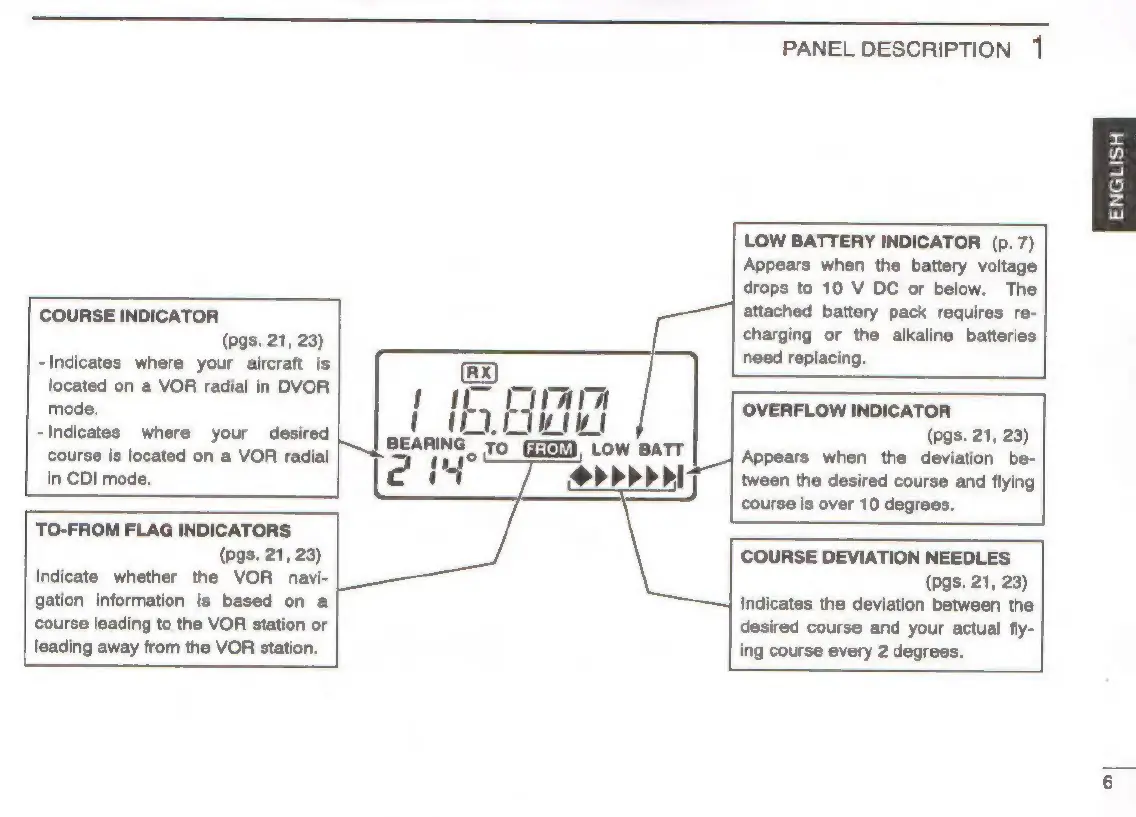

COURSE INDICATOR
(pgs. 21, 23)
- Indicates where your aircraft is
located on a VOR radial in DVOR
mode.
Indicates where your desired
course is located on a VOR radial
in CDI mode.
——_—_
TO-FROM FLAG INDICATORS
(pgs. 21, 23)
Indicate whether the VOR navi-
gation information is based on a
course leading to the VOR station or
leading away from the VOR station.
| Feerncaeis eet Bh iene beso ail
PANEL DESCRIPTION 1
LOW BATTERY INDICATOR (p. 7)
Appears when the battery voltage
drops to 10 V DC or below. The
attached battery pack requires re-
charging or the alkaline batteries
need replacing.
OVERFLOW INDICATOR
(pgs. 21, 23)
Appears when the deviation be-
tween the desired course and flying
course is over 10 degrees.
COURSE DEVIATION NEEDLES
(pgs. 21, 23)
Indicates the deviation between the
desired course and your actual fly-
ing course every 2 degrees.
