VOR NAVIGATION (IC-A24E ONLY)

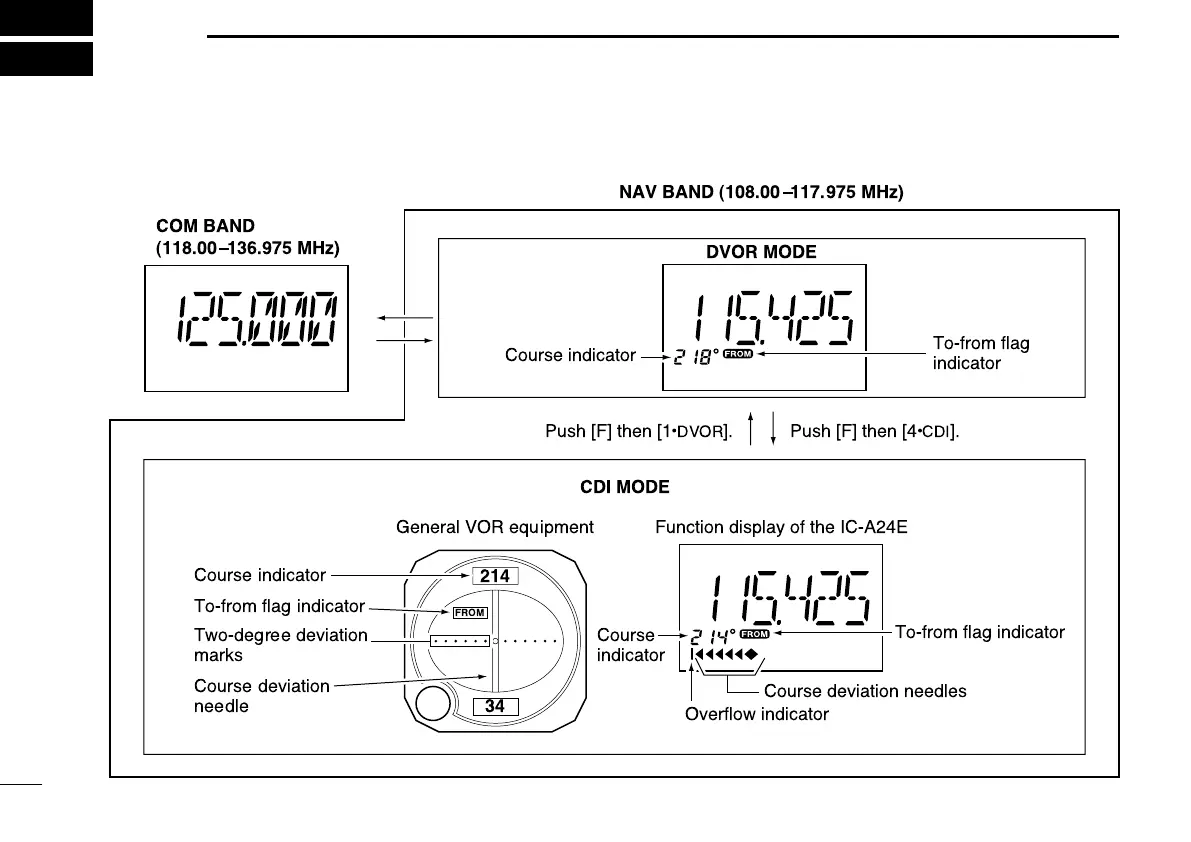

■ VOR indicators
214
34
FROM
COM BAND
(118.00 136.975 MHz)
NAV BAND (108.00 117.975 MHz)
DVOR MODE
Function display of the IC-A24EGeneral VOR equipment
To-from flag
indicator
CDI MODE
Course indicator
Course
indicator
Course deviation needles
Overflow indicator
Push [F] then [4
CDI].Push [F] then [1 DVOR].
To-from flag indicator
Course indicator
Course deviation
needle
To-from flag indicator
Two-degree deviation
marks
