Icom IC-A25C Service Manual

INTRODUCTION
This service manual describes the latest technical
information for the IC-A25N, IC-A25NE, IC-A25C,
and IC-A25CE VHF air band transceivers at the time
of publication.
MODEL VERSION
VERSION
NUMBER
VOR/
GPS
Bluetooth WX
IC-A25N
USA-01 #11
✔ ✔ ✔
EXP-01 #12
✔ ✔ ✔
IC-A25NE
EUR-01 #13
✔ ✔
–
AUS-01 #14
✔ ✔
–
IC-A25C
USA-01 #21 – –
✔
EXP-01 #22 – –
✔
IC-A25CE
EUR-01 #23 – – –
AUS-01 #24 – – –
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
SERVICE CAUTION
NEVER connect the transceiver to a DC power supply
that uses more than the specified voltage. This will
ruin the transceiver.
DO NOT reverse the polarities of the power supply
when directly applying power to the transceiver/circuit.
DO NOT apply an RF signal of more than 20 dBm
(100 mW) to the antenna connector. This could
damage the transceiver’s front-end.
ORDERING PARTS
Be sure to include the following four points when
ordering replacement parts:
1. 10-digit Icom part number
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110006490 LMV321IDCKR IC-A25 MAIN UNIT 5 pieces
8610016330 N-449 IC-A25 CHASSIS 1 piece
REPAIR NOTES
1. Make sure that the problem is internal before
disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver
is disconnected from its power source.
3. DO NOT short any circuits or electronic parts.
4. DO NOT keep power ON for a long time when the
transceiver is defective.
5. NEVER directly transmit power into any test
equipment such as Standard Signal Generator or
a Sweep Generator, otherwise the RF power may
damage them.
6. ALWAYS connect a 30 dB to 40 dB attenuator
between the transceiver and such test equipment.
7. READ the instructions of the test equipment
thoroughly before connecting it to the transceiver.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the
United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.

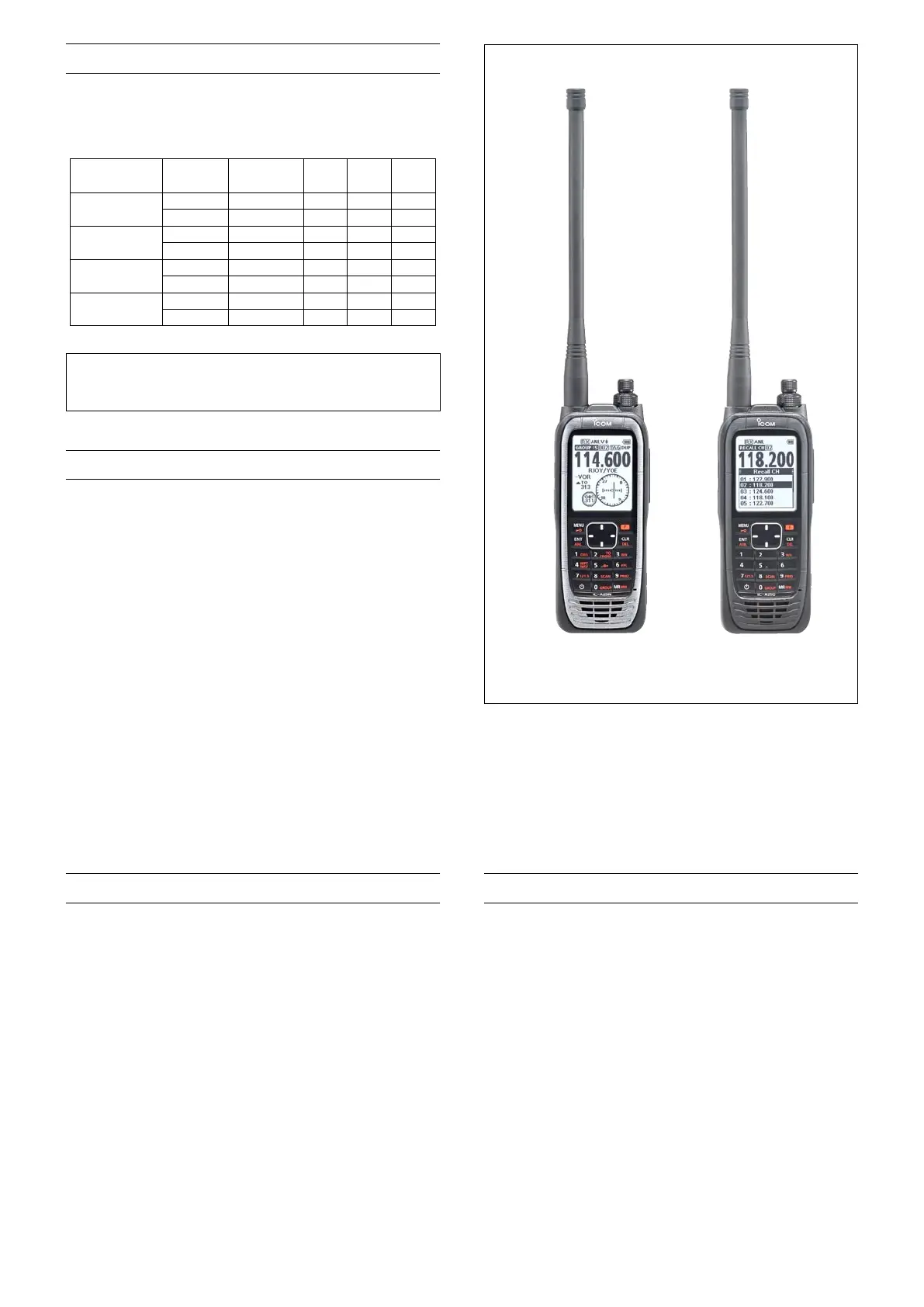

▲ IC-A25N ▲ IC-A25C

Icom IC-A25C Specifications

General

Purpose	Aviation Service (Air Band)
Operating frequency	118.000 – 136.992 MHz
Display type	LCD
Display diagonal	2.3 \
Battery type	BP-288
Battery life (max)	10.5 h
Battery low indication	Yes
Number of batteries supported	1
Product color	Black
Operating temperature (T-T)	-10 - 60 °C
Number of batteries included	1 pc(s)
Antenna connector type	FA-B02AR

Weight and Dimensions

Depth	31.8 mm
Width	58.9 mm
Height	148.4 mm
Weight	384 g
