Icom IC-A25C Service Manual

SECTION 3 DISASSEMBLY INSTRUCTION
3-1

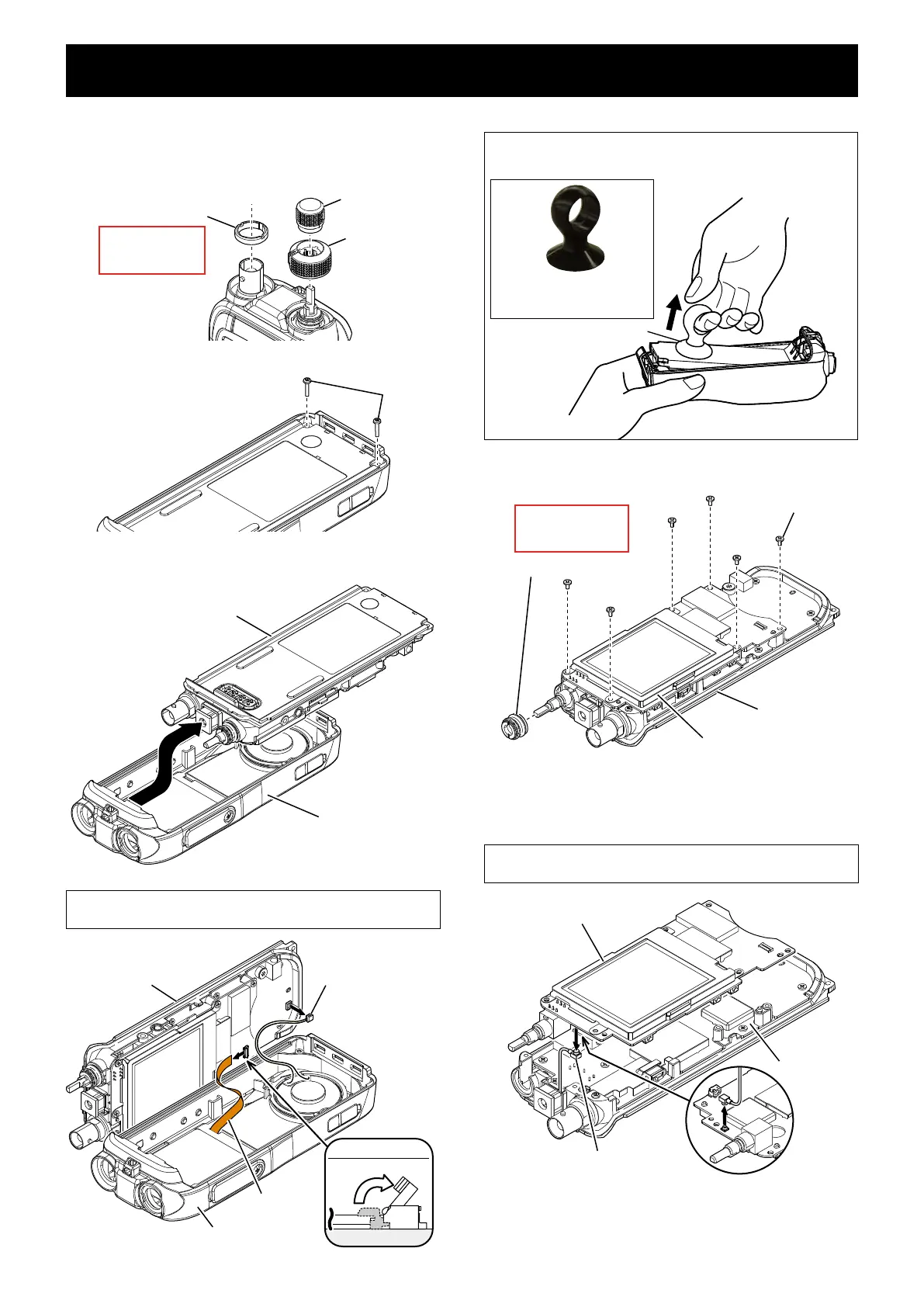

1. REMOVING THE LOGIC/-1 UNIT
Remove 2 dial knobs and antenna nut from the 1)
front panel.
Antenna nut
Inner dial
Outer dial
Remove with;
“ICOM Driver (K)”
(8960000112)
Remove 2 screws from the bottom of chassis.2)
Screws
Separate the chassis from the front panel, then 3)
disconnect flat and speaker cables.
Front panel
Chassis
BE CAREFUL about the flat and speaker cables when
separating the chassis from the front panel.
Front panel
Flat cable
Speaker cable
Chassis
FLAT CABLE
Lift up
flat cable
Suction lifter
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
Suction lifter
• Part name: EA950R-2
• Manufacture: ESCO CO.LTD
Remove dial nut and 6 screws from the LOGIC/-1 4)
UNIT.
LOGIC/-1 UNIT
Chassis
Screws×6
Dial nut
Remove with;
“ICOM Driver (AG)”
(8960000560)
Separate the LOGIC/-1 UNIT from the MAIN/-1 5)
UNIT, and then disconnect the coaxial cable from
the LOGIC-A UNIT.
BE CAREFUL about the coaxial cable when separating the
LOGIC/-1 UNIT from the MAIN/-1 UNIT.
Coaxial cable
LOGIC/-1 UNIT
MAIN/-1
UNIT

Icom IC-A25C Specifications

General

Purpose	Aviation Service (Air Band)
Operating frequency	118.000 – 136.992 MHz
Display type	LCD
Display diagonal	2.3 \
Battery type	BP-288
Battery life (max)	10.5 h
Battery low indication	Yes
Number of batteries supported	1
Product color	Black
Operating temperature (T-T)	-10 - 60 °C
Number of batteries included	1 pc(s)
Antenna connector type	FA-B02AR

Weight and Dimensions

Depth	31.8 mm
Width	58.9 mm
Height	148.4 mm
Weight	384 g
