(Replacement page)

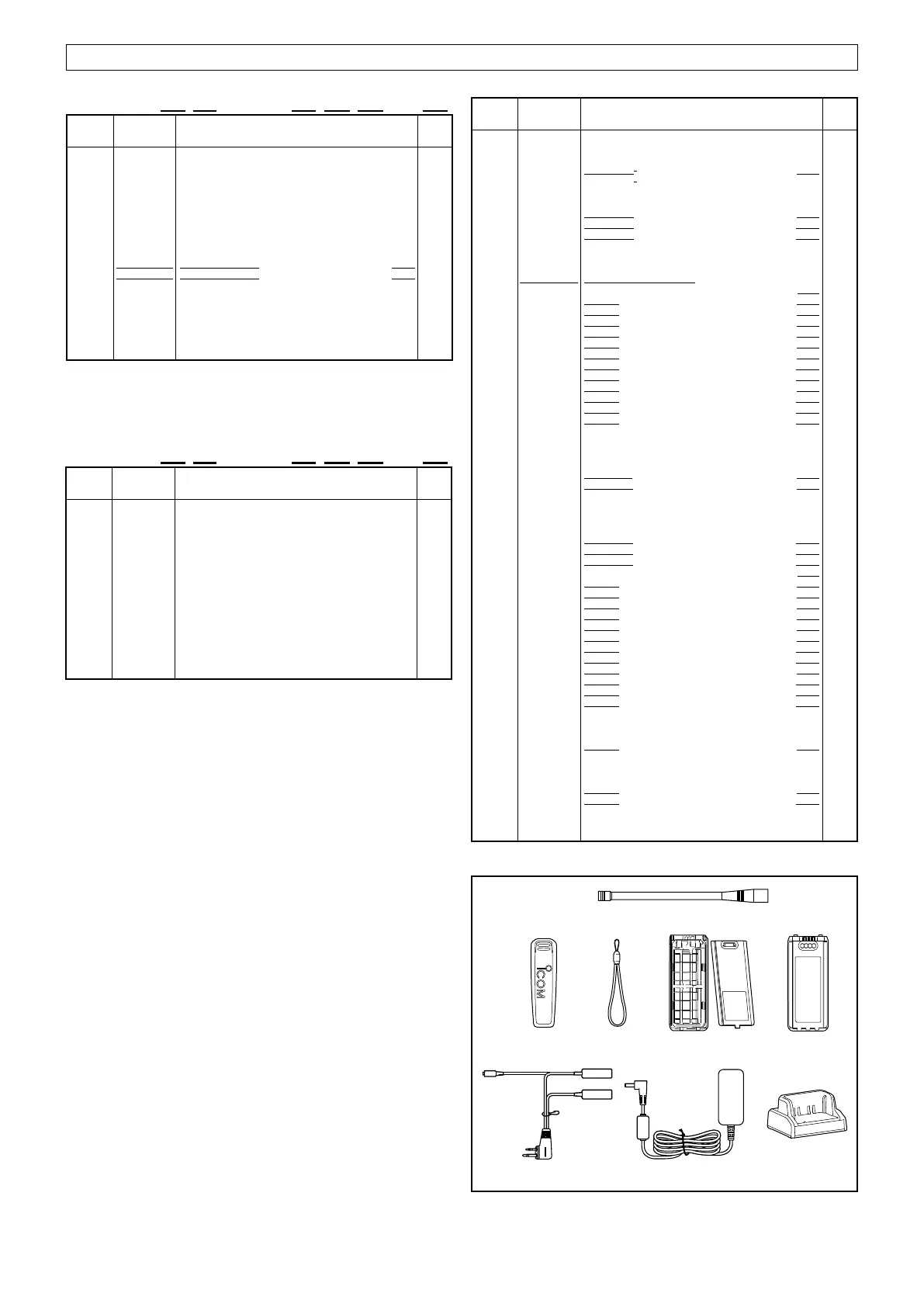

[ACCESSORIES]
6-2a
March 2019
REF
NO.
PART
NO.
DESCRIPTION QT Y.
†
Sold as an option.
*: Refer to "BOARD LAYOUTS" for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head BS: Brass NI: Nickel ZU: Zinc SUS: Stainless
W1 ‒ OPC-2379
†
[#11] 1
‒ OPC-2379
†
[#13] 1
‒ OPC-2379
†
[#14] 1
‒ OPC-2379
†
[#16] 1
‒ OPC-2379
†
[#21] 1
‒ OPC-2379
†
[#23] 1
‒ OPC-2379
†
[#24] 1
‒ OPC-2379
†
[#31] 1
‒ OPC-2379
†
[#34] 1
‒ OPC-2379
†
[#36] 1
EP1 3310002130 FA-B02AR (125) 1
EP2 6910028080 BLACK NYLON STRAP 1
EP3 ‒ BP-288
†
[#11] 1
‒ BP-288
†
[#12] 1
‒ BP-288
†
[#13] 1
‒ BP-288
†
[#14] 1
‒ BP-288
†
[#16] 1
‒ BP-288
†
[#17] 1
‒ BP-288
†
[#21] 1
‒ BP-288
†
[#22] 1
‒ BP-288
†
[#23] 1
‒ BP-288
†
[#24] 1
‒ BP-288
†
[#27] 1
‒ BP-288
†
[#33] 1
‒ BP-288
†
[#34] 1
EP5 ‒ BC-123SA
†
[#11] 1
‒ BC-123SE
†
[#12] 1
‒ BC-123SE
†
[#13] 1
‒ BC-123SV
†
[#14] 1
‒ BC-123SA
†
[#16] 1
‒ BC-123SE
†
[#17] 1
‒ BC-123SA
†
[#21] 1
‒ BC-123SE
†
[#22] 1
‒ BC-123SE
†
[#23] 1
‒ BC-123SV
†
[#24] 1
‒ BC-123SE
†
[#27] 1
‒ BC-123SE
†
[#33] 1
‒ BC-123SV
†
[#34] 1
EP7 ‒ BC-224
†
[#11] 1
‒ BC-224
†
[#12] 1
‒ BC-224
†
[#13] 1
‒ BC-224
†
[#14] 1
‒ BC-224
†
[#16] 1
‒ BC-224
†
[#17] 1
‒ BC-224
†
[#21] 1
‒ BC-224
†
[#22] 1
‒ BC-224
†
[#23] 1
‒ BC-224
†
[#24] 1
‒ BC-224
†
[#27] 1
‒ BC-224
†
[#33] 1
‒ BC-224
†
[#34] 1
EP8 ‒ BP-289
†
[#11] 1
‒ BP-289
†
[#13] 1
‒ BP-289
†
[#14] 1
‒ BP-289
†
[#16] 1
‒ BP-289
†
[#21] 1
‒ BP-289
†
[#23] 1
‒ BP-289
†
[#24] 1
‒ BP-289
†
[#31] 1
‒ BP-289
†
[#36] 1
MP1 ‒ MB-133
†
1
REF
NO.
PART
NO.
DESCRIPTION QT Y.
DS5 5030004360 TM128160D1CIWUGND 1
S23* 2260003320 SKRTLAE010 1
S24* 2260003320 SKRTLAE010 1
S25* 2260003320 SKRTLAE010 1
MP1* 8510022120 3699 VCO CASE [#13] 1
8510022120 3699 VCO CASE [#14] 1
8510022120 3699 VCO CASE [#16] 1
8510022120 3699 VCO CASE [#17] 1
MP2 8930096860 3699 WHITE SHEET 1
MP3 8930096870 3699 LCD FILTER 1
MP4 8930094680 DOUBLE SIDE TAPE (CC) 2
MP5 8210032890 3699 REFLECTOR 1
MP6 8510022280 3699 CPU SHIELD 1
MP7 8930097820 3699 LCD HOLDER 1
MP8 8930083700 DOUBLE SIDE TAPE (BM) 1
The underlined parts have been updated from the previous version of the addendum, or the original page.
REF
NO.
PART
NO.
DESCRIPTION QT Y.
MC1 7700003060 F6027AP-SBC-462 1
S1 2260003640 SKHLLCA010 1
MP1* 8410003040 3699 PA HEATSINK 1
MP3* 8510022120 3699 VCO CASE 1
MP5 8950009230 3699 CONTACT SPRING 1
MP10 8930097700 3699 JACK SHEET 1
MP11 8510022270 3699 ANT SHIELD 1
MP12 8510022260 3699 PA CASE 1
MP20 8930070581 SHIELD SPONGE (BA)-1 1
MP21 8930072061 SHIELD SPONGE (BU)-1 1
MP22 8930085111 SHIELD SPONGE (CX)-1 1
MP23 8930058510 INSULATION SHEETHC 1
EP1
MP1
W1
EP2 EP3
EP7
EP8
EP5
[LOGIC-1 UNIT]
( for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
[MAIN-1 UNIT]
( for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
