Icom IC-A25Ce Service Manual

6-3a
(Replacement page)
March 2019

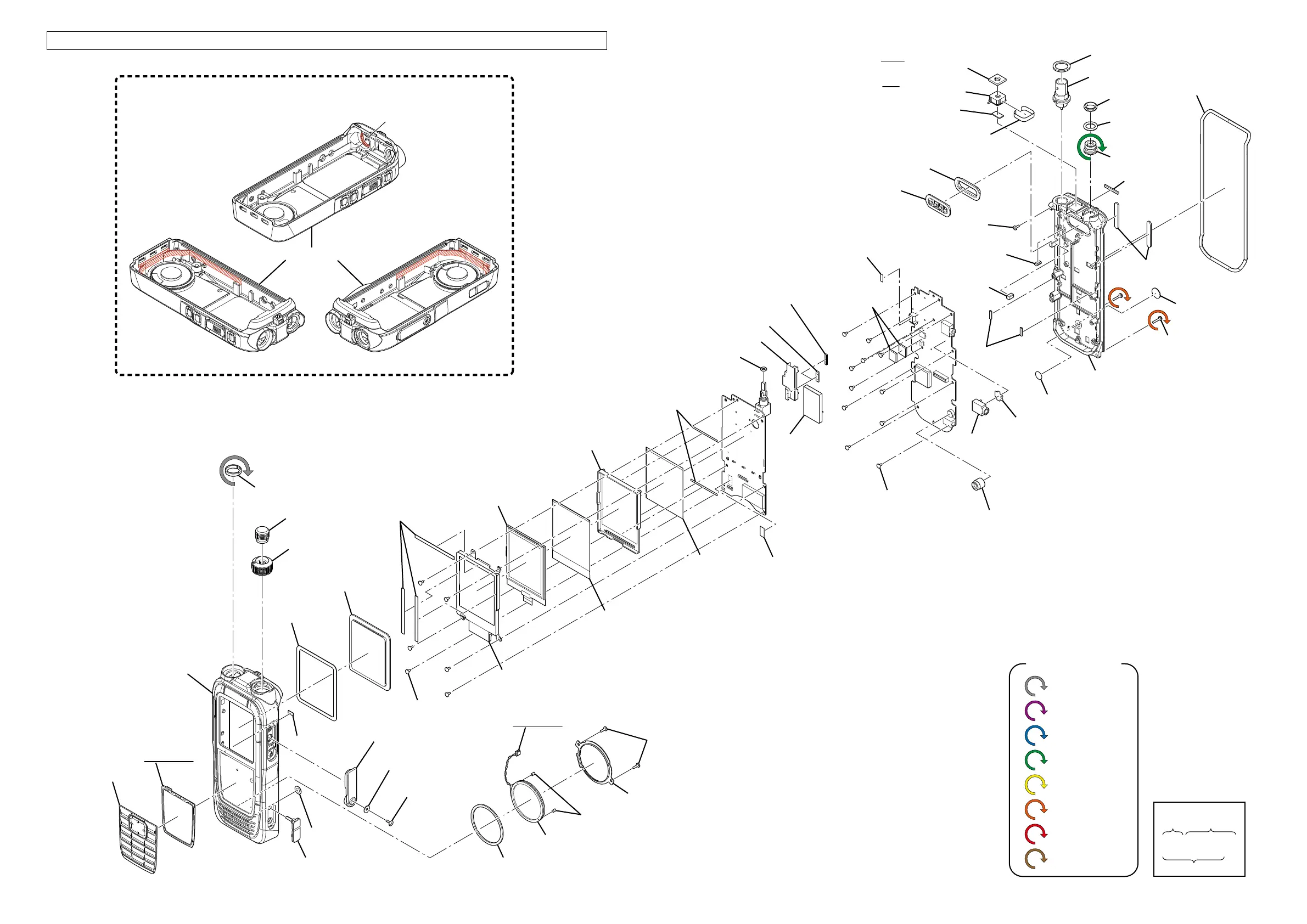

Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
: <0.8 (N•m)>
: <0.7 (N•m)>
: <0.6 (N•m)>
: <0.5 (N•m)>
: <0.4 (N•m)>
: <0.3 (N•m)>
: <0.2 (N•m)>
: <0.1 (N•m)>
Tightening torque
MP2 (CHASSIS)
(Refere to the parts list.)
J1 (CHASSIS)
(6510027690)
SP1 (CHASSIS)
(2510002150)
W1 (CHASSIS)
(8900009641)
MP18 (CHASSIS)
(Refere to the parts list.)
EP2 (CHASSIS)
(8940000081)
MP1 (CHASSIS)
(8010024120)
MP5 (CHASSIS)
(8310091150)
MP6 (CHASSIS)
(8610016330)
MP7 (CHASSIS)
(8610016340)
MP10 (CHASSIS)
(8930096800)
MP11 (CHASSIS)
(8930096810)
MP12 (CHASSIS)
(8930096820)
MP13 (CHASSIS)
(8930096830)
MP14 (CHASSIS)
(8930096840)
MP15 (CHASSIS)
(Refere to the parts list.)
MP16 (CHASSIS)
(8930096850)
EP1 (CHASSIS)
(Refere to the parts list.)
MP20 (CHASSIS)
(8830004260)
MP21 (CHASSIS)
(8830003900)
MP23 (CHASSIS)
(8930074350)
MP24 (CHASSIS)
(8930088050)
MP25 (CHASSIS)
(8930090100)
MP26 (CHASSIS)
(8850003421)
MP27 (CHASSIS)
(8930098360)
MP28 (CHASSIS)
(8930084870)
MP29 (CHASSIS)
(8930088670)
MP30 (CHASSIS)
(8930068980)
MP32 (CHASSIS)
(Refere to the parts list.)
MP34 (CHASSIS)×11
(8810011050)
MP35 (CHASSIS)
(8810009181)
MP36 (CHASSIS)
(8810009511)
MP37 (CHASSIS)×6
(8810011050)
MP38 (CHASSIS)×2
(8810010850)
MP39 (CHASSIS)
(8810011830)
MP40 (CHASSIS)
(8850003250)
MP41 (CHASSIS)
(Refere to the parts list.)
MP42 (CHASSIS)
(8930097220)
MP43 (CHASSIS)
(8930097830)
MP44 (CHASSIS)
(8930098420)
MP45 (CHASSIS)
(8930098420)
MP46 (CHASSIS)
(8930098430)
MP47 (CHASSIS)
(8930098410)
MP49 (CHASSIS)
(8930098420)
DS5 (LOGIC/-1)
(5030004360)
MP2 (LOGIC/-1)
(8930096860)
MP3 (LOGIC/-1)
(8930096870)
MP4 (LOGIC/-1)
(8930094680)
MP5 (LOGIC/-1)
(8210032890)
MP7 (LOGIC/-1)
(8930097820)
MP8 (LOGIC/-1)
(8930083700)
J5 (MAIN/-1)
(6450001060)
MP5 (MAIN/-1)
(8950009230)
MP10 (MAIN/-1)
(8930097700)
MP11 (MAIN/-1)
(8510022270)
MP12 (MAIN/-1)
(8510022260)
MP20 (MAIN/-1)
(8930070581)
MP21 (MAIN)
(8930085101)
MP22 (MAIN/-1)
(8930085111)
MP23 (MAIN/-1)
(8930058510)
MP24 (MAIN)
(8930084910)
MP21 (MAIN-1)
(8930072061)
MP2 (CHASSIS)
Apply all around
Apply the grease to the following area of the front panel
Used grease: G501 (80G) SHINETSU (8950002750)
The underlined parts have been updated from the previous version of the addendum, or the original page.
