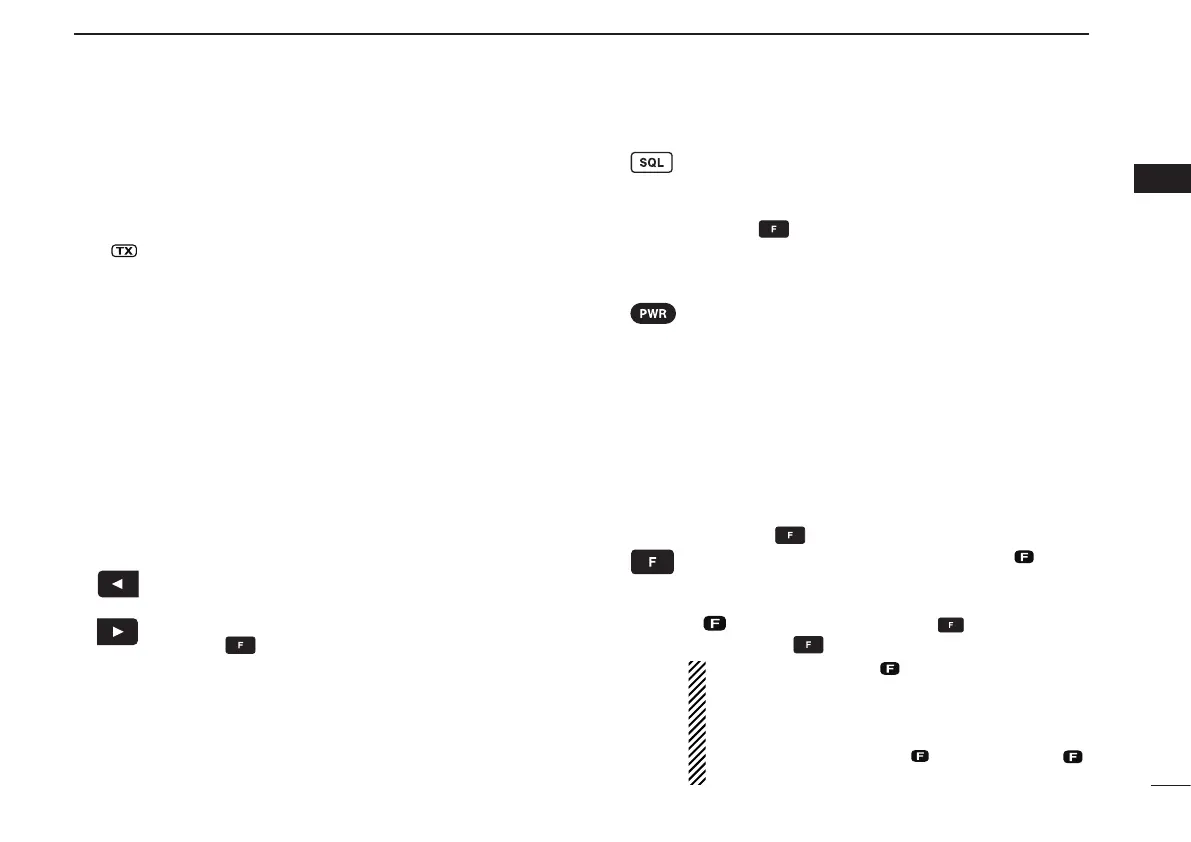

PANEL DESCRIPTION
q BACKLIGHT SWITCH [LIGHT]
Turns the backlight for display and keypad ON or OFF.
w PTT SWITCH [PTT] (p. 9)
Hold down to transmit; release to receive.
• “ ” appears on the function display while transmitting.
e VOLUME [VOL] (p. 9)
Adjusts the audio level.
r TUNING DIAL [DIAL] (pp. 8–12)
➥ Rotate [DIAL] to select the desired frequency, WX
channel number, BANK number and memory channel.
➥ Rotate [DIAL] to set the squelch level and beep tone
level.
t ANTENNA CONNECTOR [ANT] (p. 1)
Connect the supplied antenna here.
y RECALL CHANNEL UP/DOWN KEYS [Ω]/[≈] (p. 10)
➥ Push to enter the recall function mode.
➥ Push to call the stored frequency in the recall
mode.
➥ Push , then push [Ω]/[≈] to replace stored
recall frequencies to back or front.
u SQUELCH KEY [SQL•WX-ALERT] (p. 9)
➥ Push [SQL•WX-ALERT], then rotate [DIAL] to
select the squelch level.
• 24 squelch levels and squelch open (0) are available.
➥ Push , then push [SQL•WX-ALERT] to turn
the WX-alert function ON or OFF.
i POWER SWITCH [PWR] (pp. 9, 25)
➥ Hold down for 2 seconds to turn the power ON
or OFF.
➥ While holding down [MR•MW], push [PWR] to
enter the cloning function mode.
o EXTERNAL SPEAKER AND MICROPHONE JACKS
[MIC/SP] (p. 33)
If desired, connect an OPC-499 HEADSET ADAPTER and
headset.
!0 FUNCTION KEY [ ]
Push to call up the function indicator, “ ”, then
push another key to access its secondary func-
tion.
• “ ” appears for 3 seconds after is pushed; at this
time
pushing again cancels the indication.
NOTE: In general, “ ” disappears when an-
other key is pushed to activate a secondary
function. However, some keys which have
more than one secondary function, (such as
[DUP]), do not cancel “ ”. In this case, “ ”
automatically disappears after 3 seconds
