PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
q w
t
SpeakerFunction display (p. 2)
r
e

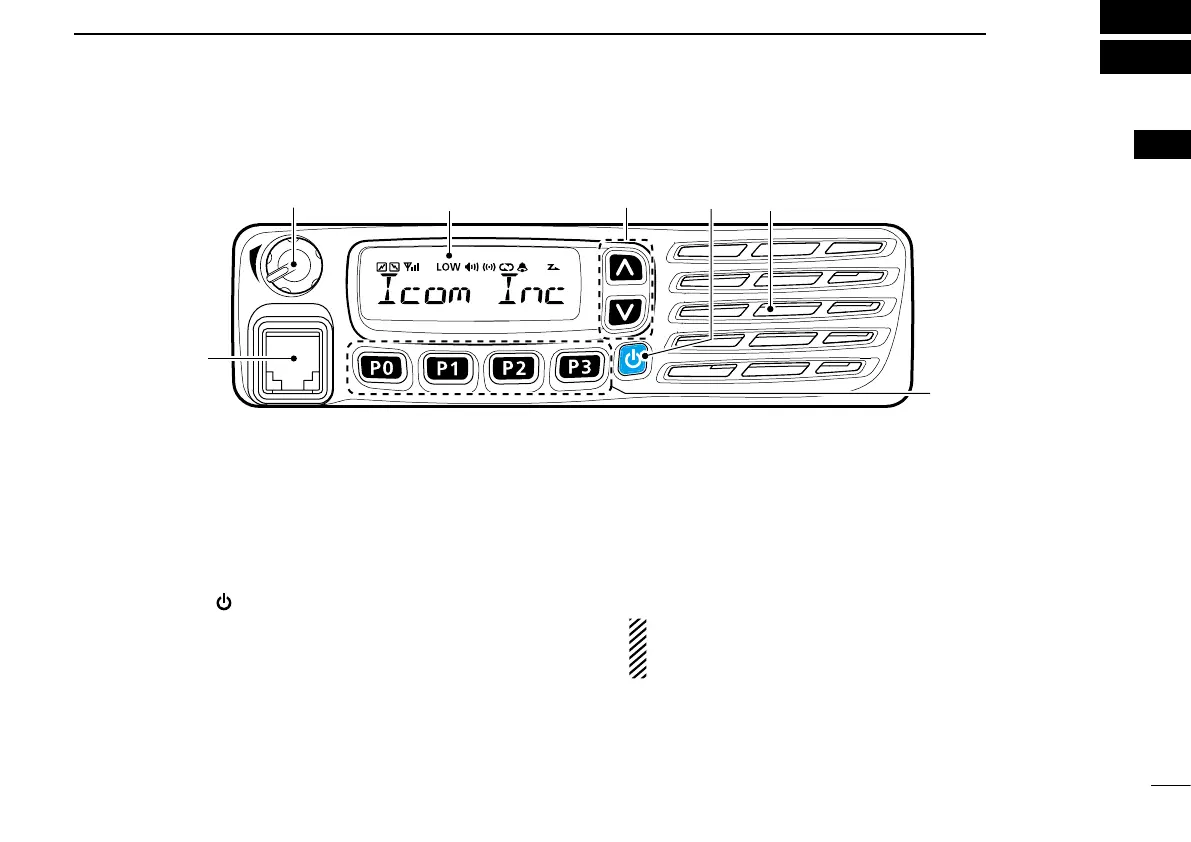

Front panel
■
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the audio output level.
•Minimumaudiolevelispreprogrammed.(p.8)
w UP/DOWN KEYS [UP]/[DOWN]
Push to select an operating channel and so on.
* The desired function can be assigned by your dealer. (p. 3)
e POWER KEY [ ]
Push to turn the power ON or OFF.
•ThefollowingoptionalfunctionsareavailableatpowerON:
- Automatic scan start
- Password prompt
r DEALER-PROGRAMMABLE KEYS
Required functions can be independently programmed by
your dealer. (p. 3)
t MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
See page 10 for detail of the PTT switch and a hanger
hook operations.
NEVER connect non-specified microphones. The pin
assignments may be different and may damage the
transceiver.
