PANEL DESCRIPTION

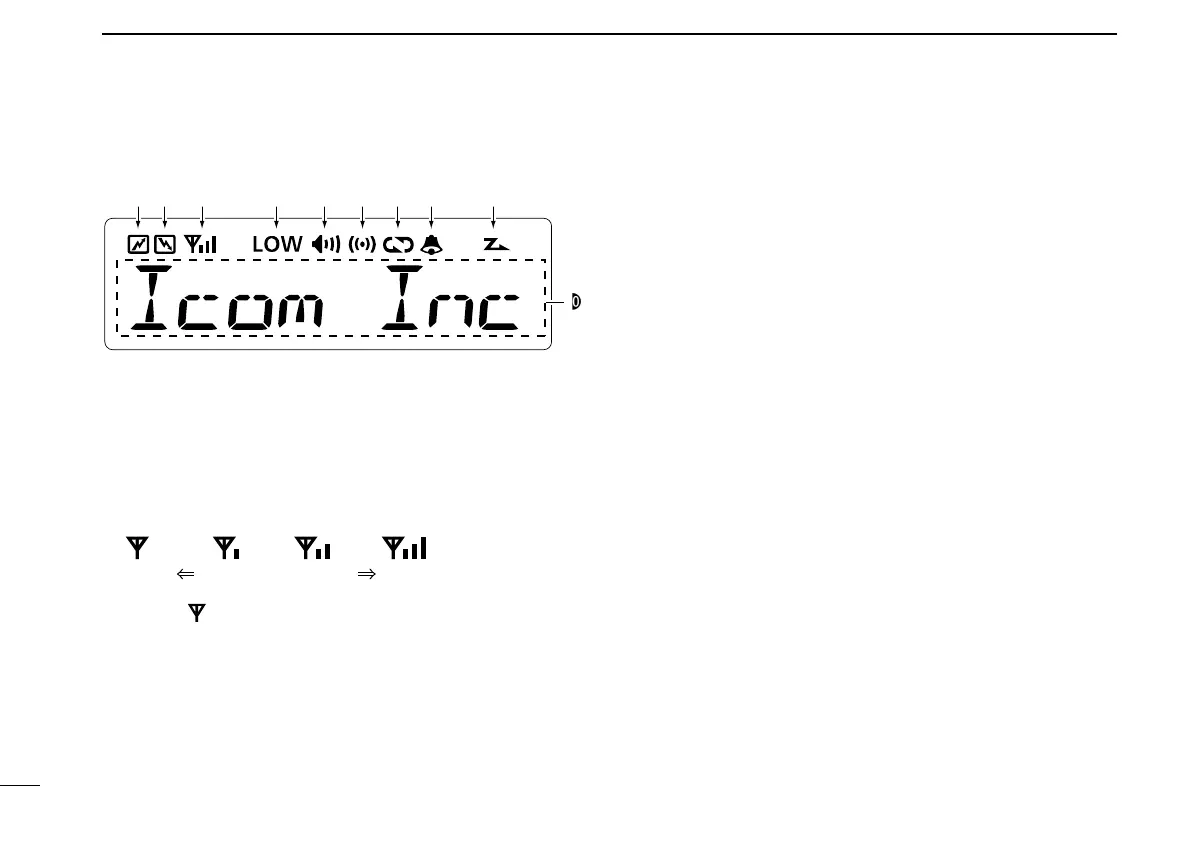

Function display
■
q TRANSMIT ICON
Appears while transmitting a signal.
w BUSY ICON
Appears while the channel is busy (receiving).
e SIGNAL STRENGTH ICON
Shows the relative receive signal strength level.
Weak Receive Signal level Strong
About “ ” icon for the Trunking mode
Disappears while in the no service area. ➥
Blinks while registering to the repeater. ➥
Appears when the registration is completed. ➥
r LOW POWER ICON
Appears when low output power is selected.
t AUDIBLE ICON
In the analog mode, appears when the CTCSS (DTCS) ➥
squelch mute is released while holding down [Monitor].
In the digital mode, appears while holding down [Moni- ➥
tor].
y GPS ICON
Appears when the GPS receiver acquires the received
GPS signal from a satellite.
u ENCRYPTION ICON
In the digital mode, appears when the encryption function
is activated.
i BELL ICON
In the digital mode, appears/blinks when a SDM (Short
Data Message), Status Call or Call Alert is received, de-
pending on the preprogramming.
o SCAN ICON
Blinks during a scan. ➥
Appears when a scan channel is selected. ➥
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
User Set mode contents, and so on.
