e
r
Antenna
Black
Red
12V
Battery
Solder
Crimp

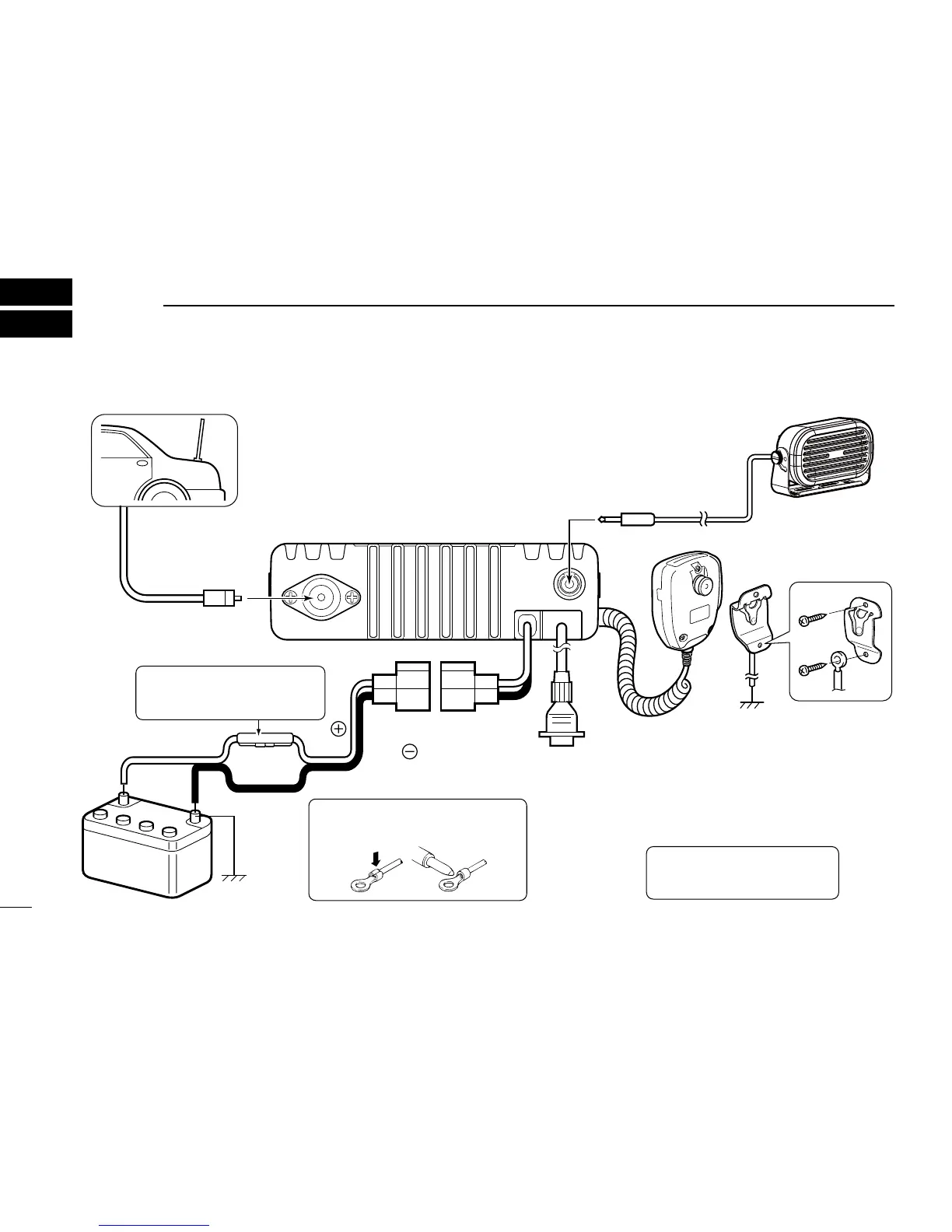

NOTE: Use the terminals as shown
below for the cable connections.
q ANTENNA CONNECTOR
Connects to an antenna. Contact
your dealer about antenna selec-
tion and placement.
q
w
w EXTERNAL SPEAKER JACK
Connect a 4–8 ø external speaker.
e MICROPHONE HANGER
Connect the supplied micro-
phone hanger to the vehicle’s
ground for microphone on/off
hook functions. (See p. 1)
r OPTIONAL CABLE (OPC-1939)
t
t DC POWER RECEPTACLE
Connects to a 12 V DC battery.
Pay attention to polarities.
Optional speaker
Connect an external modem,
dimmer control, etc.
R WARNING! NEVER remove
the fuse-holder from the DC
power cable.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
