CONNECTION AND MAINTENANCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

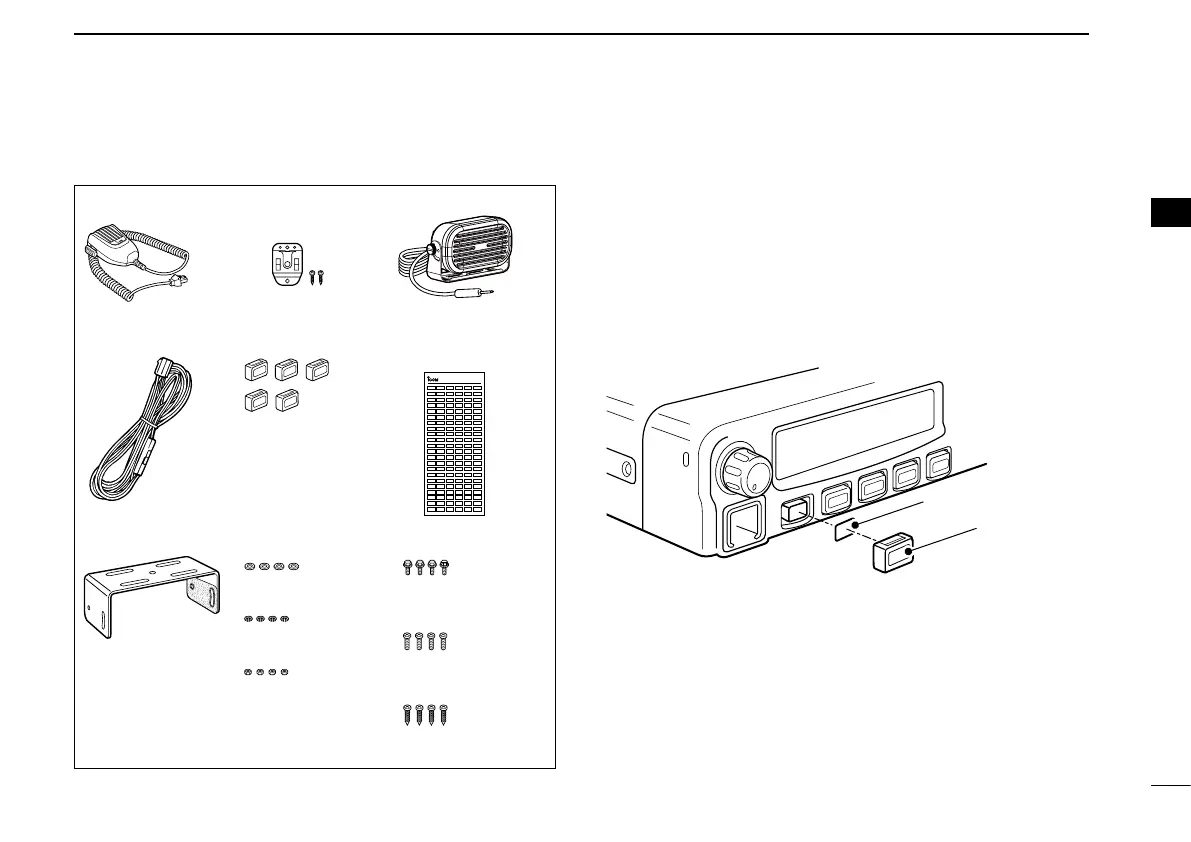

n Supplied Accessories
KEY-STICKER
Microphone
Microphone hanger
and screw set
DC power cable
Mounting bracket
Speaker*
1
Key caps
Function name
stickers*
2
Flat washers
Spring washers
Bracket bolts
Mounting screws
(M5×12)
Self-tapping screws
(M5×16)
Nuts
*
2
10-key type only
Used for labelling the program-
mable function keys according
to their assinged functions.
*
1
• Function name stickers
There are no names on the programmable function keys
since the functions can be freely assigned to these keys.
Attach the supplied function name stickers as below to the
appropriate keys for easy recognition of that key’s assigned
function.
Then, protect the attached stickers from unsticking with the
supplied key cap as below.
Function name sticker
Key cap
