Icom IC-FR3100 Service Manual

429.925 (RX)
400.275 (TX)
429.925 (RX)
429.725 (TX)
415.075 (RX)
415.275 (TX)
400.075 (RX)
400.275 (TX)
400.075 (RX)
400.275 (TX)
415.075 (RX)
415.275 (TX)
415.075 (RX)
415.275 (TX)
400.075 (RX)
400.275 (TX)
429.925 (RX)
429.725 (TX)
415.075 (RX)
415.275 (TX)
415.075 (RX)
415.275 (TX)
415.075 (RX)
415.275 (TX)
410.275 (RX)
415.275 (TX)
410.275 (RX)
415.275 (TX)
A01
A02
A03
A04
A05
A06
A07
A08
A09
A10
A11
A12
A13
A14
4 - 4
A01 LW TXREF 127
Adjustment frequency channel
TX power (LOW)
Band width (WIDE)
Adjustment value
Adjustment item

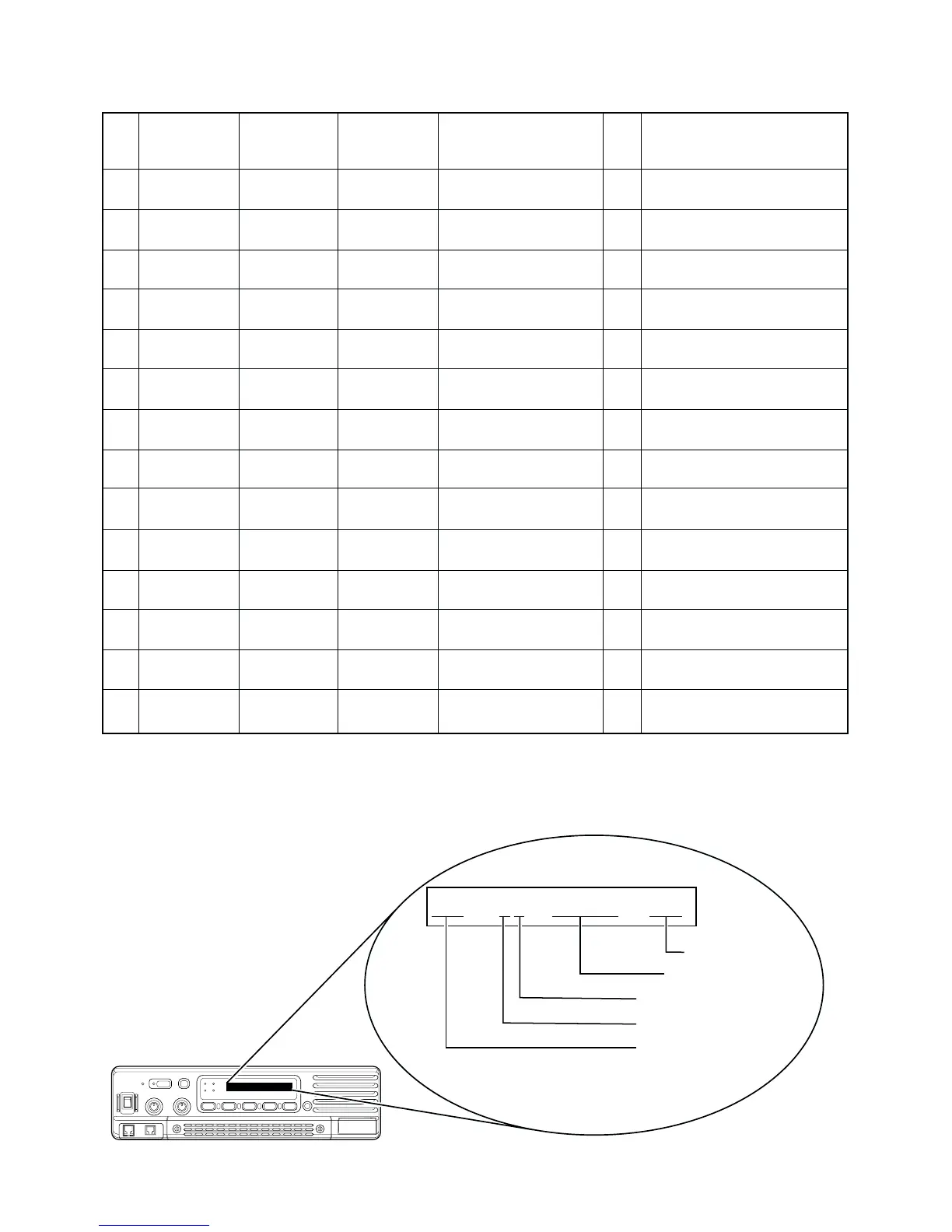

■ LCD DISPLAY IN THE ADJUSTMENT MODE
449.925 (RX)
430.275 (TX)
449.925 (RX)
449.725 (TX)
440.075 (RX)
440.275 (TX)
430.075 (RX)
430.275 (TX)
430.075 (RX)
430.275 (TX)
440.075 (RX)
440.275 (TX)
440.075 (RX)
440.275 (TX)
430.075 (RX)
430.275 (TX)
449.925 (RX)
449.725 (TX)
440.075 (RX)
440.275 (TX)
440.075 (RX)
440.275 (TX)
440.075 (RX)
440.275 (TX)
435.275 (RX)
440.275 (TX)
435.275 (RX)
440.275 (TX)
■ ADJUSTMENT MODE FREQUENCY LIST
A01 LW TXREF 127
A02 LW HRTUN 115
A03 LW MRTUN 088
A04 LW LRTUN 055
A05 LW RPTSQL 150
A06 HW POWER 166
A07 LW M DEV 143
A08 LW LMODC 073
A09 LW HMODC 191
A10 LW CTCDEV 134
A11 LW DTCADJ 159
A12 LN CTCDEV 062
A13 LW RPTAF 141
A14 LN RPTAF 126
W
W
W
W
W
W
W
W
W
W
W
N
W
N
TVCO/RVCO adjustment.
Reference frequency adjustment.
NONE
RX sensitivity adjustment.
NONE
RPT SQL adjustment.
TX power adjustment.
TX modulation adjustment.
TX modulation adjustment.
TX modulation adjustment.
CTCSS modulation adjustment.
DTCS modulation adjustment.
CTCSS modulation adjustment.
(NARROW)
RPT modulation adjustment.
(WIDE)
RPT modulation adjustment.
(NARROW)
LCD DISPLAY ADJUSTMENT
[GEN2], [GEN6]
(MHz)
W/N
[USA1], [GEN1], [GEN5], [EUR1], [FRG1]: 400–430 MHz version
[GEN2], [GEN6]: 430–450 MHz version
[USA3], [GEN3], [GEN7], [EUR3], [FRG3]: 450–480 MHz version
LCD display’s detail as shown below. A number of 3 figures is a adjustment value (sample).
479.925 (RX)
450.275 (TX)
479.925 (RX)
459.725 (TX)
465.075 (RX)
465.275 (TX)
450.075 (RX)
450.275 (TX)
450.075 (RX)
450.275 (TX)
465.075 (RX)
465.275 (TX)
465.075 (RX)
465.275 (TX)
450.075 (RX)
450.275 (TX)
479.925 (RX)
479.725 (TX)
465.075 (RX)
465.275 (TX)
465.075 (RX)
465.275 (TX)
465.075 (RX)
465.275 (TX)
460.275 (RX)
465.275 (TX)
460.275 (RX)
465.275 (TX)
[USA3], [GEN3],
[GEN7], [EUR3],
[FRG3] (MHz)
CH
[USA1], [GEN1],
[GEN5], [EUR1],
[FRG1] (MHz)
