9 - 8
¡¡

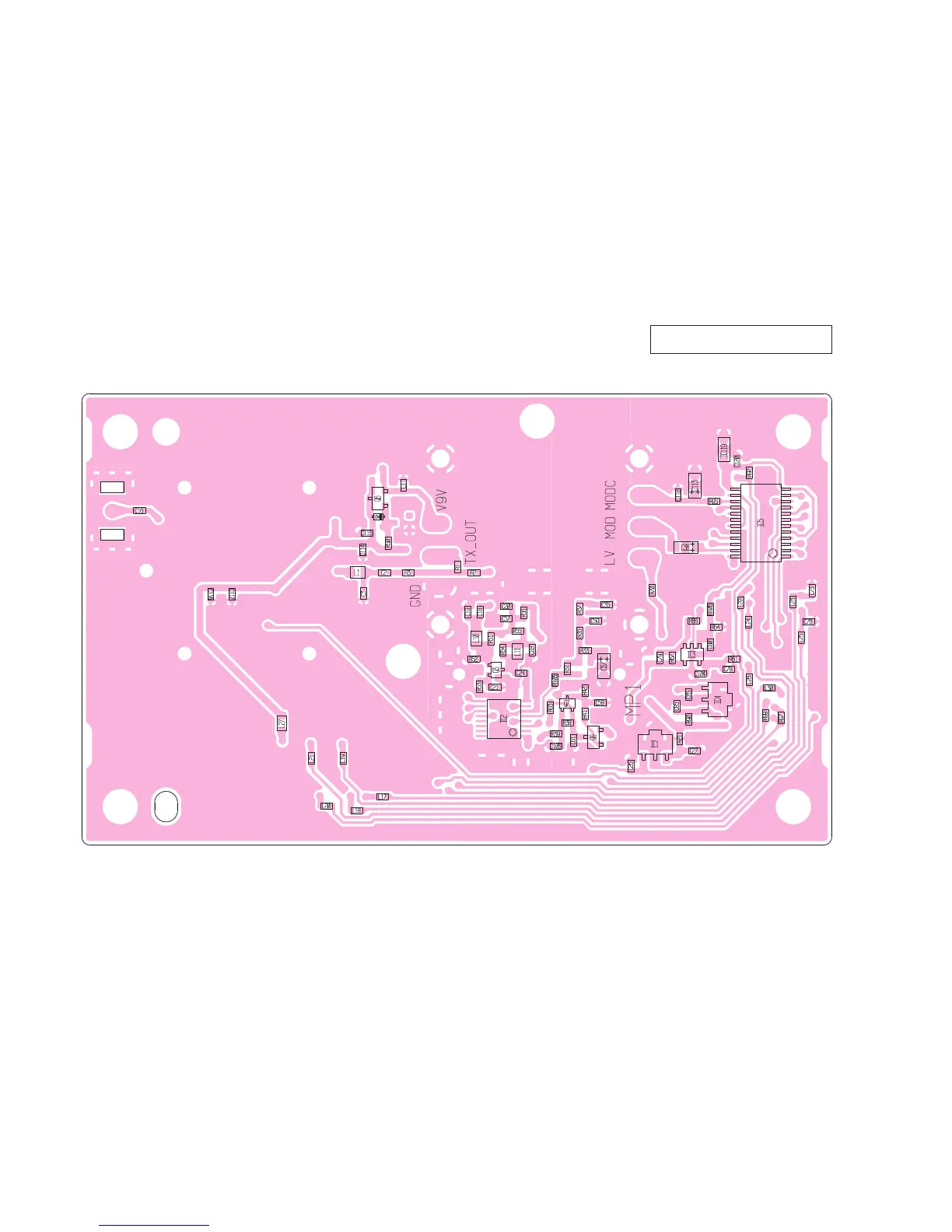

BOTTOM VIEW
TX UNIT
The combination of this page and the previous page
shows the unit layout in the same configuration as the
actual P.C. Board.
