Icom IC-GM1600E - Charging Connections for BP-224; Charging Connections for BP-252

18
7
BATTERY CHARGING (FOR ON-BOARD USE ONLY)
D Charging connections for BP-224
(China version only)
q Attach the BC-158 to a flat surface, such as a desk.

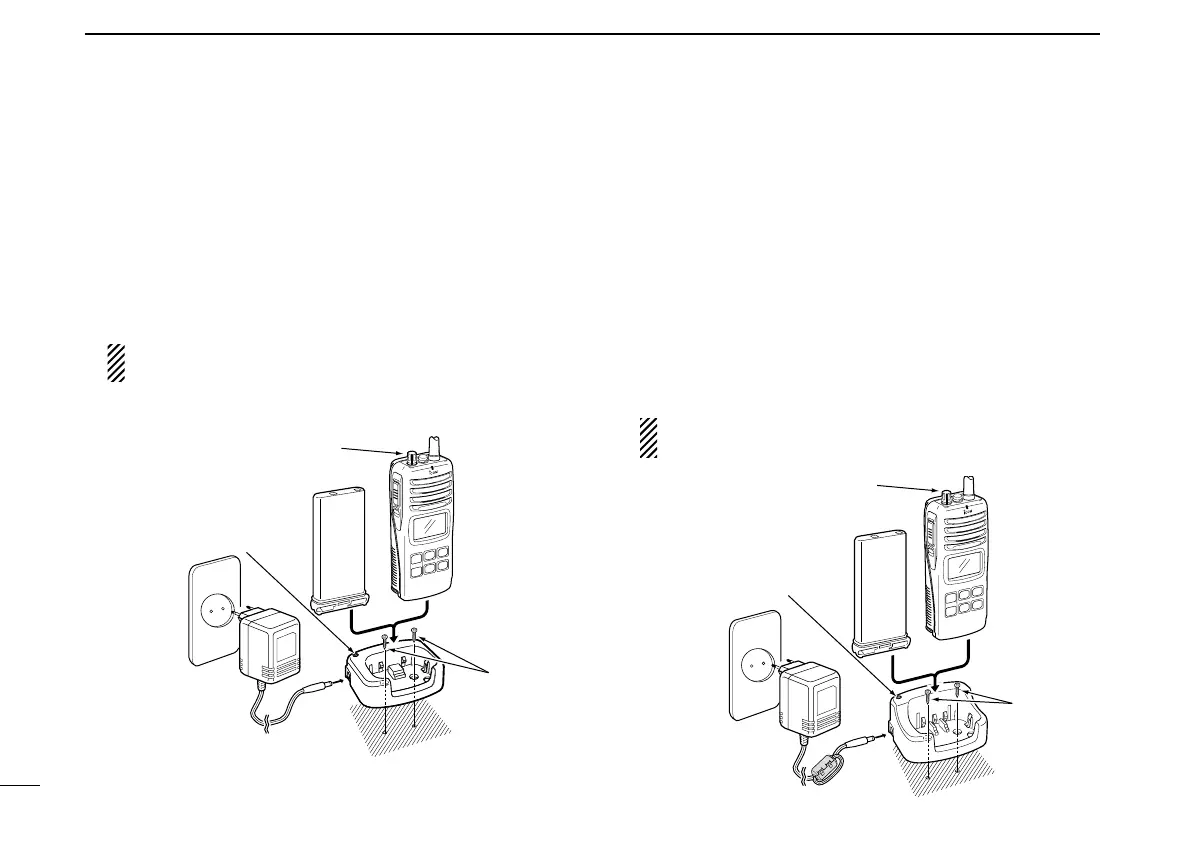

w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into
the charger.
• The charge indicator lights green.
r Charge the battery pack approx. 8 hours, depending on
the remaining power condition.
DO NOT charge the BP-224 more than 12 hours. Oth-
erwise, the BP-224 will be damaged.
D Changing connections for BP-252
(Except China version)
q Attach the supplied ferrite core to the AC adapter. (p. 17)
w Attach the BC-173 to a flat surface, such as a desk.
e Connect the AC adapter as shown right.
r Insert the battery pack with/without the transceiver into
the charger.
• The charger indicator lights orange.
• The charger indicator blinks orange (or orange/green alter-
nately) when the protector is activated.
t Charge the battery pack approx. 10 hours, depending on
the remaining power condition.
• The charger indicator lights green when charging is completed.
NOTE : The battery charger , BC-173, has a charging timer .
The timer stops the charging process after 14 hours ( approx .).
AC adapter
Supplied
screws
MIC
/SP
IC-GM1600E
BP-252
BC-173
Tu rn power OFF
Charge indicator lights
orange when the battery
pack (with/without the
transceiver) is inserted.
MIC
/SP
AC adapter
Supplied
screws
Tu rn power OFF
BP-224
IC-GM1600E
BC-158
Charge indicator lights
green when the battery
pack (with/without the
transceiver) is inserted.
