Icom IC-H6

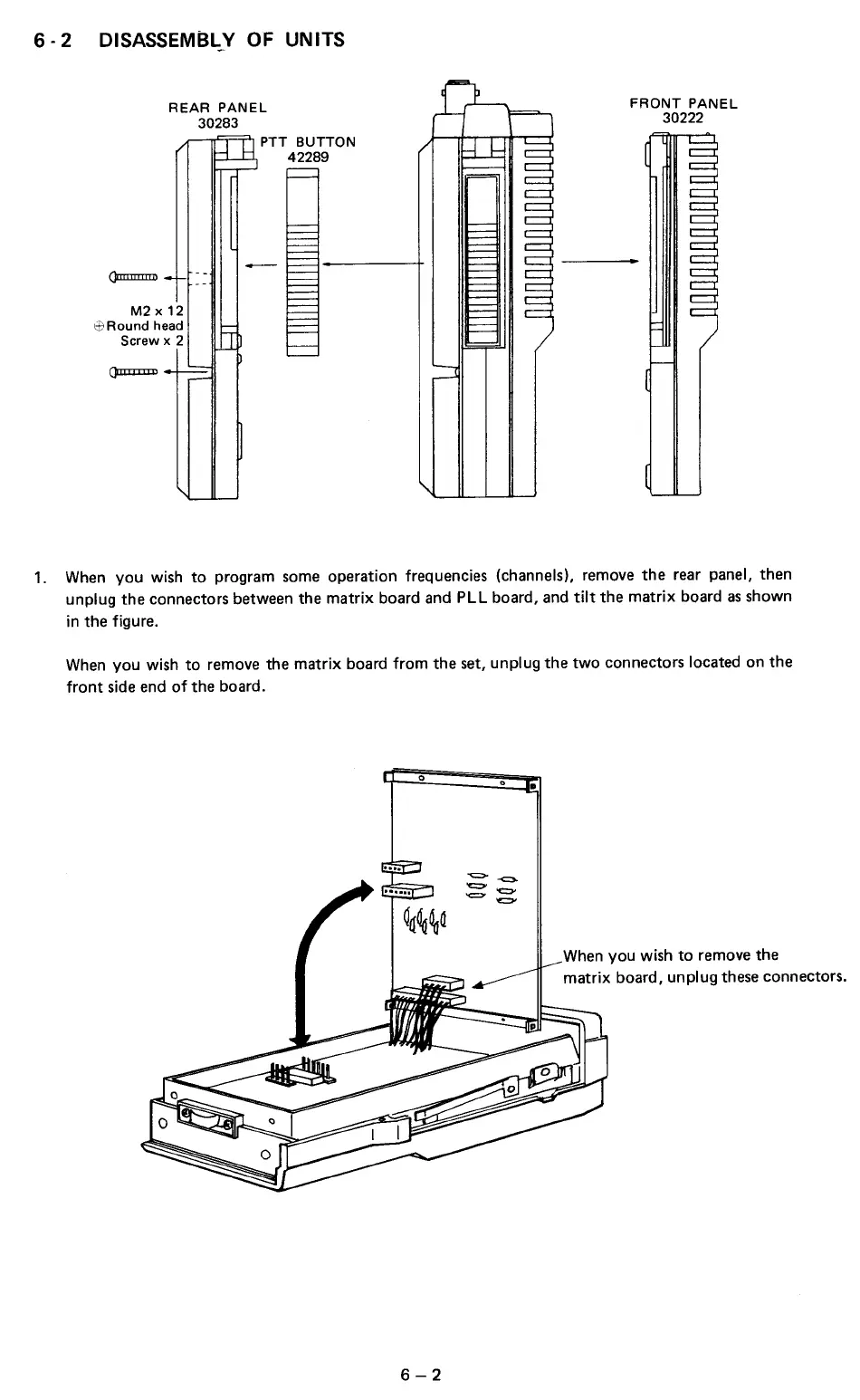

6 - 2 DISASSEMBLY OF UNITS
REAR PANEL
30283
M2 x 12
ifJRound head
Screw x 2
~__.,..,:;==;::>, PTT BUTTON
42289
FRONT PANEL
30222
1. When you wish to program some operation frequencies (channels), remove the rear panel, then
unplug the connectors between the matrix board and PLL board, and tilt the matrix board as shown
in the figure.
When you wish
to remove the matrix board from the set, unplug the two connectors located on the
front side end of the board.
When you wish
to remove the
matrix board, unplug these connectors.
6-2
