Icom IC-M36 Service Manual

2 - 1
SECTION 2
.

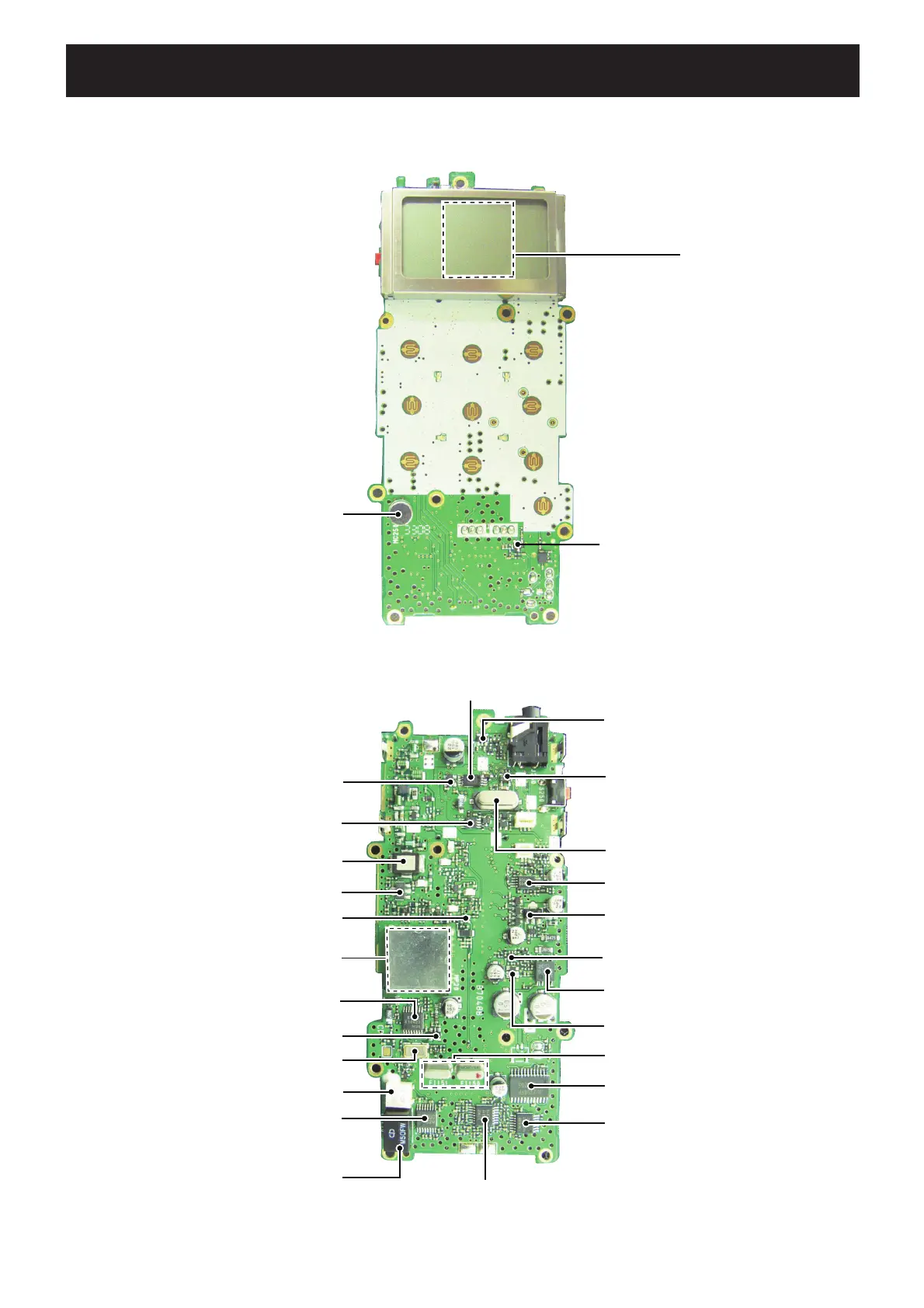

INSIDE VIEWS
CPU (under the LCD)
(IC360)
VCO
• MAIN UNIT
(TOP VIEW)
• MAIN UNIT
(BOTTOM VIEW)
1st IF MIXER
(Q150)
QUAD OP AMP (AF FILETR/AF AMPs)
(IC200)
INTERNAL MICROPHONE
(MC250)
“VCC” LINE SWITCH
(Q353)
1ST IF FILTERS
(FI150, 151)
1ST IF AMP
(Q151)
AF POWER AMP
(IC362)
CPU CLOCK
(X360)
AF POWER AMP SWITCH
(Q230)
PLL IC
(IC1)
REFERENCE FREQUENCY OSCILLATOR
(X1)
2ND IF FILTER
(FI170)
PRE-DRIVER AMP
(Q53)
TX POWER AMP
(Q54)
IF IC
(IC170)
DISCRIMINATOR
(X170)
3V REGULATOR
(IC2)
INVERTER (data interface)
(IC364)
“CPU5V” LINE REGULATOR
(IC220)
AF MUTE SWITCH
(IC260)
D/A CONVERTER
(IC190)
AF POWER AMP REGULATOR
(Q231)
AMBIENT NOISE AMP
(IC363)
5V REGULATOR
(Q225)
CPU RESET IC
(IC341)
EEPROM
(IC340)

Icom IC-M36 Specifications

General

Purpose	Marine Radio Service
Operating frequency	156.025 – 157.425 MHz
Antenna connector type	FA-SC58V
Number of antenna connectors	1
Battery type	BP-252
Battery life (max)	8 h
Battery low indication	Yes
Product color	Black
Waterproof up to	1 m
International Protection (IP) code	IP57
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	43 mm
Width	62 mm
Height	139.5 mm
Weight	295 g
