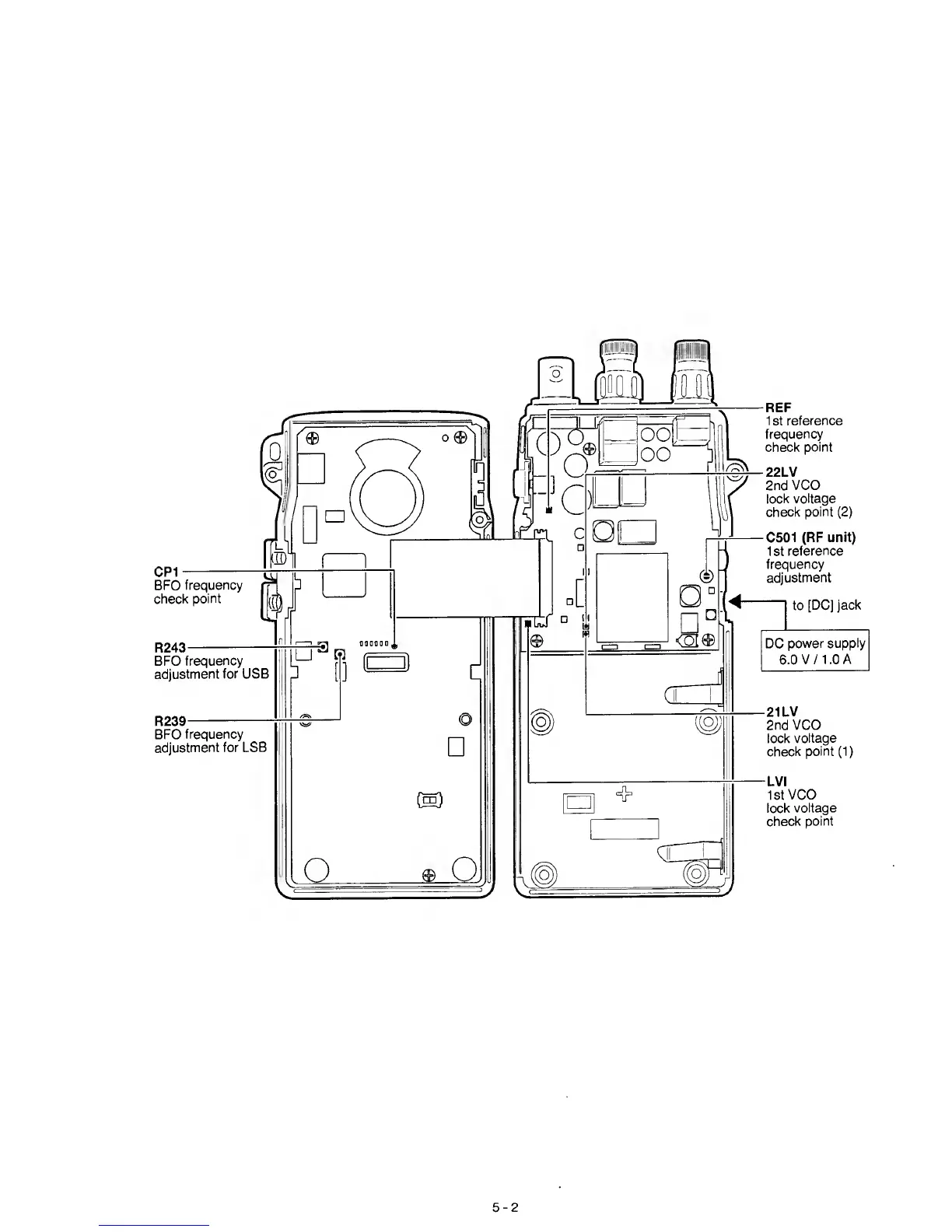

CP1
BFO frequency
check
point
R243-
BFO
frequency
adjustment
for USB
R239-
BFO
frequency
adjustment for
LSB
REF
1
St
reference
frequency
check point
22LV
2nd VCO
iock
voltage
check
point
(2)
C501
(RF unit)
1
St
reference
frequency
adjustment
to
[DC] jack
DC
power suppiy
6.0 V/
1.0 A
21
LV
2nd VCO
iock
voltage
check
point
(1
)
LVI
1st
VCO
lock
voltage
check
point
5-2
