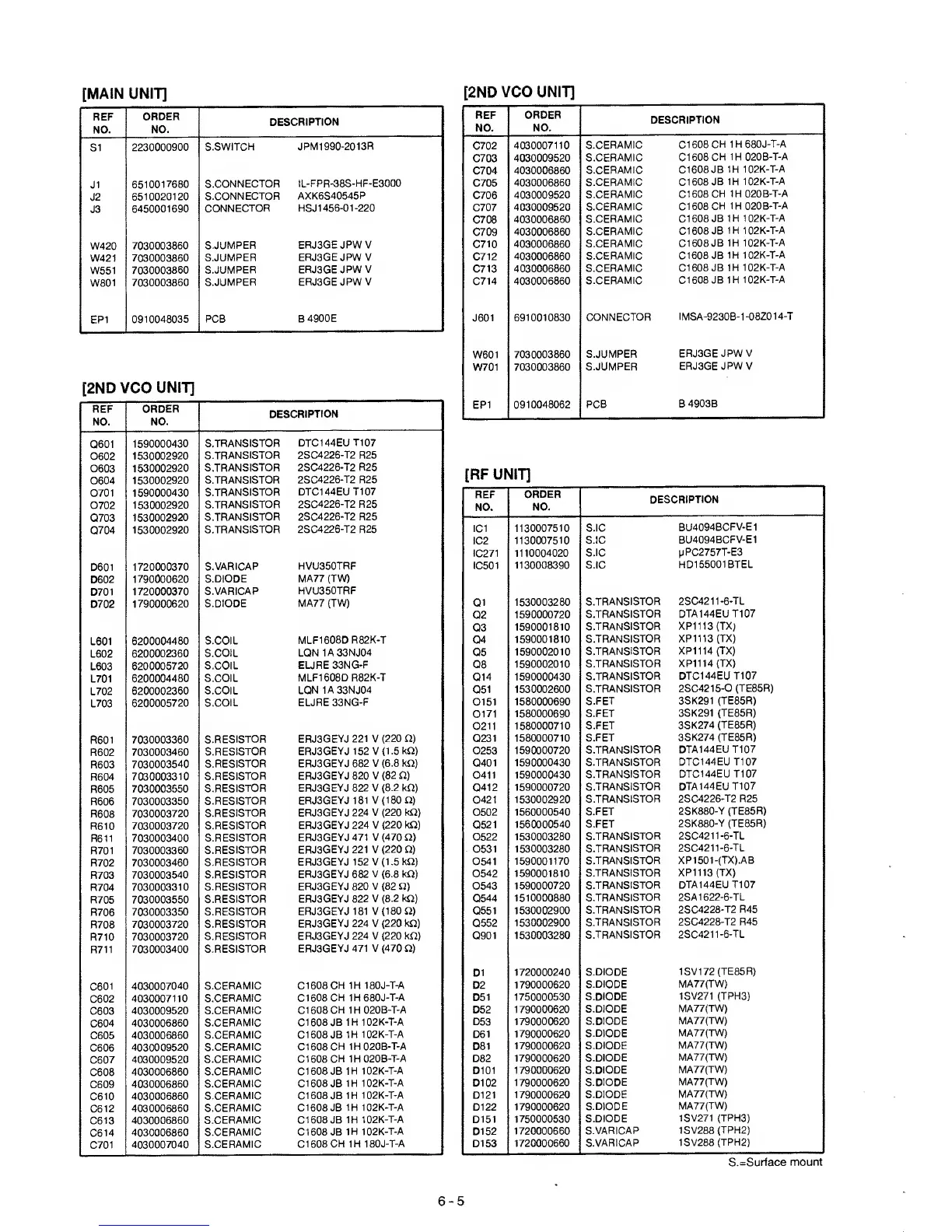

Icom IC-R10 Service Manual

[MAIN UNIT]
REF
NO.
ORDER
NO.
DESCRIPTION
SI
2230000900
S.SWITCH
JPM1990-2013R
J1
6510017680
S.CONNECTOR
1L-FPR-38S-HF-E3000
J2
6510020120
S.CONNECTOR
AXK6S40545P
J3
6450001690
CONNECTOR
HSJ1456-01-220
W420
7030003860
S.JUMPER
ERJ3GE JPW V
W421
7030003860
S.JUMPER
ERJ3GE JPW V
W551
7030003860
S.JUMPER ERJ3GE
JPW V
W801
7030003860
S.JUMPER
ERJ3GEJPW V
EP1
0910048035
PCB B
4900E
[2ND
VCO UNIT]
[2ND VCO
UNIT]
REF
NO.
ORDER
NO.
DESCRIPTION
Q601
1590000430
S.TRANSISTOR
DTC144EU
T107
Q602
1530002920
S.TRANSISTOR
2SC4226-T2 R25
Q603
1530002920
S.TRANSISTOR
2SC4226-T2
R25
Q604
1530002920
S.TRANSISTOR
2SC4226-T2 R25
Q701
1590000430
S.TRANSISTOR
DTC144EU T107
0702
1530002920
S.TRANSISTOR
2SC4226-T2
R25
0703
1530002920
S.TRANSISTOR
2SC4226-T2 R25
0704 1530002920
S.TRANSISTOR 2SC4226-T2
R25
D601
1720000370 S.
VARICAP
HVU350TRF
D602
1790000620
S.DIODE
MA77 (TW)
D701
1720000370
S.VARICAP
HVU350TRF
0702
1790000620
S.DIODE
MA77
(TW)
L601
6200004480
S.COIL
MLF1608D R82K-T
L602
6200002360
S.COIL
LQN 1A33NJ04
L603
6200005720
S.COIL
ELJRE
33NG-F
L701
6200004480
S.COIL
MLF1608D R82K-T
L702
6200002360 S.COIL
LQN 1A33NJ04
L703
6200005720
S.COIL
ELJRE
33NG-F
R601
7030003360
S.RESISTOR
ERJ3GEYJ
221
V (220
Q)
R602
7030003460
S.RESISTOR
ERJ3GEYJ 152
V(1.5kfl)
R603
7030003540
S.RESISTOR
ERJ3GEYJ 682 V (6.8
kQ)
R604
7030003310
S.RESISTOR
ERJ3GEYJ 820 V (82
Q)
R605
7030003550
S.RESISTOR
ERJ3GEYJ
822 V (8.2
kO)
R606
7030003350
S.RESISTOR
ERJ3GEYJ
181 V(180Q)
R608
7030003720
S.RESISTOR
ERJ3GEYJ
224 V
(220
kfi)
R610
7030003720 S.RESISTOR
ERJ3GEYJ
224 V (220
k«)
R611 7030003400
S.RESISTOR
ERJ3GEYJ471
V(470£l)
R701
7030003360
S.RESISTOR
ERJ3GEYJ 221 V (220
£2)
R702
7030003460
S.RESISTOR
ERJ3GEYJ 152
V(1.5k£2)
R703
7030003540
S.RESISTOR
ERJ3GEYJ 682
V
(6.8
k£2)
R704
7030003310
S.RESISTOR
ERJ3GEYJ 820
V
(82
£2)
R705 7030003550
S.RESISTOR ERJ3GEYJ
822 V (8.2
kQ)
R706
7030003350
S.RESISTOR
ERJ3GEYJ 181 V(180£2)
R708
7030003720
S.RESISTOR
ERJ3GEYJ 224 V (220 k£2)
R710
7030003720
S.RESISTOR
ERJ3GEYJ
224
V (220 kQ)
R711
7030003400
S.RESISTOR
ERJ3GEYJ
471 V
(470 £2)
C601
4030007040
S.CERAMIG
C1608CH 1H
180J-T-A
C602
4030007110
S.CERAMIC
C1608CH
1H680J-T-A
C603
4030009520
S.CERAMIC
C1608CH 1H
020B-T-A
C604
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
C605
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
C606
4030009520
S.CERAMIC
C1608CH
1H020B-T-A
C607
4030009520
S.CERAMIC
C1608CH
1H020B-T-A
C608
4030006860
S.CERAMIC
C1608
JB
1H 102K-T-A
C609
4030006860
S.CERAMIC C1608 JB
1H
102K-T-A
C610
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
C612
4030006860
S.CERAMIC C1608
JB 1H
102K-T-A
C613
4030006860
S.CERAMIC C1608
JB 1H
102K-T-A
C614
4030006860
S.CERAMIC C1608 JB
1H
102K-T-A
C701
4030007040
S.CERAMIC
C1608CH 1H
180J-T-A
ORDER
NO.
DESCRIPTION
4030007110
S.CERAMIC
Cl 608
CH
1H680J-T-A
4030009520
S.CERAMIC
C1608CH
1H
020B-T-A
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
4030009520
S.CERAMIC
C1608CH
1H020B-T-A
4030009520
S.CERAMIC
Cl 608
CH 1H
020B-T-A
4030006860
S.CERAMIC
C1608JB
1H
102K-T-A
4030006860
S.CERAMIC
C1608JB
1H
102K-T-A
4030006860
S.CERAMIC C1608
JB 1H
102K-T-A
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
4030006860
S.CERAMIC
C1608JB 1H
102K-T-A
6910010830
CONNECTOR
IMSA-9230B-1-08Z014-T
7030003860
S.JUMPER
ERJ3GE JPW
V
7030003860
S.JUMPER
ERJ3GE
JPW
V
0910048062
PCB
B
4903B
REF
NO.
ORDER
1
NO.
i
DESCRIPTION
IC1
1130007510 S.IC
BU4094BCFV-E1
iS
1130007510
S.IC
BU4094BCFV-E1
sSI
1110004020
S.IC
^JPC2757T-E3
IC501
1130008390
S.IC
HD155001BTEL
Q1
1530003280
S.TRANSISTOR
2SC4211-6-TL
Q2
1590000720
S.TRANSISTOR
DTA144EUT107
Q3
1590001810
S.TRANSISTOR
XP1113(TX)
Q4
1590001810
S.TRANSISTOR
XP1113 (TX)
Q5
1590002010
S.TRANSISTOR
XP1114(TX)
Q8
1590002010
S.TRANSISTOR
XP1114 (TX)
014 1590000430
S.TRANSISTOR DTC144EU
T107
051 1530002600
S.TRANSISTOR
2SC4215-0(TE85R)
0151
1580000690
S.FET
3SK291
(TE85R)
0171 1580000690
S.FET
3SK291
(TE85R)
0211 1580000710
S.FET
3SK274
(TE85R)
0231
1580000710
S.FET
3SK274 (TE85R)
0253
1590000720
S.TRANSISTOR
DTA144EUT107
0401
1590000430
S.TRANSISTOR
DTC144EU T107
0411 1590000430
S.TRANSISTOR
DTC144EUT107
0412 1590000720
S.TRANSISTOR
DTA144EU
T107
0421 1530002920
S.TRANSISTOR
2SC4226-T2 R25
0502
1560000540
S.FET
2SK880-Y
(TE85R)
0521
1560000540
S.FET
2SK880-Y
(TE85R)
0522
1530003280
S.TRANSISTOR
2SC4211-6-TL
0531 1530003280
S.TRANSISTOR
2SC4211-6-TL
0541 1590001170
S.TRANSISTOR
XP1501-(TX).AB
0542
1590001810
S.TRANSISTOR
XP1113(TX)
0543
1590000720
S.TRANSISTOR
DTA144EUT107
0544
1510000880
S.TRANSISTOR
2SA1622-6-TL
0551 1530002900
S.TRANSISTOR
2SC4228-T2
R45
0552
1530002900
S.TRANSISTOR
2SC4228-T2
R45
0901 1530003280
S.TRANSISTOR
2SC4211-6-TL
D1
1720000240
S.DIODE
1SV172
(TE85R)
D2
1790000620
S.DIODE
MA77(TW)
D51
1750000530
S.DIODE
1SV271 (TPH3)
D52
1790000620
S.DIODE
MA77(TW)
D53 1790000620
S.DIODE
MA77(TW)
D61 1790000620
S.DIODE
MA77(TW)
D81
1790000620 S.DIODE
MA77(TW)
D82
1790000620
S.DIODE
MA77(TW)
D101
1790000620
S.DIODE
MA77(TW)
D102
1790000620
S.DIODE
MA77(TW)
D121
1790000620 S.DIODE
MA77(TW)
D122
1790000620
S.DIODE
MA77(TW)
D151
1750000530
S.DIODE
1SV271
(TPH3)
D152
1720000660
S.VARICAP
1SV288
(TPH2)
D153
1720000660
S.VARICAP
1SV288
(TPH2)
6-5
