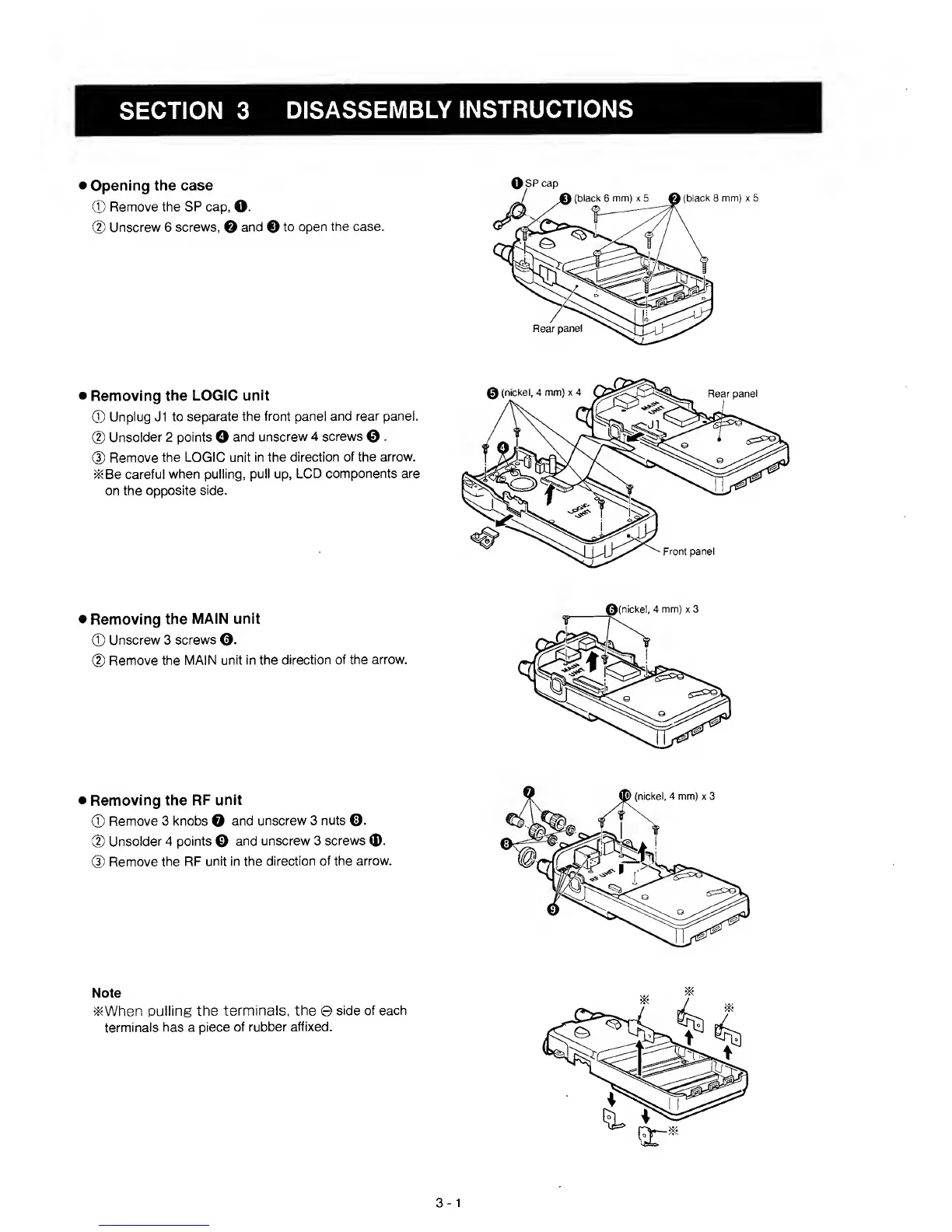

SECTION 3
DISASSEMBLY
INSTRUCTIONS
Opening the case
®
Remove the
SP cap,
O-
@
Unscrew 6
screws,
O
and
0
to
open the case.
Removing
the LOGiC
unit
®
Unplug J1 to
separate the
front panel and
rear panel.
@
Unsolder
2
points
O
and
unscrew 4 screws
0
.
(D
Remove the
LOGIC unit in the
direction of the
arrow.
iJ^Be careful when
pulling, pull up,
LCD components
are
on
the opposite
side.
Removing
the MAiN
unit
®
Unscrew 3
screws
©.
(D
Remove the
MAIN unit in the
direction of the
arrow.
Removing the
RF unit
®
Remove 3
knobs
O
and
unscrew
3
nuts
0.
@
Unsolder
4
points
0
and unscrew 3
screws
®.
@
Remove
the RF
unit in the
direction of the
arrow.
Note
•)KWhen
pulling the
terminals, the
©
side of each
terminals
has a piece
of rubber
affixed.
3-1
