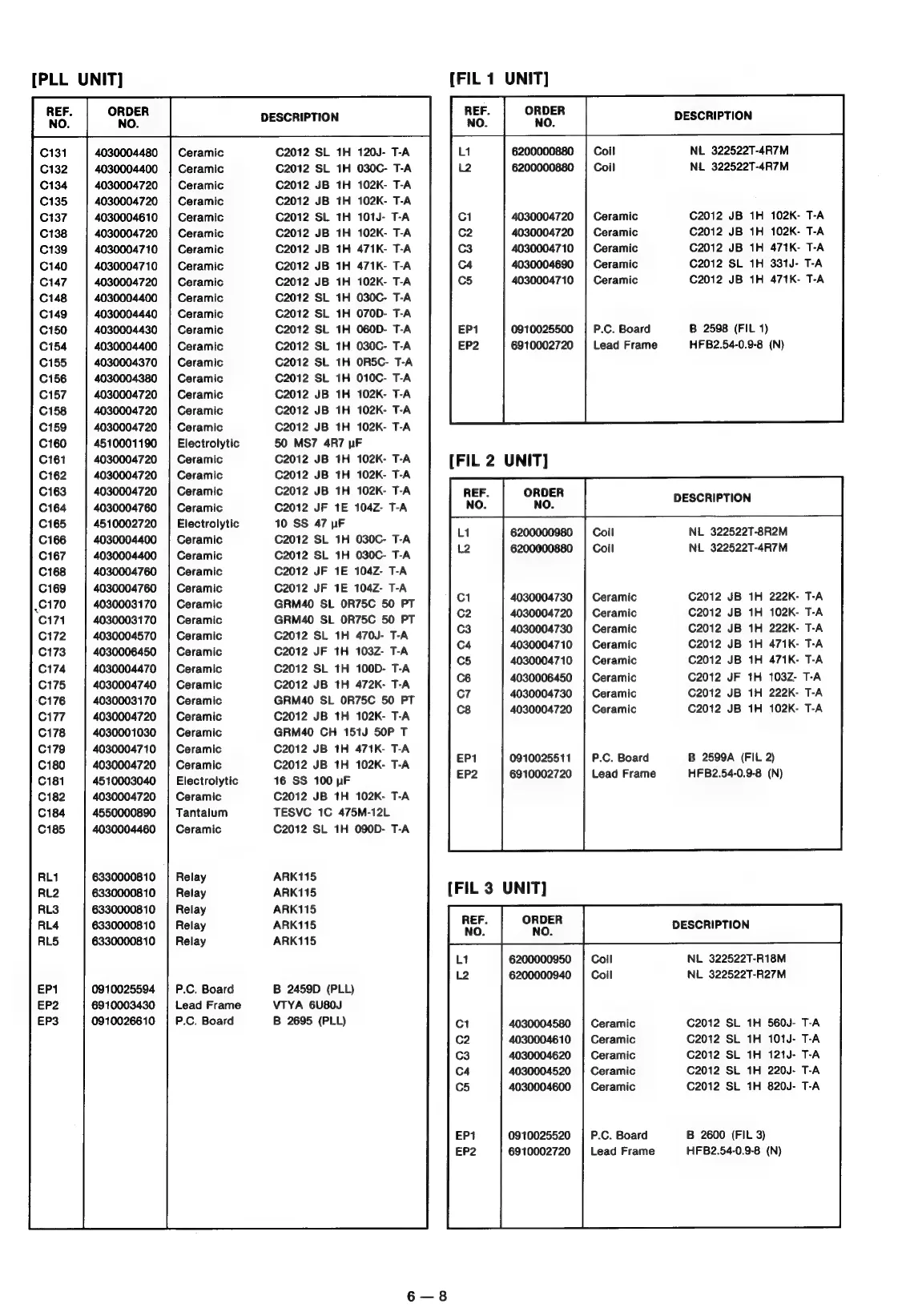

Icom IC-R100 Service Manual

[PLL UNIT]
ORDER
4030004480 | Ceramic C2012 SL 1H 120J- T-A
4030004400 | Ceramic C2012 SL 1H 030C- T-A
4030004720 | Ceramic C2012 JB 1H 102K- T-A
4030004720 | Ceramic C2012 JB 1H 102К- Т-А
4030004610 | Ceramic C2012 SL 1Н 101Ј- Т-А
4030004720 | Ceramic С2012 ЈВ 1H 102К- Т-А
4030004710 | Ceramic С2012 ЈВ 1Н 471К- Т-А
4030004710 | Ceramic С2012 ЈВ 1Н 471К- Т-А
4030004720 | Ceramic С2012 ЈВ 1Н 102К- Т-А
4030004400 | Ceramic С2012 SL 1H 030C- Т-А
4030004440 | Ceramic С2012 51. 1H 070D- Т-А
4030004430 | Ceramic С2012 SL 1H 0600- Т-А
4030004400 | Ceramic C2012 SL 1H 030C- Т-А
4030004370 | Ceramic C2012 SL 1H 0R5C- Т-А
4030004380 | Ceramic C2012 SL 1H 010С- Т-А
4030004720 | Ceramic С2012 ЈВ 1Н 102К- Т-А
4030004720 | Ceramic С2012 ЈВ 1H 102К- Т-А
4030004720 | Ceramic С2012 ЈВ 1H 102К- Т-А
4510001190 | Electrolytic 50 MS7 АВ? pF
4030004720 | Ceramic C2012 ЈВ 1H 102К- Т-А
4030004720 | Ceramic С2012 ЈВ 1H 102К- Т-А
4030004720 | Ceramic С2012 ЈВ 1Н 102К- Т-А
4030004760 | Ceramic C2012 JF 1E 104Z- Т-А
4510002720 | Electrolytic 10 SS 47 ЦЕ
4030004400 | Ceramic C2012 SL 1H 030C- T-A
4030004400 | Ceramic C2012 SL 1H 030С- T-A
4030004760 | Ceramic C2012 JF 1E 104Z- T-A
4030004760 | Ceramic C2012 JF 1E 104Z- T-A
4030003170 | Ceramic GRM40 SL 0R75C 50 PT
4030003170 | Ceramic GRM40 SL OR75C 50 PT
4030004570 | Ceramic C2012 SL 1H 470J- T-A
4030006450 | Ceramic C2012 JF 1H 103Z- T-A
4030004470 | Ceramic C2012 SL 1H 100D- T-A
4030004740 | Ceramic C2012 JB 1H 472К- Т-А
4030003170 | Ceramic GRM40 SL 0R75C 50 PT
4030004720 | Ceramic C2012 JB 1H 102K- T-A
4030001030 | Ceramic GRM40 CH 151J 50P T
4030004710 | Ceramic C2012 JB 1H 471K- T-A
4030004720 | Ceramic C2012 JB 1H 102К- Т-А
4510003040 | Electrolytic 16 SS 100 ЦЕ
4030004720 | Ceramic C2012 JB 1H 102К- T-A
4550000890 | Tantalum TESVC 1C 475M-12L
4030004460 | Ceramic C2012 SL 1H 090D- T-A
6330000810 ARK115
Relay
6330000810 | Relay ARK115
6330000810 | Relay ARK115
6330000810 | Relay ARK115
6330000810 | Relay ARK115
P.C. Board
Lead Frame
P.C. Board
0910025594
6910003430
0910026610
B 2459D (PLL)
VTYA 6U80J
B 2695 (PLL)
[FIL 1 UNIT]
ORDER
6200000880 Coll NL 322522T-4R7M
6200000880 NL 322522T-4R7M
4030004720 | Ceramic C2012 JB 1H 102К- T-A
4030004720 | Ceramic C2012 JB 1H 102K- T-A
4030004710 | Ceramic C2012 JB 1H 471K- T-A
4030004690 | Ceramic C2012 SL 1H 331J- T-A
4030004710 | Ceramic C2012 JB 1H 471K- T-A
P.C. Board
Lead Frame
B 2598 (FIL 1)
HFB2.54-0.9-8 (N)
0910025500
6910002720
(FIL 2 UNIT]
ORDER
6200000980 | Coil NL 322522T-8R2M
6200000880 NL 322522T-4R7M
4030004730 | Ceramic C2012 JB 1H 222К- T-A
4030004720 | Ceramic C2012 JB 1H 102K- T-A
4030004730 | Ceramic C2012 JB 1H 222К- Т-А
4030004710 | Ceramic C2012 JB 1H 471K- T-A
4030004710 | Ceramic C2012 JB 1H 471К- Т-А
4030006450 | Ceramic C2012 JF 1H 103Z- T-A
4030004730 | Ceramic C2012 JB 1H 222K- T-A
4030004720 | Ceramic C2012 JB 1H 102K- T-A
P.C. Board
Lead Frame
В 2599А (FIL 2)
HFB2.54-0.9-8 (N)
0910025511
6910002720
[FIL 3 UNIT]
ORDER
6200000950 | Coil NL 322522T-R18M
6200000940 NL 322522T-R27M
Ceramic C2012 SL 1H 560J- Т-А
4030004580
4030004610 | Ceramic C2012 SL 1H 101J- Т-А
4030004620 | Ceramic C2012 SL 1H 121J- T-A
4030004520 | Ceramic C2012 SL 1H 220J- T-A
C2012 SL 1H 820J- T-A
4030004600 | Ceramic
P.C. Board
Lead Frame
B 2600 (FIL 3)
HFB2.54-0.9-8 (N)
0910025520
6910002720
