Icom IC-R100 Service Manual

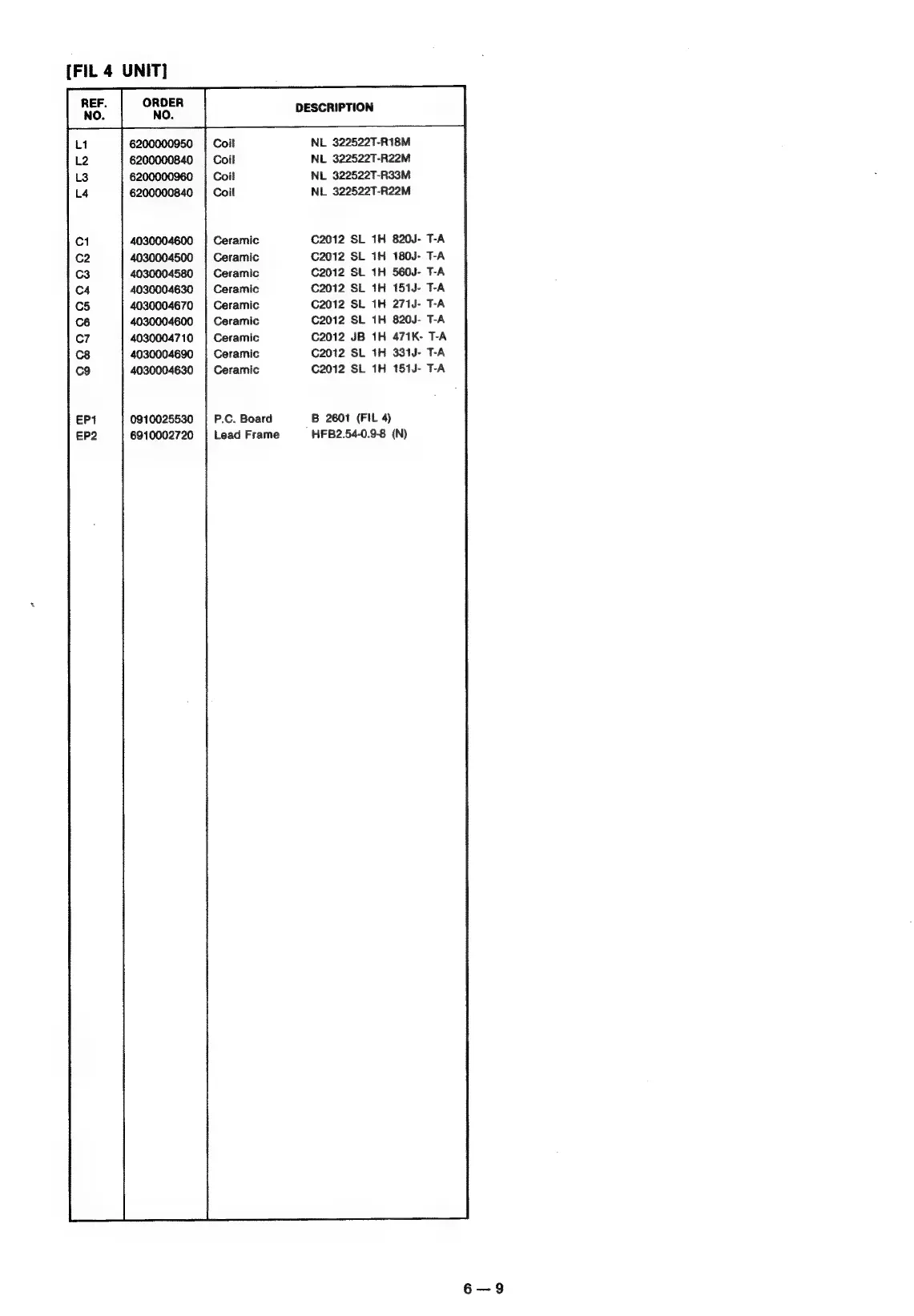

(FIL 4 UNIT)
DESCRIPTION
6200000950 | Coil NL 322522T-R18M
6200000840 | Coil NL 322522T-R22M
6200000960 | Сон NL 322522T-R33M
6200000840 NL 322522T-R22M
4030004600 | Ceramic C2012 SL 1H 820J- T-A
4030004500 | Ceramic С2012 SL 1H 180J- Т-А
4030004580 | Ceramic C2012 SL 1H 560J- T-A
4030004630 | Ceramic C2012 SL 1H 151J- T-A
4030004670 | Ceramic C2012 SL 1H 271J- T-A
4030004600 Ceramic C2012 SL 1H 820J- T-A
4030004710 | Ceramic C2012 JB 1H 471K- Т-А
4030004690 | Ceramic C2012 SL 1H 331J- Т-А
4030004630 | Ceramic C2012 SL 151J- T-A
0910025530
6910002720
P.C. Board B 2601 (FIL 4)
Lead Frame HFB2.54-0.9-8 (N)
