3-3
Screws ×5
AF UNIT
AF UNIT
Rear panel
Rear panel
Earth plates

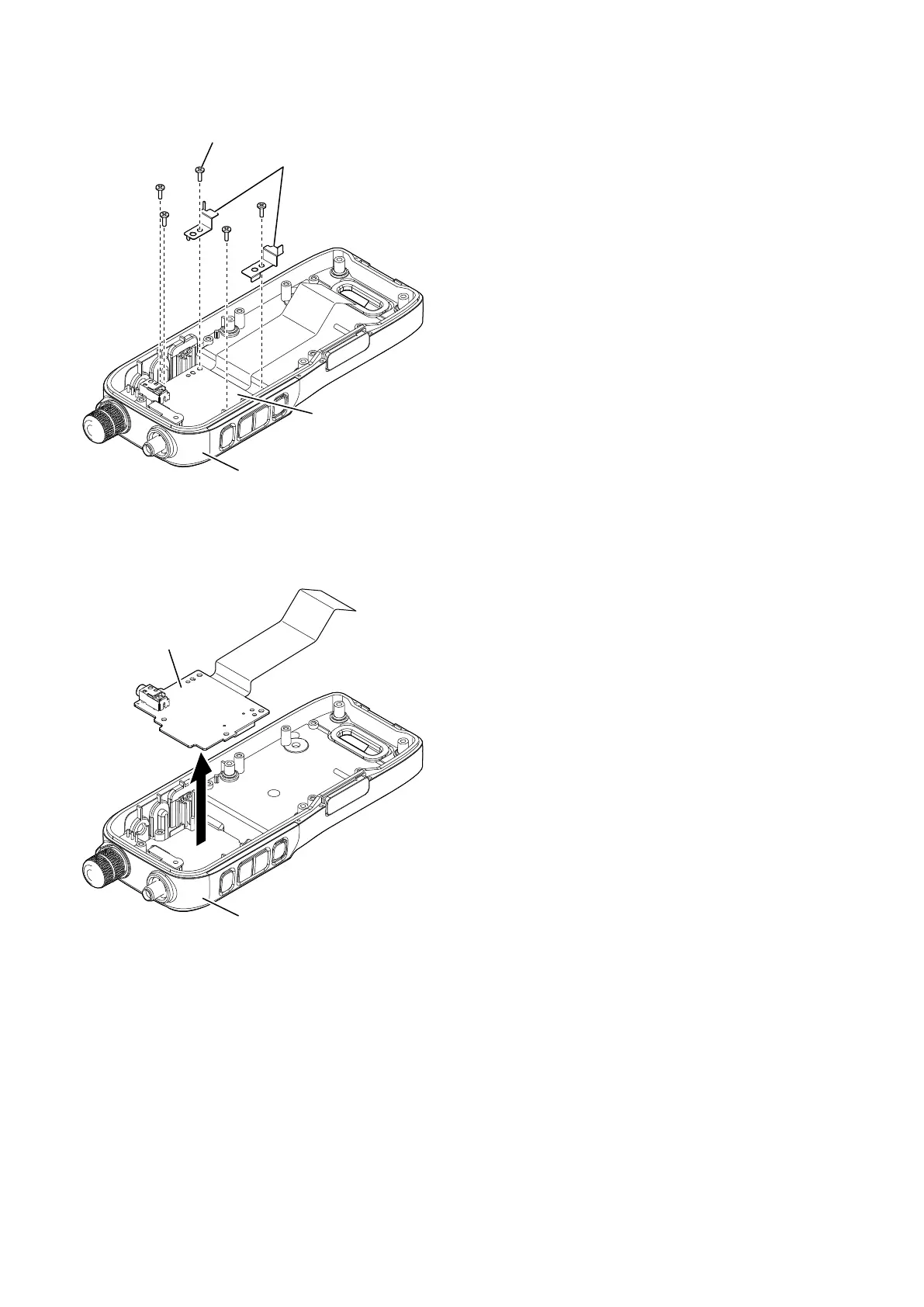

4. REMOVING THE AF UNIT
1) Remove the 5 screws from the AF UNIT, and then
remove the earth plates from the AF UNIT.
2) Remove the AF UNIT from the rear panel.
Screws ×5
AF UNIT
AF UNIT
Rear panel
Rear panel
Earth plates
