Icom IC-R6 Service Manual

5 - 4
5-3 RECEIVE ADJUSTMENTS (Continued)
1) Select an adjustment item using [BAND]/[TS].
2) Set the SSG as specifi ed, then push [V/M] to store the adjustment value.
ADJUSTMENT
RECEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
VHF SENSITIVITY
1
• Frequency: 118.100 MHz
• Receiving
• Connect an SSG to the antenna
connector and set it as;
Frequency : 118.100 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
Push [V/M]
2
• Frequency: 174.900 MHz
• Receiving
• Set the SSG as;
Frequency : 174.900 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
UHF SENSITIVITY
1
• Frequency: 330.100 MHz
• Receiving
• Connect an SSG to the antenna
connector and set it as;
Frequency : 330.100 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
Push [V/M]
2
• Frequency: 469.900 MHz
• Receiving
• Set the SSG as;
Frequency : 469.900 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
STANDARD
SIGNAL
GENERATOR
(100 kHz to 1.2 GHz)
SETTING;
Level : 0 dBµ
Modulation : None

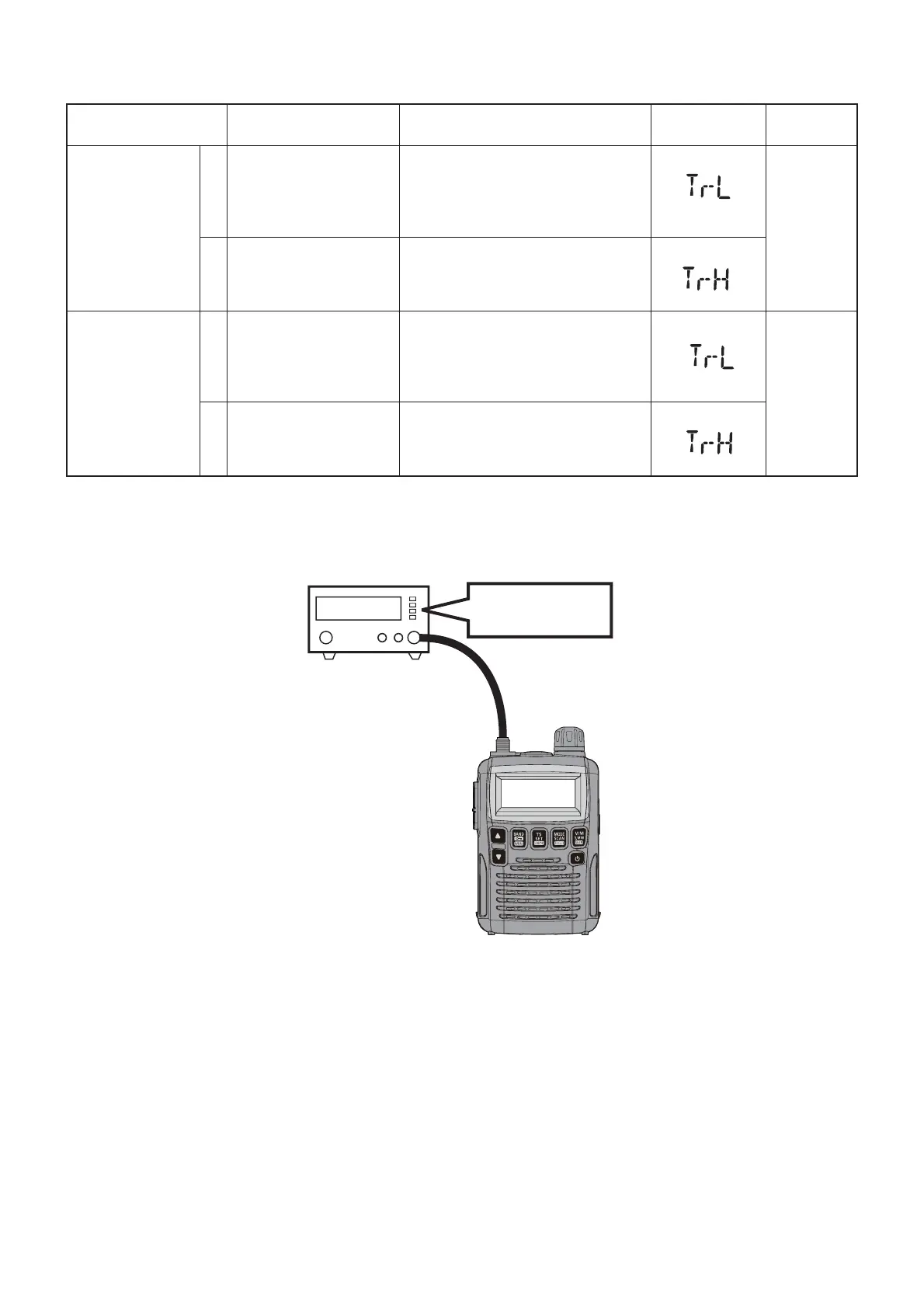

¤ CONNECTION
