Icom IC-R6 Service Manual

5 - 5

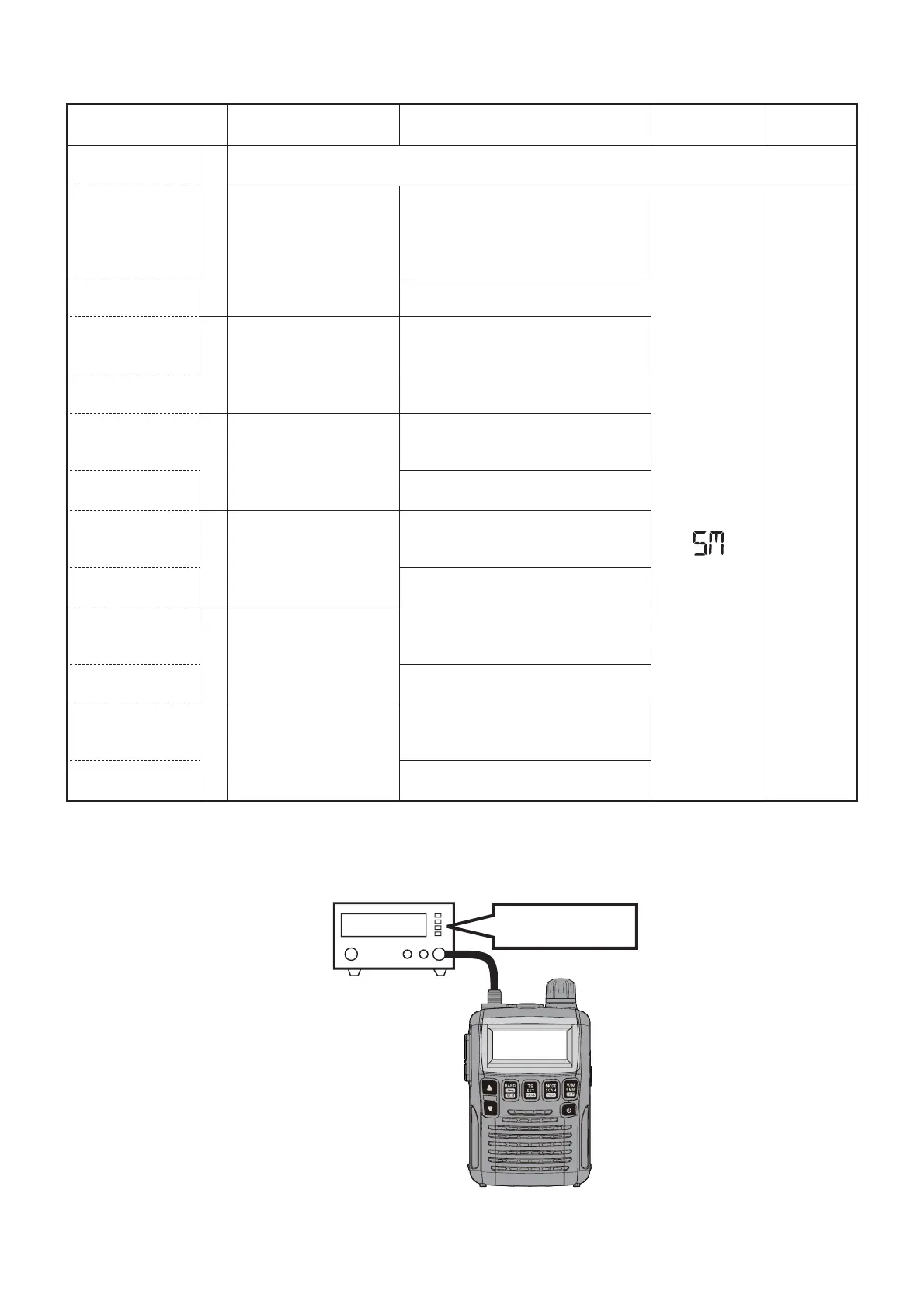

5-3 RECEIVE ADJUSTMENTS (Continued)
1) Select an adjustment item using [BAND]/[TS].
2) Set the SSG as specifi ed, then push [V/M] to store the adjustment value.
ADJUSTMENT
RECEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
S-METER 1
NOTE: "SENSITIVITY" must be adjusted before "S-METER." And when "SENSITIVITY" is re-
adjusted, "S-METER" must be re-adjusted too.
14 MHz band
(WFM Mode)
• Frequency: 14.1 MHz
• Receiving
• Connect an SSG to the antenna
connector, and set it as;
Frequency : 14.1 MHz
Level : 1 dBµ (–106 dBm)
Deviation : None
Push [V/M]
(FM Mode)
• Set the SSG as;
Level : –6 dBµ (–113 dBm)
145 MHz band
(WFM Mode)
2
• Frequency: 145.1 MHz
• Receiving
• Set the SSG as;
Frequency : 145.1 MHz
Level : 5 dBµ (–102 dBm)
(FM Mode)
• Set the SSG as;
Level : –6 dBµ (–113 dBm)
200 MHz band
(WFM Mode)
3
• Frequency: 200.1 MHz
• Receiving
• Set the SSG as;
Frequency : 200.1 MHz
Level : 5 dBµ (–102 dBm)
(FM Mode)
• Set the SSG as;
Level :
–6 dBµ (–113 dBm)
435 MHz band
(WFM Mode)
4
• Frequency: 435.1 MHz
• Receiving
• Set the SSG as;
Frequency : 435.1 MHz
Level : 5 dBµ (–102 dBm)
(FM Mode)
• Set the SSG as;
Level :
–6 dBµ (–113 dBm)
650 MHz band
(WFM Mode)
5
• Frequency: 650.1 MHz
• Receiving
• Set the SSG as;
Frequency : 650.1 MHz
Level : 5 dBµ (–102 dBm)
(FM Mode)
• Set the SSG as;
Level : –6 dBµ (–113 dBm)
1100 MHz band
(WFM Mode)
6
• Frequency: 1100.1 MHz
• Receiving
• Set the SSG as;
Frequency : 1100.1 MHz
Level : 10 dBµ (–97 dBm)
(FM Mode)
• Set the SSG as;
Level : 0 dBµ (–107 dBm)
STANDARD SIGNAL GENERATOR
(100 kHz to 1.2 GHz)
SETTING;
Modulation: None
¤ CONNECTION
