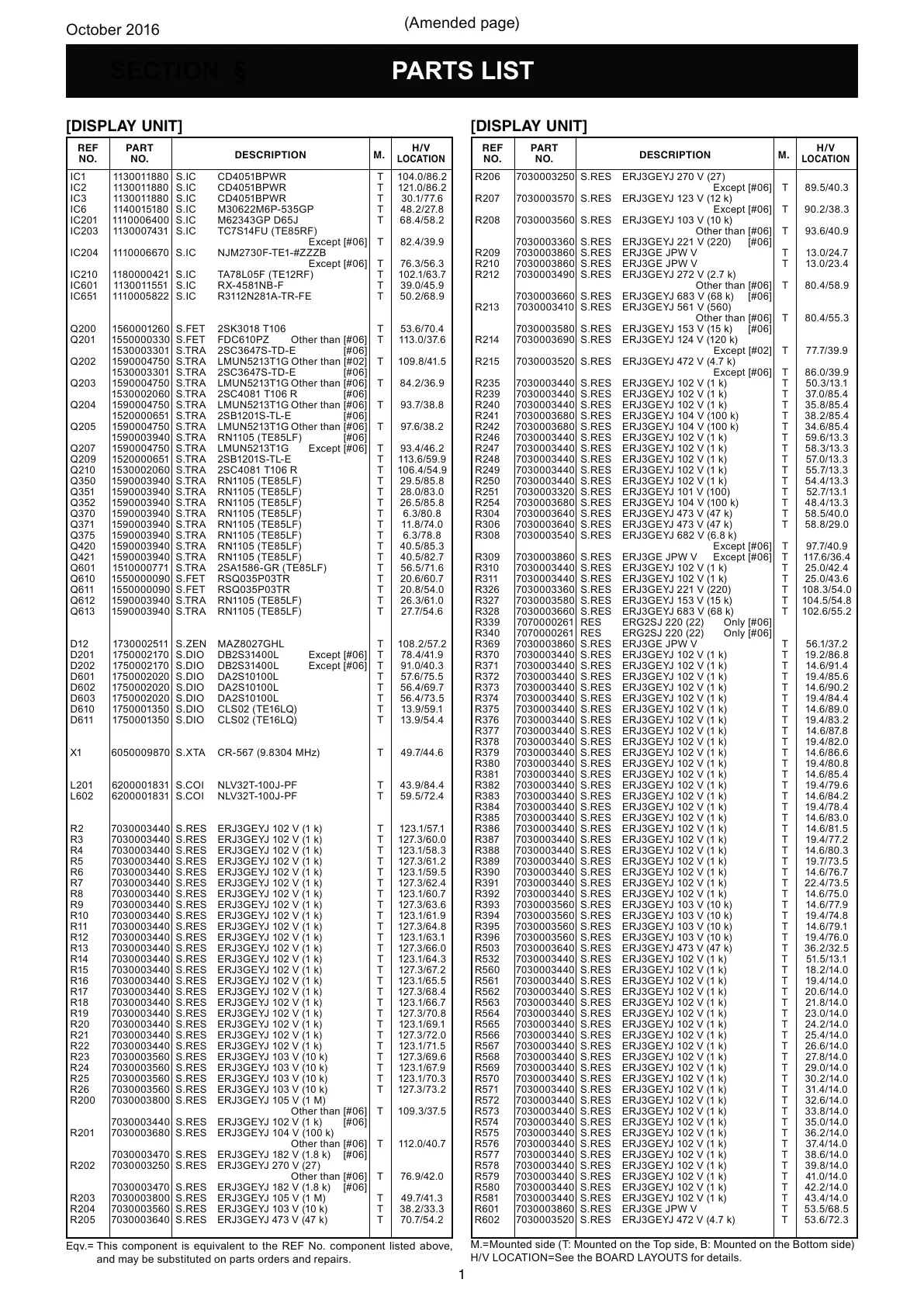

SECTION § PARTS LIST
1
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[DISPLAY UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[DISPLAY UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
IC1 1130011880 S.IC CD4051BPWR T 104.0/86.2
IC2 1130011880 S.IC CD4051BPWR T 121.0/86.2
IC3 1130011880 S.IC CD4051BPWR T 30.1/77.6
IC6 1140015180 S.IC M30622M6P-535GP T 48.2/27.8
IC201 1110006400 S.IC M62343GP D65J T 68.4/58.2
IC203 1130007431 S.IC TC7S14FU (TE85RF)
Except [#06] T 82.4/39.9
IC204 1110006670 S.IC NJM2730F-TE1-#ZZZB
Except [#06] T 76.3/56.3
IC210 1180000421 S.IC TA78L05F (TE12RF) T 102.1/63.7
IC601 1130011551 S.IC RX-4581NB-F T 39.0/45.9
IC651 1110005822 S.IC R3112N281A-TR-FE T 50.2/68.9
Q200 1560001260 S.FET 2SK3018 T106 T 53.6/70.4
Q201 1550000330 S.FET FDC610PZ Other than [#06] T 113.0/37.6
1530003301 S.TRA 2SC3647S-TD-E [#06]
Q202 1590004750 S.TRA LMUN5213T1G Other than [#02] T 109.8/41.5
1530003301 S.TRA 2SC3647S-TD-E [#06]
Q203 1590004750 S.TRA LMUN5213T1G Other than [#06] T 84.2/36.9
1530002060 S.TRA 2SC4081 T106 R [#06]
Q204 1590004750 S.TRA LMUN5213T1G Other than [#06] T 93.7/38.8
1520000651 S.TRA 2SB1201S-TL-E [#06]
Q205 1590004750 S.TRA LMUN5213T1G Other than [#06] T 97.6/38.2
1590003940 S.TRA RN1105 (TE85LF) [#06]
Q207 1590004750 S.TRA LMUN5213T1G Except [#06] T 93.4/46.2
Q209 1520000651 S.TRA 2SB1201S-TL-E T 113.6/59.9
Q210 1530002060 S.TRA 2SC4081 T106 R T 106.4/54.9
Q350 1590003940 S.TRA RN1105 (TE85LF) T 29.5/85.8
Q351 1590003940 S.TRA RN1105 (TE85LF) T 28.0/83.0
Q352 1590003940 S.TRA RN1105 (TE85LF) T 26.5/85.8
Q370 1590003940 S.TRA RN1105 (TE85LF) T 6.3/80.8
Q371 1590003940 S.TRA RN1105 (TE85LF) T 11.8/74.0
Q375 1590003940 S.TRA RN1105 (TE85LF) T 6.3/78.8
Q420 1590003940 S.TRA RN1105 (TE85LF) T 40.5/85.3
Q421 1590003940 S.TRA RN1105 (TE85LF) T 40.5/82.7
Q601 1510000771 S.TRA 2SA1586-GR (TE85LF) T 56.5/71.6
Q610 1550000090 S.FET RSQ035P03TR T 20.6/60.7
Q611 1550000090 S.FET RSQ035P03TR T 20.8/54.0
Q612 1590003940 S.TRA RN1105 (TE85LF) T 26.3/61.0
Q613 1590003940 S.TRA RN1105 (TE85LF) T 27.7/54.6
D12 1730002511 S.ZEN MAZ8027GHL T 108.2/57.2
D201 1750002170 S.DIO DB2S31400L Except [#06] T 78.4/41.9
D202 1750002170 S.DIO DB2S31400L Except [#06] T 91.0/40.3
D601 1750002020 S.DIO DA2S10100L T 57.6/75.5
D602 1750002020 S.DIO DA2S10100L T 56.4/69.7
D603 1750002020 S.DIO DA2S10100L T 56.4/73.5
D610 1750001350 S.DIO CLS02 (TE16LQ) T 13.9/59.1
D611 1750001350 S.DIO CLS02 (TE16LQ) T 13.9/54.4
X1 6050009870 S.XTA CR-567 (9.8304 MHz) T 49.7/44.6
L201 6200001831 S.COI NLV32T-100J-PF T 43.9/84.4
L602 6200001831 S.COI NLV32T-100J-PF T 59.5/72.4
R2 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/57.1
R3 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/60.0
R4 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/58.3
R5 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/61.2
R6 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/59.5
R7 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/62.4
R8 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/60.7
R9 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/63.6
R10 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/61.9
R11 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/64.8
R12 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/63.1
R13 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/66.0
R14 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/64.3
R15 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/67.2
R16 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/65.5
R17 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/68.4
R18 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/66.7
R19 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/70.8
R20 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/69.1
R21 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 127.3/72.0
R22 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 123.1/71.5
R23 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 127.3/69.6
R24 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 123.1/67.9
R25 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 123.1/70.3
R26 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 127.3/73.2
R200 7030003800 S.RES ERJ3GEYJ 105 V (1 M)
Other than [#06] T 109.3/37.5
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#06]
R201 7030003680 S.RES ERJ3GEYJ 104 V (100 k)
Other than [#06] T 112.0/40.7
7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) [#06]
R202 7030003250 S.RES ERJ3GEYJ 270 V (27)
Other than [#06] T 76.9/42.0
7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) [#06]
R203 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 49.7/41.3
R204 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 38.2/33.3
R205 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 70.7/54.2
(Amended page)
October 2016
R206 7030003250 S.RES ERJ3GEYJ 270 V (27)
Except [#06] T 89.5/40.3
R207 7030003570 S.RES ERJ3GEYJ 123 V (12 k)
Except [#06] T 90.2/38.3
R208 7030003560 S.RES ERJ3GEYJ 103 V (10 k)
Other than [#06] T 93.6/40.9
7030003360 S.RES ERJ3GEYJ 221 V (220) [#06]
R209 7030003860 S.RES ERJ3GE JPW V T 13.0/24.7
R210 7030003860 S.RES ERJ3GE JPW V T 13.0/23.4
R212 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k)
Other than [#06] T 80.4/58.9
7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#06]
R213 7030003410 S.RES ERJ3GEYJ 561 V (560)
Other than [#06] T 80.4/55.3
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#06]
R214 7030003690 S.RES ERJ3GEYJ 124 V (120 k)
Except [#02] T 77.7/39.9
R215 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k)
Except [#06] T 86.0/39.9
R235 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 50.3/13.1
R239 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 37.0/85.4
R240 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 35.8/85.4
R241 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 38.2/85.4
R242 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 34.6/85.4
R246 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 59.6/13.3
R247 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 58.3/13.3
R248 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 57.0/13.3
R249 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 55.7/13.3
R250 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 54.4/13.3
R251 7030003320 S.RES ERJ3GEYJ 101 V (100) T 52.7/13.1
R254 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 48.4/13.3
R304 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 58.5/40.0
R306 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 58.8/29.0
R308 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k)
Except [#06] T 97.7/40.9
R309 7030003860 S.RES ERJ3GE JPW V Except [#06] T 117.6/36.4
R310 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 25.0/42.4
R311 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 25.0/43.6
R326 7030003360 S.RES ERJ3GEYJ 221 V (220) T 108.3/54.0
R327 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 104.5/54.8
R328 7030003660 S.RES ERJ3GEYJ 683 V (68 k) T 102.6/55.2
R339 7070000261 RES ERG2SJ 220 (22) Only [#06]
R340 7070000261 RES ERG2SJ 220 (22) Only [#06]
R369 7030003860 S.RES ERJ3GE JPW V T 56.1/37.2
R370 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.2/86.8
R371 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/91.4
R372 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/85.6
R373 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/90.2
R374 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/84.4
R375 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/89.0
R376 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/83.2
R377 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/87.8
R378 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/82.0
R379 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/86.6
R380 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/80.8
R381 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/85.4
R382 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/79.6
R383 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/84.2
R384 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/78.4
R385 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/83.0
R386 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/81.5
R387 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/77.2
R388 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/80.3
R389 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.7/73.5
R390 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/76.7
R391 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 22.4/73.5
R392 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 14.6/75.0
R393 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 14.6/77.9
R394 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 19.4/74.8
R395 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 14.6/79.1
R396 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 19.4/76.0
R503 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 36.2/32.5
R532 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 51.5/13.1
R560 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 18.2/14.0
R561 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 19.4/14.0
R562 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 20.6/14.0
R563 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 21.8/14.0
R564 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.0/14.0
R565 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 24.2/14.0
R566 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 25.4/14.0
R567 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 26.6/14.0
R568 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 27.8/14.0
R569 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 29.0/14.0
R570 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 30.2/14.0
R571 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 31.4/14.0
R572 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 32.6/14.0
R573 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 33.8/14.0
R574 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 35.0/14.0
R575 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 36.2/14.0
R576 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 37.4/14.0
R577 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 38.6/14.0
R578 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 39.8/14.0
R579 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 41.0/14.0
R580 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 42.2/14.0
R581 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 43.4/14.0
R601 7030003860 S.RES ERJ3GE JPW V T 53.5/68.5
R602 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 53.6/72.3
