Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.

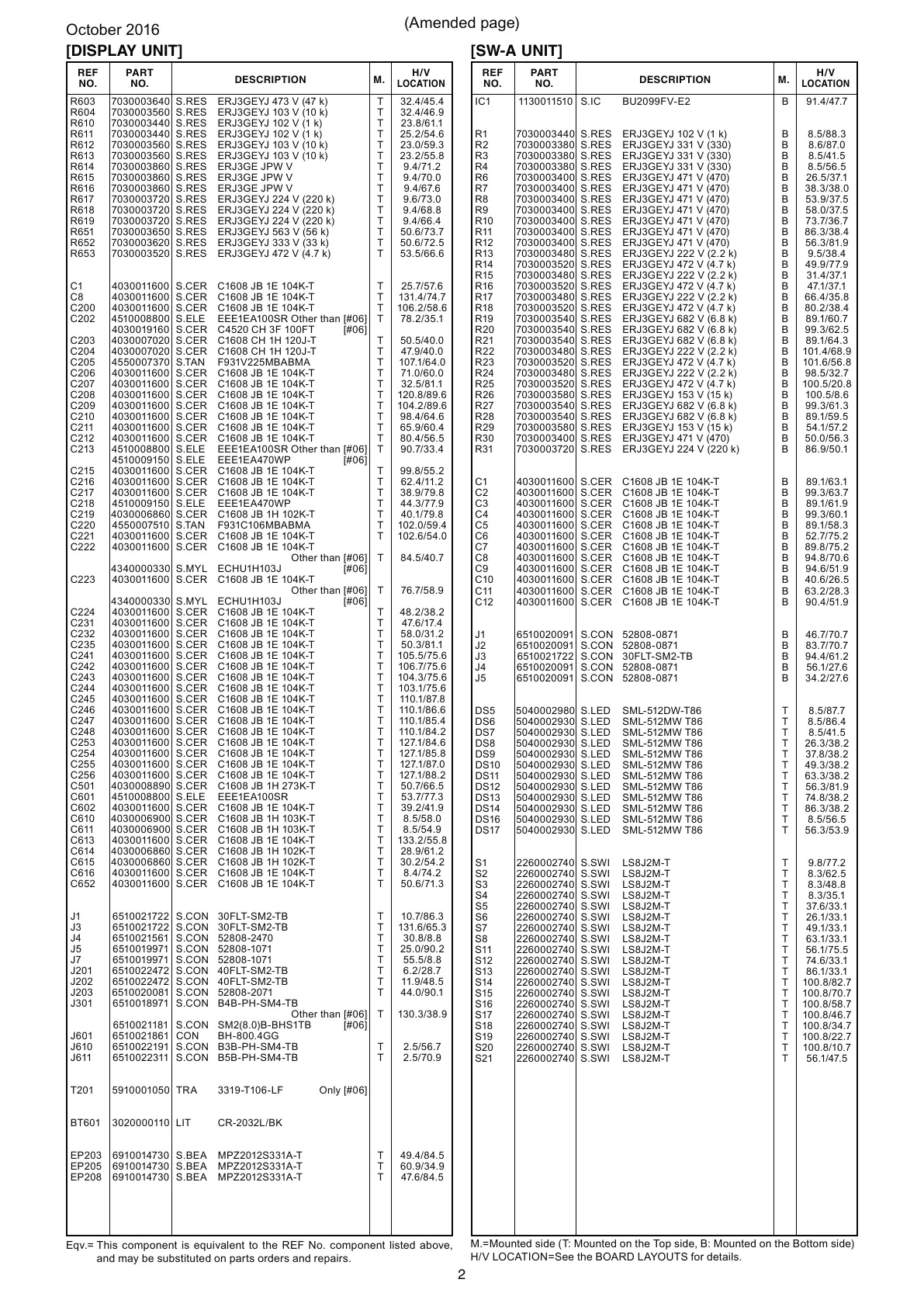

[DISPLAY UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[SW-A UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
R603 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 32.4/45.4
R604 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 32.4/46.9
R610 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.8/61.1
R611 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 25.2/54.6
R612 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 23.0/59.3
R613 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 23.2/55.8
R614 7030003860 S.RES ERJ3GE JPW V T 9.4/71.2
R615 7030003860 S.RES ERJ3GE JPW V T 9.4/70.0
R616 7030003860 S.RES ERJ3GE JPW V T 9.4/67.6
R617 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 9.6/73.0
R618 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 9.4/68.8
R619 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 9.4/66.4
R651 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 50.6/73.7
R652 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 50.6/72.5
R653 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 53.5/66.6
C1 4030011600 S.CER C1608 JB 1E 104K-T T 25.7/57.6
C8 4030011600 S.CER C1608 JB 1E 104K-T T 131.4/74.7
C200 4030011600 S.CER C1608 JB 1E 104K-T T 106.2/58.6
C202 4510008800 S.ELE EEE1EA100SR Other than [#06] T 78.2/35.1
4030019160 S.CER C4520 CH 3F 100FT [#06]
C203 4030007020 S.CER C1608 CH 1H 120J-T T 50.5/40.0
C204 4030007020 S.CER C1608 CH 1H 120J-T T 47.9/40.0
C205 4550007370 S.TAN F931V225MBABMA T 107.1/64.0
C206 4030011600 S.CER C1608 JB 1E 104K-T T 71.0/60.0
C207 4030011600 S.CER C1608 JB 1E 104K-T T 32.5/81.1
C208 4030011600 S.CER C1608 JB 1E 104K-T T 120.8/89.6
C209 4030011600 S.CER C1608 JB 1E 104K-T T 104.2/89.6
C210 4030011600 S.CER C1608 JB 1E 104K-T T 98.4/64.6
C211 4030011600 S.CER C1608 JB 1E 104K-T T 65.9/60.4
C212 4030011600 S.CER C1608 JB 1E 104K-T T 80.4/56.5
C213 4510008800 S.ELE EEE1EA100SR Other than [#06] T 90.7/33.4
4510009150 S.ELE EEE1EA470WP [#06]
C215 4030011600 S.CER C1608 JB 1E 104K-T T 99.8/55.2
C216 4030011600 S.CER C1608 JB 1E 104K-T T 62.4/11.2
C217 4030011600 S.CER C1608 JB 1E 104K-T T 38.9/79.8
C218 4510009150 S.ELE EEE1EA470WP T 44.3/77.9
C219 4030006860 S.CER C1608 JB 1H 102K-T T 40.1/79.8
C220 4550007510 S.TAN F931C106MBABMA T 102.0/59.4
C221 4030011600 S.CER C1608 JB 1E 104K-T T 102.6/54.0
C222 4030011600 S.CER C1608 JB 1E 104K-T
Other than [#06] T 84.5/40.7
4340000330 S.MYL ECHU1H103J [#06]
C223 4030011600 S.CER C1608 JB 1E 104K-T
Other than [#06] T 76.7/58.9
4340000330 S.MYL ECHU1H103J [#06]
C224 4030011600 S.CER C1608 JB 1E 104K-T T 48.2/38.2
C231 4030011600 S.CER C1608 JB 1E 104K-T T 47.6/17.4
C232 4030011600 S.CER C1608 JB 1E 104K-T T 58.0/31.2
C235 4030011600 S.CER C1608 JB 1E 104K-T T 50.3/81.1
C241 4030011600 S.CER C1608 JB 1E 104K-T T 105.5/75.6
C242 4030011600 S.CER C1608 JB 1E 104K-T T 106.7/75.6
C243 4030011600 S.CER C1608 JB 1E 104K-T T 104.3/75.6
C244 4030011600 S.CER C1608 JB 1E 104K-T T 103.1/75.6
C245 4030011600 S.CER C1608 JB 1E 104K-T T 110.1/87.8
C246 4030011600 S.CER C1608 JB 1E 104K-T T 110.1/86.6
C247 4030011600 S.CER C1608 JB 1E 104K-T T 110.1/85.4
C248 4030011600 S.CER C1608 JB 1E 104K-T T 110.1/84.2
C253 4030011600 S.CER C1608 JB 1E 104K-T T 127.1/84.6
C254 4030011600 S.CER C1608 JB 1E 104K-T T 127.1/85.8
C255 4030011600 S.CER C1608 JB 1E 104K-T T 127.1/87.0
C256 4030011600 S.CER C1608 JB 1E 104K-T T 127.1/88.2
C501 4030008890 S.CER C1608 JB 1H 273K-T T 50.7/66.5
C601 4510008800 S.ELE EEE1EA100SR T 53.7/77.3
C602 4030011600 S.CER C1608 JB 1E 104K-T T 39.2/41.9
C610 4030006900 S.CER C1608 JB 1H 103K-T T 8.5/58.0
C611 4030006900 S.CER C1608 JB 1H 103K-T T 8.5/54.9
C613 4030011600 S.CER C1608 JB 1E 104K-T T 133.2/55.8
C614 4030006860 S.CER C1608 JB 1H 102K-T T 28.9/61.2
C615 4030006860 S.CER C1608 JB 1H 102K-T T 30.2/54.2
C616 4030011600 S.CER C1608 JB 1E 104K-T T 8.4/74.2
C652 4030011600 S.CER C1608 JB 1E 104K-T T 50.6/71.3
J1 6510021722 S.CON 30FLT-SM2-TB T 10.7/86.3
J3 6510021722 S.CON 30FLT-SM2-TB T 131.6/65.3
J4 6510021561 S.CON 52808-2470 T 30.8/8.8
J5 6510019971 S.CON 52808-1071 T 25.0/90.2
J7 6510019971 S.CON 52808-1071 T 55.5/8.8
J201 6510022472 S.CON 40FLT-SM2-TB T 6.2/28.7
J202 6510022472 S.CON 40FLT-SM2-TB T 11.9/48.5
J203 6510020081 S.CON 52808-2071 T 44.0/90.1
J301 6510018971 S.CON B4B-PH-SM4-TB
Other than [#06] T 130.3/38.9
6510021181 S.CON SM2(8.0)B-BHS1TB [#06]
J601 6510021861 CON BH-800.4GG
J610 6510022191 S.CON B3B-PH-SM4-TB T 2.5/56.7
J611 6 510022311 S .C O N B5B -PH -SM4-TB T 2 . 5/ 70.9
T201 5910001050 TRA 3319-T106-LF Only [#06]
BT601 3020000110 LIT CR-2032L/BK
EP203 6910014730 S.BEA MPZ2012S331A-T T 49.4/84.5
EP205 6910014730 S.BEA MPZ2012S331A-T T 60.9/34.9
EP208 6910014730 S.BEA MPZ2012S331A-T T 47.6/84.5
IC1 1130011510 S.IC BU2099FV-E2 B 91.4/47.7
R1 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 8.5/88.3
R2 7030003380 S.RES ERJ3GEYJ 331 V (330) B 8.6/87.0
R3 7030003380 S.RES ERJ3GEYJ 331 V (330) B 8.5/41.5
R4 7030003380 S.RES ERJ3GEYJ 331 V (330) B 8.5/56.5
R6 7030003400 S.RES ERJ3GEYJ 471 V (470) B 26.5/37.1
R7 7030003400 S.RES ERJ3GEYJ 471 V (470) B 38.3/38.0
R8 7030003400 S.RES ERJ3GEYJ 471 V (470) B 53.9/37.5
R9 7030003400 S.RES ERJ3GEYJ 471 V (470) B 58.0/37.5
R10 7030003400 S.RES ERJ3GEYJ 471 V (470) B 73.7/36.7
R11 7030003400 S.RES ERJ3GEYJ 471 V (470) B 86.3/38.4
R12 7030003400 S.RES ERJ3GEYJ 471 V (470) B 56.3/81.9
R13 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 9.5/38.4
R14 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 49.9/77.9
R15 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 31.4/37.1
R16 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 47.1/37.1
R17 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 66.4/35.8
R18 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 80.2/38.4
R19 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) B 89.1/60.7
R20 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) B 99.3/62.5
R21 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) B 89.1/64.3
R22 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 101.4/68.9
R23 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 101.6/56.8
R24 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 98.5/32.7
R25 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 100.5/20.8
R26 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 100.5/8.6
R27 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) B 99.3/61.3
R28 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) B 89.1/59.5
R29 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 54.1/57.2
R30 7030003400 S.RES ERJ3GEYJ 471 V (470) B 50.0/56.3
R31 7030003720 S.RES ERJ3GEYJ 224 V (220 k) B 86.9/50.1
C1 4030011600 S.CER C1608 JB 1E 104K-T B 89.1/63.1
C2 4030011600 S.CER C1608 JB 1E 104K-T B 99.3/63.7
C3 4030011600 S.CER C1608 JB 1E 104K-T B 89.1/61.9
C4 4030011600 S.CER C1608 JB 1E 104K-T B 99.3/60.1
C5 4030011600 S.CER C1608 JB 1E 104K-T B 89.1/58.3
C6 4030011600 S.CER C1608 JB 1E 104K-T B 52.7/75.2
C7 4030011600 S.CER C1608 JB 1E 104K-T B 89.8/75.2
C8 4030011600 S.CER C1608 JB 1E 104K-T B 94.8/70.6
C9 4030011600 S.CER C1608 JB 1E 104K-T B 94.6/51.9
C10 4030011600 S.CER C1608 JB 1E 104K-T B 40.6/26.5
C11 4030011600 S.CER C1608 JB 1E 104K-T B 63.2/28.3
C12 4030011600 S.CER C1608 JB 1E 104K-T B 90.4/51.9
J1 6510020091 S.CON 52808-0871 B 46.7/70.7
J2 6510020091 S.CON 52808-0871 B 83.7/70.7
J3 6510021722 S.CON 30FLT-SM2-TB B 94.4/61.2
J4 6510020091 S.CON 52808-0871 B 56.1/27.6
J5 6510020091 S.CON 52808-0871 B 34.2/27.6
DS5 5040002980 S.LED SML-512DW-T86 T 8.5/87.7
DS6 5040002930 S.LED SML-512MW T86 T 8.5/86.4
DS7 5040002930 S.LED SML-512MW T86 T 8.5/41.5
DS8 5040002930 S.LED SML-512MW T86 T 26.3/38.2
DS9 5040002930 S.LED SML-512MW T86 T 37.8/38.2
DS10 5040002930 S.LED SML-512MW T86 T 49.3/38.2
DS11 5040002930 S.LED SML-512MW T86 T 63.3/38.2
DS12 5040002930 S.LED SML-512MW T86 T 56.3/81.9
DS13 5040002930 S.LED SML-512MW T86 T 74.8/38.2
DS14 5040002930 S.LED SML-512MW T86 T 86.3/38.2
DS16 5040002930 S.LED SML-512MW T86 T 8.5/56.5
DS17 5040002930 S.LED SML-512MW T86 T 56.3/53.9
S1 2260002740 S.SWI LS8J2M-T T 9.8/77.2
S2 2260002740 S.SWI LS8J2M-T T 8.3/62.5
S3 2260002740 S.SWI LS8J2M-T T 8.3/48.8
S4 2260002740 S.SWI LS8J2M-T T 8.3/35.1
S5 2260002740 S.SWI LS8J2M-T T 37.6/33.1
S6 2260002740 S.SWI LS8J2M-T T 26.1/33.1
S7 2260002740 S.SWI LS8J2M-T T 49.1/33.1
S8 2260002740 S.SWI LS8J2M-T T 63.1/33.1
S11 2260002740 S.SWI LS8J2M-T T 56.1/75.5
S12 2260002740 S.SWI LS8J2M-T T 74.6/33.1
S13 2260002740 S.SWI LS8J2M-T T 86.1/33.1
S14 2260002740 S.SWI LS8J2M-T T 100.8/82.7
S15 2260002740 S.SWI LS8J2M-T T 100.8/70.7
S16 2260002740 S.SWI LS8J2M-T T 100.8/58.7
S17 2260002740 S.SWI LS8J2M-T T 100.8/46.7
S18 2260002740 S.SWI LS8J2M-T T 100.8/34.7
S19 2260002740 S.SWI LS8J2M-T T 100.8/22.7
S20 2260002740 S.SWI LS8J2M-T T 100.8/10.7
S21 2260002740 S.SWI LS8J2M-T T 56.1/47.5
