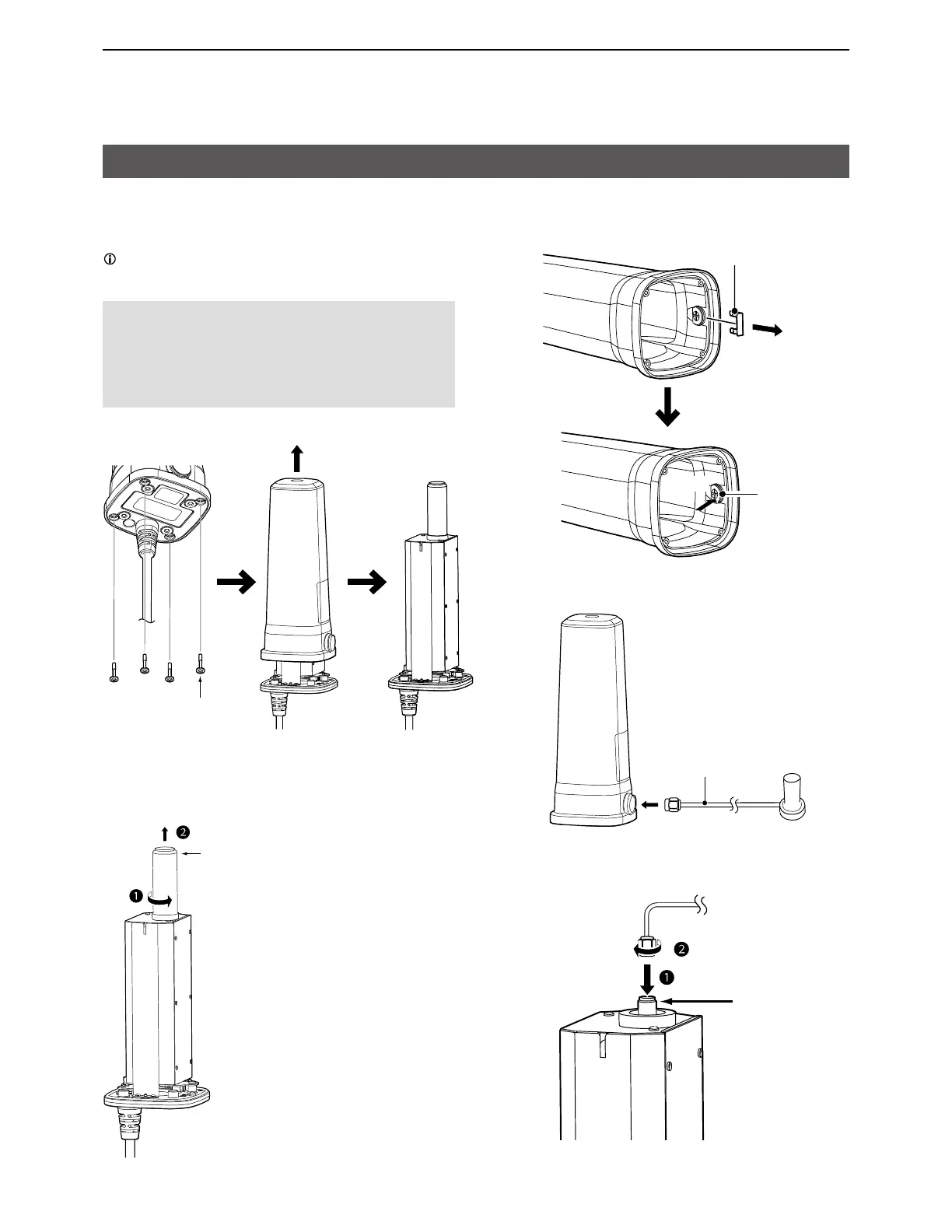

Installing the AH-40
The AH-40 can be connected instead of the antenna
element attached to the RF unit.
See also Installing the antenna (p. 12) to connect
the AH-40.
NOTE:
• Move away from buildings and install the transceiver
in areas with an open sky.
• When you remove the antenna unit cover, the
antenna unit loses its waterproof protection.
• The AH-40 includes a strong magnet.
1. Remove the antenna unit cover.
2. Remove the antenna element.
3. Detach the metal plate, and then push the cover
to remove.
4. Insert the AH-40 cable into the antenna cover.
5. Attach the AH-40 to the RF Unit.
Antenna element
Y Type
Screw
Metal plate
Cover
Push
RF Unit
Coaxial cable
To Next Page
