20
8
INFORMATION
8
BASIC MANUAL
10
15
18
13
11
16
9
14
12
17
1
7
4
2
5
3
6
■ About CE and DOC
Hereby, Icom Inc. declares
that the versions of IC-T10
which have the “CE” symbol
on the product, comply with
the essential requirements of the Radio
Equipment Directive, 2014/53/EU, and the
restriction of the use of certain hazardous
substances in electrical and electronic
equipment Directive, 2011/65/EU. The full
text of the EU declaration of conformity is
available at the following internet address:
https://www.icomjapan.com/support/
■ Disposal
The crossed-out wheeled-bin
symbol on your product, literature,
or packaging reminds you that in
the European Union, all electrical
and electronic products, batteries,
and accumulators (rechargeable batteries)
must be taken to designated collection
locations at the end of their working life. Do
not dispose of these products as unsorted
municipal waste. Dispose of them according
to the laws in your area.

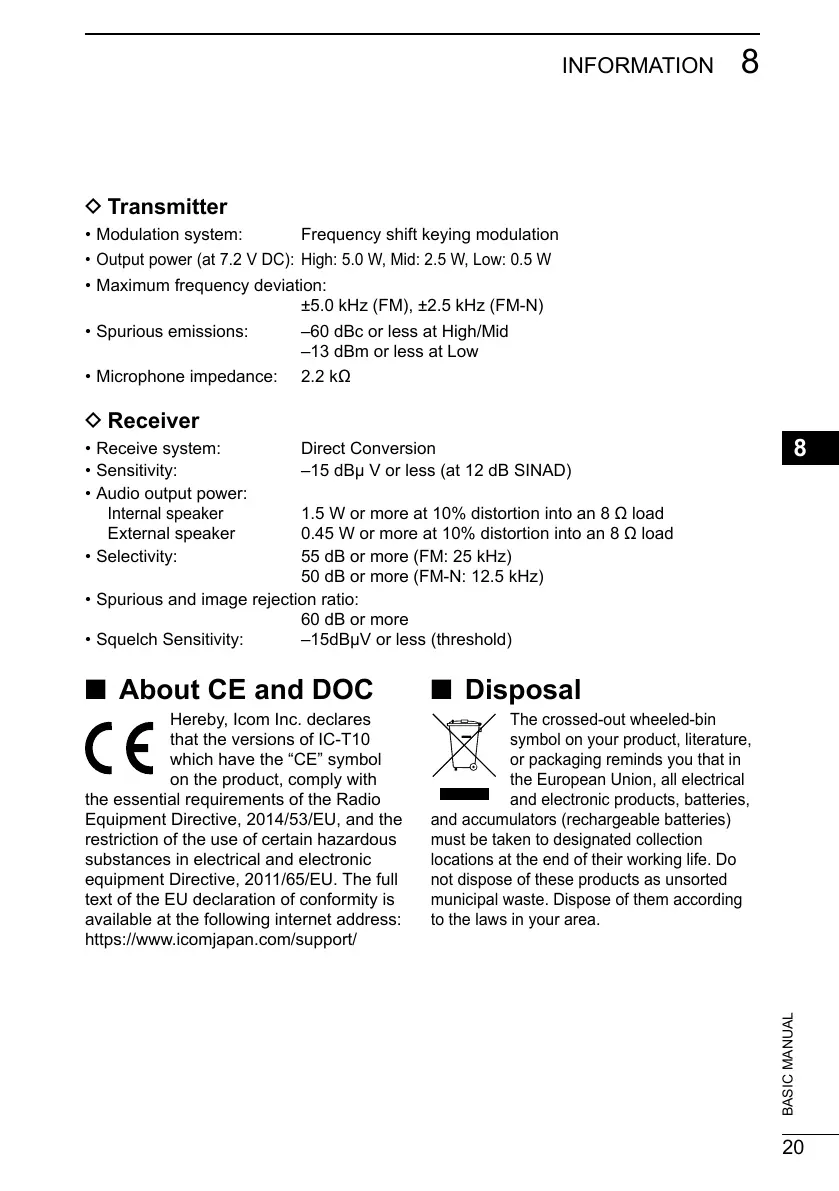

D Transmitter
• Modulation system: Frequency shift keying modulation
• Output power (at 7.2 V DC):
High: 5.0 W, Mid: 2.5 W, Low: 0.5 W
• Maximum frequency deviation:
±5.0 kHz (FM), ±2.5 kHz (FM-N)
• Spurious emissions: –60 dBc or less at High/Mid
–13 dBm or less at Low
• Microphone impedance: 2.2 kΩ
D Receiver
• Receive system: Direct Conversion
• Sensitivity: –15 dBμ V or less (at 12 dB SINAD)
• Audio output power:
Internal speaker
1.5 W or more at 10% distortion into an 8 Ω load
External speaker 0.45 W or more at 10% distortion into an 8 Ω load
• Selectivity: 55 dB or more (FM: 25 kHz)
50 dB or more (FM-N: 12.5 kHz)
• Spurious and image rejection ratio:
60 dB or more
• Squelch Sensitivity: –15dBμV or less (threshold)
