7

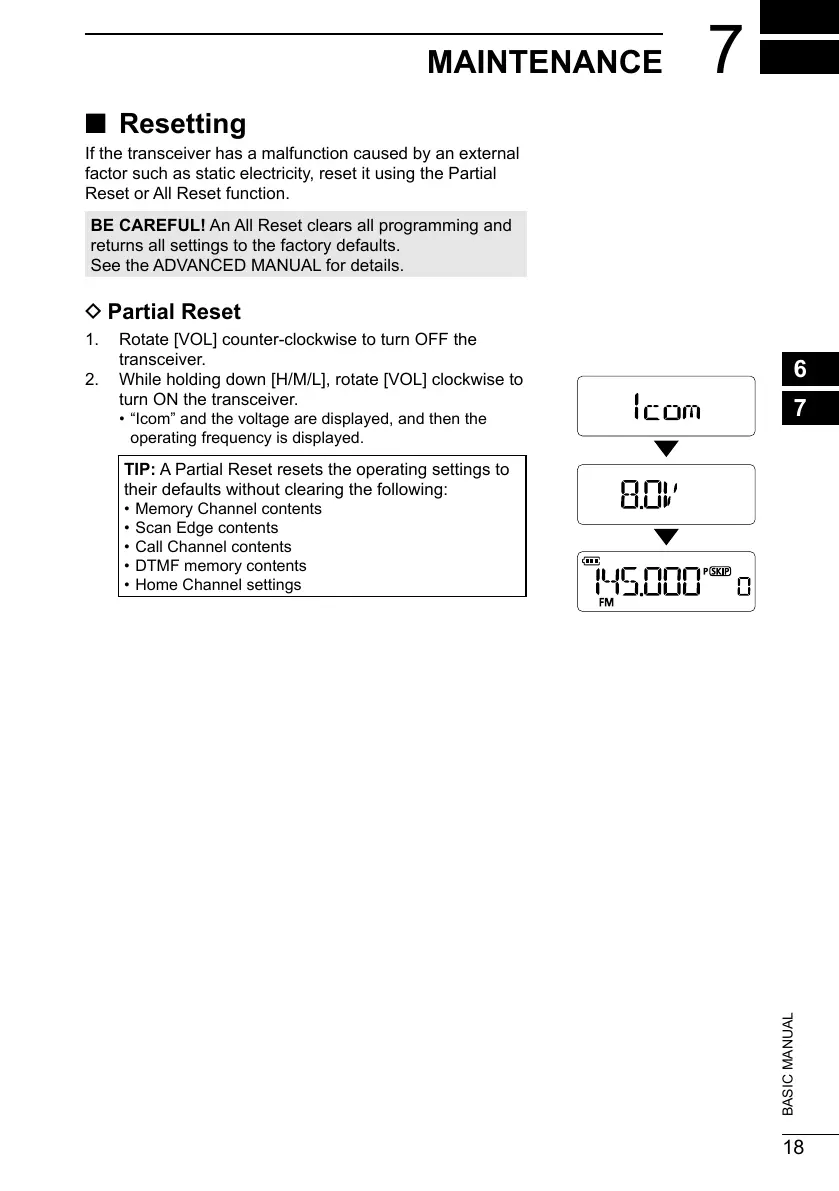

MAINTENANCE
■ Resetting
If the transceiver has a malfunction caused by an external
factor such as static electricity, reset it using the Partial
Reset or All Reset function.
BE CAREFUL! An All Reset clears all programming and
returns all settings to the factory defaults.
See the ADVANCED MANUAL for details.
D Partial Reset
1. Rotate [VOL] counter-clockwise to turn OFF the
transceiver.
2. While holding down [H/M/L], rotate [VOL] clockwise to
turn ON the transceiver.
• “Icom” and the voltage are displayed, and then the
operating frequency is displayed.
TIP: A Partial Reset resets the operating settings to
their defaults without clearing the following:
• Memory Channel contents
• Scan Edge contents
• Call Channel contents
• DTMF memory contents
• Home Channel settings
