Icom IC-UR8050 - Page 11

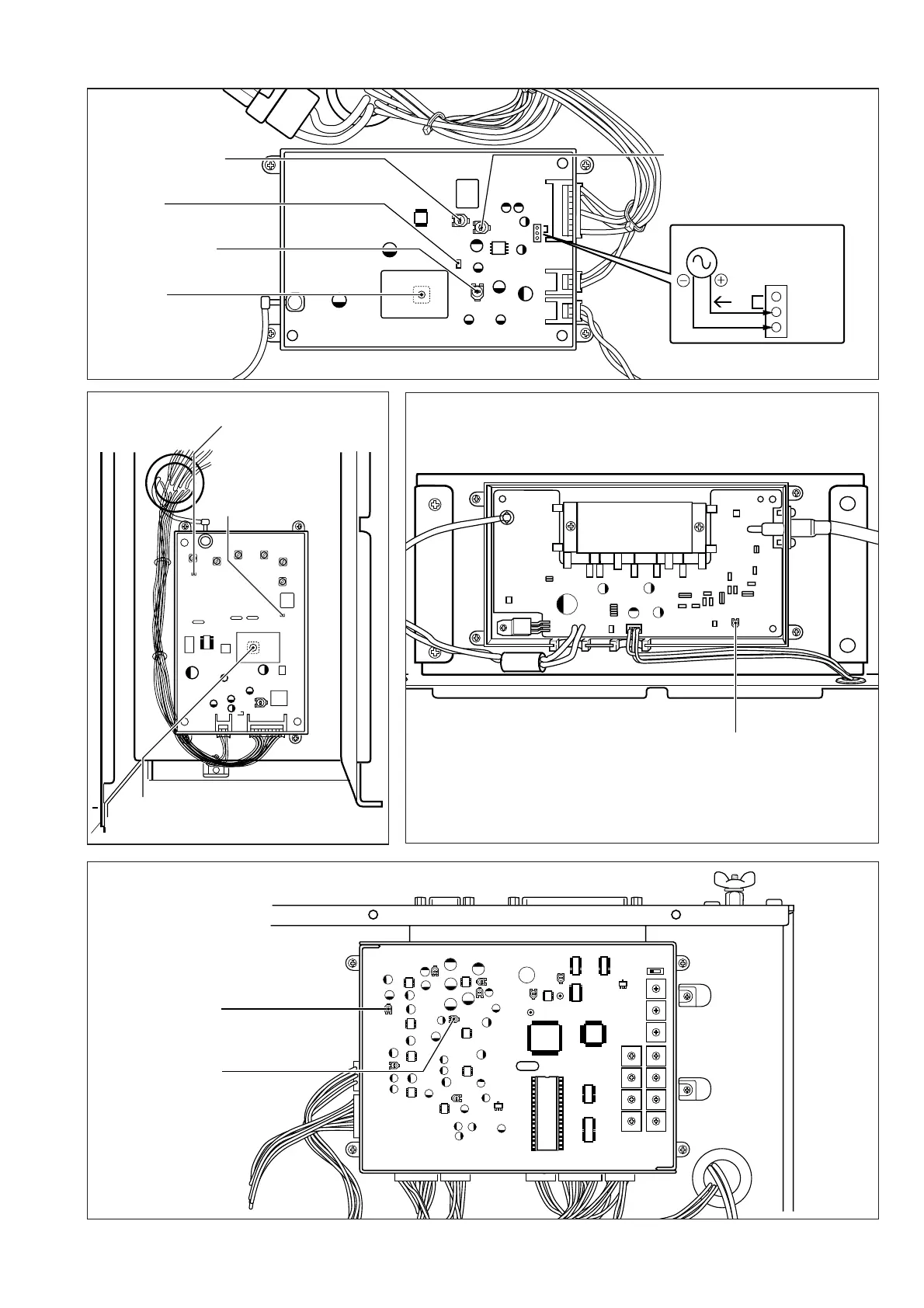

3 - 3
MOD
F.SET
P1
J5
LV
R-MOD
R38 (F–SET)
Reference frequency
adjustment
LV
PLL lock voltage
check point for TX
R50 (MOD)
Maximum deviation
adjustment
J5
Audio generator connect point
1
2 (MOD)
3 (GND)
1 kHz/ 1 V
P1
L3
PLL lock voltage
adjustment for TX
R43 (R–MOD)
Maximum deviation
adjustment
•
TX unit
R16 (Hi)
Output power adjustment
• PA unit
• RX unit
L16
PLL lock voltage
adjustment
F
Reference frequency
check point
LV
PLL lock voltage
check point
R61 (MIC)
Deviation adjustment
(MICROPHONE)
R47 (MOD)
Deviation adjustment
(REPEATER)
• LOGIC unit
