Icom IC-UR8050 - Page 13

3 - 5
R102
R99
J9
ACC (1)
R52 (LI)
ACC input level
adjustment
Regulator output
voltage adjustment
(VD, H)
(VD, L)
R35 (LO)
ACC output level adjustment
R30 (DO)
ACC output level adjustment
R83 (DI)
ACC output level adjustment
R91 (SQL)
Squelch level adjustment
CP2
CP1
Regulator
output
voltage
checkpoints

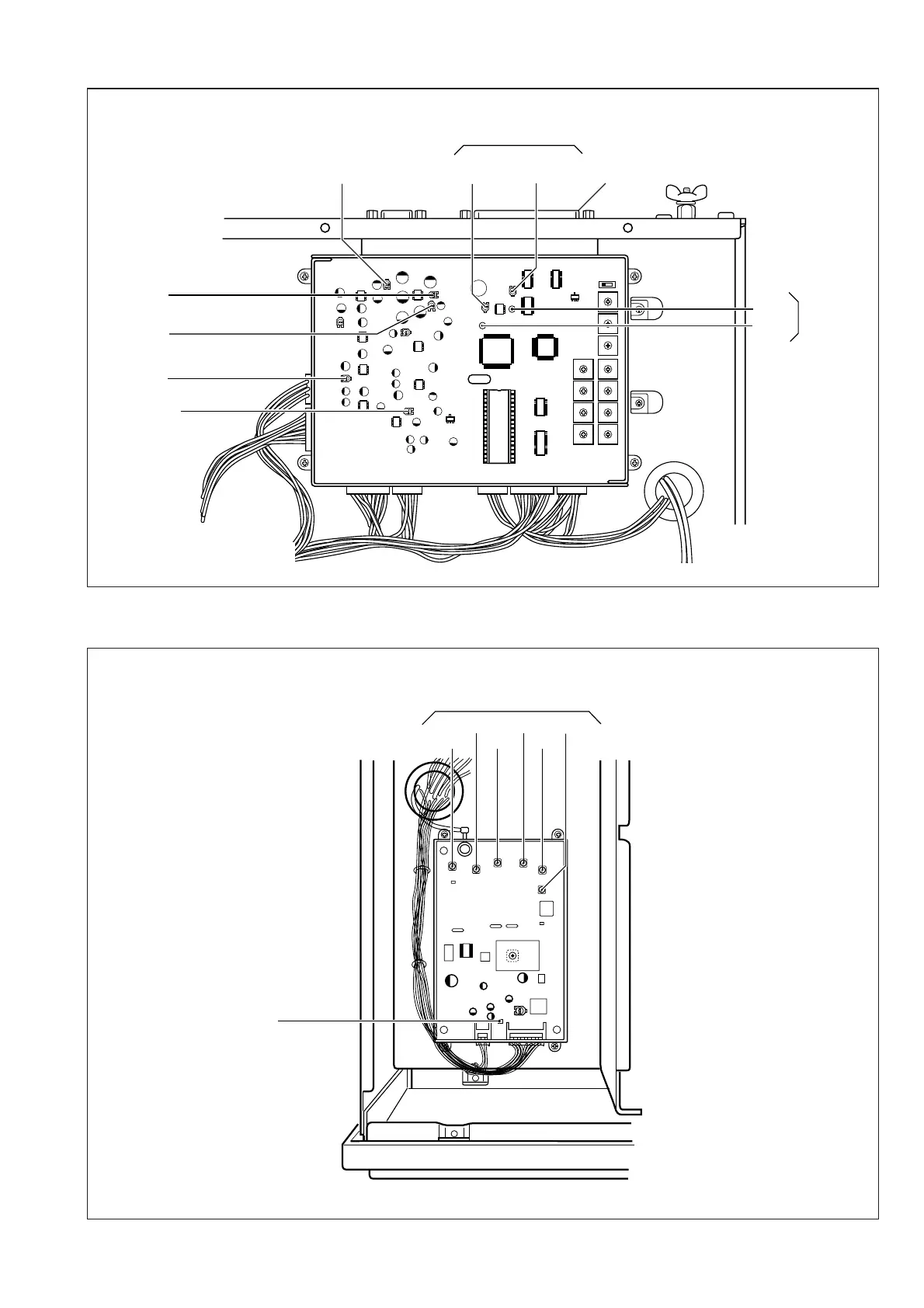

• LOGIC unit
L1
L2
L4
L6
L7
L9
Sensitivity adjustment
S
Tune voltage
check point
• RX unit
