BATTERY CHARGING
D Using the BC-192 to regular charge the BP-264
The BC-192 provides regular charging of the Ni-MH battery pack
(BP-264 only). Never use for any other battery pack.
Charging time for the BP-264 (with the BC-206SE)
: Approximately 16 hours (at 16 V)
The following item is additionally required:
• A power adapter (not supplied with some versions) or the DC
power cable (OPC-515L).
Charging time period differs
depending on the input voltage.
12 V
13.8 V
16 V
: Approx. 36 hours
: Approx. 21 hours
: Approx. 16 hours

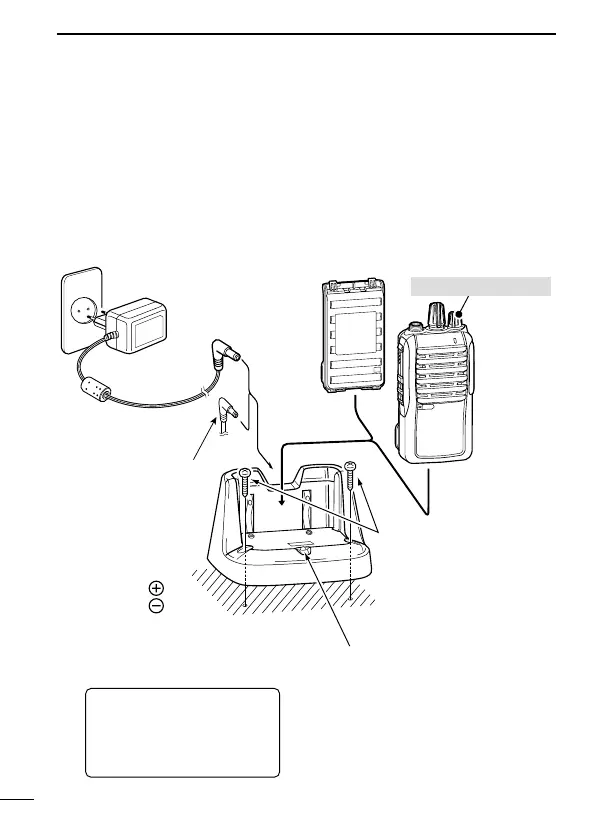

About OPC-515L
White line:
Black line
:
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity.
This will ruin the battery charger.
*
(A different type, or
no power adapter is
supplied, depending
on the version.)
Tu rn OFF the power
Optional OPC-515L*
(for power source)
can be used instead
of the power adapter.
Screws*
( Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
Charge indicator
Lights green while charging.
NOTE:
The charge indicator will not go
out even after a battery pack is
fully charged.
